The complete DIY installation guide for a backyard pondless waterfall — from site selection and excavation through liner installation, pump setup, rockwork, and first fill. One full day. Two people. Running water by evening.
Learning how to build a pondless waterfall is one of the most accessible and most rewarding DIY water feature projects a homeowner can tackle. Unlike a traditional pond, a pondless system requires no open water management, no fish care, no algae treatments, and no seasonal chemical testing — just the sound and movement of cascading water disappearing into a gravel-covered basin and starting the journey again. Two capable adults with the right materials can complete a standard 12–16-inch spillway installation in a single full day.
At Pond Pro Direct, we've supplied pondless waterfall kits and installation guidance to homeowners and professional aquascapers since 2003. The installation details in this guide come from real project experience — the sizing calculations, liner techniques, foam application tips, and test procedures our team uses and teaches every day. Follow this guide from beginning to end and you'll have running water by the time the sun goes down.

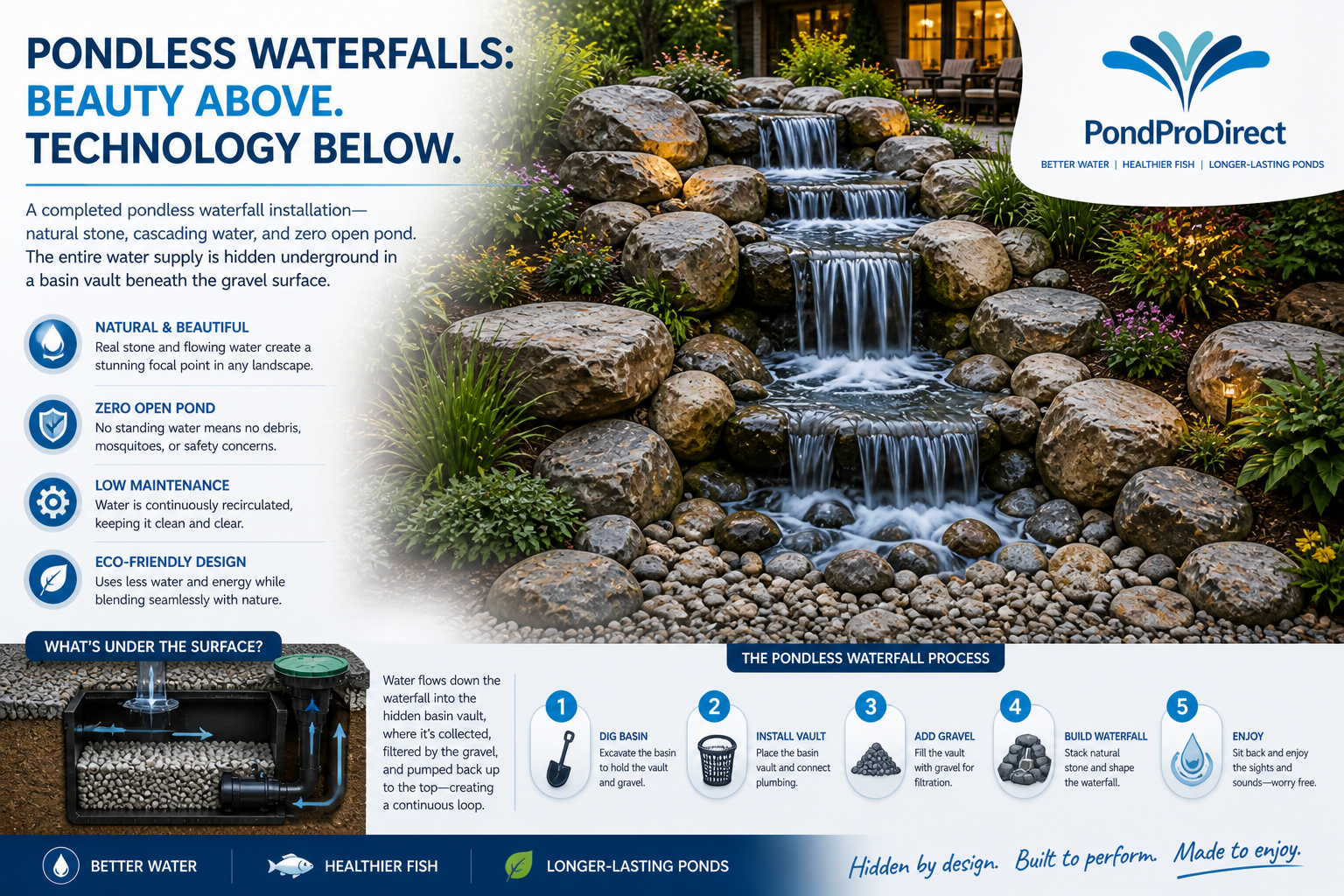

A completed pondless waterfall installation — natural stone, cascading water, and zero open pond. The entire water supply is hidden underground in a basin vault beneath the gravel surface.
Every pondless waterfall installation decision made at the planning stage is free. Every correction made after excavation costs time, money, and effort. Spend 30 minutes on these five questions before a single shovelful of dirt is moved.
Choose a site with a GFCI-protected outdoor electrical outlet within 25 feet of the planned basin location — this is a hard requirement, not a preference. The pump cord cannot be extended with a standard extension cord; it requires a proper outdoor-rated outlet within reach. If your site doesn't have one, budget $200–$600 for a licensed electrician to install a dedicated circuit before starting the build.
Avoid sites directly under deciduous trees — leaf fall clogs the basin grate and pump intake relentlessly. A site with morning sun and afternoon shade is ideal: enough light to enjoy the feature, reduced evaporation in peak summer heat.
The vertical distance from the basin floor to the spillway outlet — your static head height — is the single most important number in pump sizing. Measure it accurately before ordering any equipment. Add 1 foot of friction allowance per 10 feet of tubing run to get your total head height, then size your pump to deliver adequate GPH at that figure. Our complete pond pump guide covers head height calculation in full detail.
Spillway width is the primary visual impact driver. The standard residential sizing formula is 1,500 GPH per foot of spillway width for a satisfying sheet of water; 2,000 GPH per foot for a full curtain effect. A 16-inch (1.33 ft) spillway — the most popular residential choice — requires 2,000–2,700 GPH delivered at your actual head height.
Stream length drives three sizing decisions: liner dimensions, basin volume, and pump GPH. A 10-foot stream channel holds 50–150 gallons of water in transit at any moment — this volume drains back to the basin when the pump shuts off. Your basin must be large enough to absorb this drain-back without overflowing. Always account for stream volume when specifying basin size.
This is not optional and not a formality. Call 811 (US utility notification service) or your local equivalent before any excavation. It is free, typically takes one business day, and results in underground utilities being marked at your site. Striking a buried electrical line or gas pipe is a life-threatening event. Call every time, without exception.
Photograph your marked spray paint outline from an upstairs window before committing to dimensions. Ground-level perspective makes features look 30–40% larger than they read from standing height. The aerial view almost always reveals the feature should be larger — and making that call before excavation costs nothing.
A complete pondless waterfall installation requires the components below. Everything marked Required ships in a pre-matched pondless waterfall kit from Pond Pro Direct — eliminating compatibility guesswork between pump, basin, and spillway specifications. Items marked Recommended are purchased separately and are strongly advised for a professional-quality, long-lasting result.
Aquascape, EasyPro, Atlantic & Blue Thumb kits — pump, basin, spillway, liner, and underlayment matched and ready to install.
Correct sizing — particularly the pump-to-basin relationship — is what separates a pondless waterfall that runs reliably for years from one that burns out a pump in its first summer. Run through this table before finalizing your kit selection.
| Spillway Width | Required GPH (at head) | Min Basin Volume | Min Tubing Dia. | Typical Kit |
|---|---|---|---|---|
| 6 inches | 750–1,000 GPH | 50–75 gal | 1 inch | Starter / accent |
| 12 inches | 1,500–2,000 GPH | 100 gal | 1.5 inch | Standard residential |
| 16 inches | 2,000–2,700 GPH | 165 gal | 1.5–2 inch | Most popular choice |
| 24 inches | 3,000–4,000 GPH | 200–250 gal | 2 inch | Statement feature |
| 36+ inches | 4,500+ GPH | 300+ gal | 2–3 inch | Commercial / premium |
A basin that's 25% oversized costs $50–$80 more and provides meaningful insurance against evaporation losses, pump cavitation on hot days, and stream channel drain-back on pump shutdown. A basin that's undersized by even 10% can burn out a $300 pump in a single afternoon. When choosing between two basin sizes, always select the larger one.
The seven-step installation sequence below reflects the professional workflow our team uses and teaches. Complete each step fully before moving to the next — particularly liner installation, where skipping steps creates problems that are expensive to correct after stone is placed.
Pre-excavation layout with basin location, stream channel, and waterfall head area marked — the planning investment that makes installation day straightforward.
Stake the basin location at the base of the planned waterfall. Mark the waterfall head position at the top. Run a string line between them along the planned stream path. Use spray paint or a garden hose to mark the stream width and basin footprint on the ground. Confirm the total vertical rise from basin floor to spillway outlet — this is your static head height for pump sizing.
Check the site for level: use a spirit level on two stakes with a string line run across the feature footprint. A slope of more than 3% across the feature footprint will require grading before installation. Confirm the GFCI outlet location and measure cord distance. Plan your electrical conduit route for the pump cord before excavation begins — running conduit after the basin and stone are placed is the most common "I wish I had done this earlier" regret from first-time builders.
Run electrical conduit through the excavation zone before the basin vault goes in. Burying a conduit sleeve costs $15 in materials and 20 minutes of time at this stage. Retrofitting electrical access after rockwork is complete costs several hours and significant frustration.
Basin excavation: Dig the basin hole 6 inches larger on all sides than the vault's footprint dimensions, and 6 inches deeper than the vault height. This clearance allows the compacted gravel drainage base and provides settling room. The basin hole bottom must be level — check with a spirit level before proceeding.
Stream channel excavation: Excavate to 8–12 inches deep along the stream path, maintaining a consistent 1–2% slope back toward the basin. A stream channel that holds standing water when the pump is off becomes a mosquito breeding site and algae incubator. The slope ensures complete self-drainage on pump shutdown.
Waterfall head area: Build up the waterfall head area using excavated soil or imported compacted fill, creating a stable mound at the elevation required for your planned waterfall height. The spillway box will sit on this mound — it must be stable, compacted, and level side-to-side.
Add 2–3 inches of compacted 3/4-inch gravel to the basin hole floor. Tamp firmly — this drainage base prevents vault settling after installation. Set the basin vault on the gravel, centered in the hole. Confirm the vault is level in all four directions using a spirit level across the top grate surface. Adjust gravel depth as needed to achieve level.
For modular vault systems (Aquascape's Pondless Waterfall Vault is the standard), confirm interlocking connections are fully seated. Route your electrical conduit sleeve through the gravel backfill zone at this stage. Backfill the 6-inch gap around the vault walls with the excavated soil, tamping in layers to prevent vault displacement under stone loading.
Aquascape's Pondless Waterfall Vault is rated to support up to 3,000 lbs of stone and gravel loading on the grate surface — the specification that matters when you're placing heavy boulders directly above the basin. Always confirm your vault's load rating before placing large stone over the grate. Vaults without load ratings should not have boulders placed directly on the grate surface.
Underlayment first: Drape 8-oz geotextile underlayment loosely across the entire excavation — basin hole, stream channel, and waterfall face. Overlap seams by at least 12 inches. Do not pull the underlayment tight; let it conform naturally to the terrain contours. Secure edges temporarily with stones while positioning the liner.
Liner installation: Unfold the EPDM liner on a warm day — above 60°F if possible; cold liner is stiffer and creates more wrinkles. Have both helpers hold the liner at opposite ends and lower the center down into the basin area first, then ease the fabric along the stream channel, working toward the waterfall head. Form neat accordion folds at inside corners rather than pulling the liner tight across them — stress at corners is where liner failures originate.
Basin overlap: Tuck the liner into the basin vault, overlapping all four vault walls by at least 6 inches. This overlap creates the continuous watertight path from the waterfall face down the stream channel and into the basin. Secure with the vault grate weighted temporarily.
Pump placement: Place the submersible pump in its protective pump vault cage and lower it into the basin vault. The pump vault cage keeps gravel and debris away from the impeller intake — a critical protection that extends pump life significantly.
Tubing run: Connect flexible PVC tubing to the pump outlet. Run the tubing up behind the waterfall face, keeping it beneath the liner wherever possible to conceal it. Minimize bends and use sweeping curves rather than sharp 90° elbows — each elbow adds friction resistance equivalent to approximately 1 foot of head height. Use the conduit sleeve if installed in Step 1.
Check valve installation: Install the check valve in the tubing run between the pump and the spillway, with the flow direction arrow pointing toward the spillway outlet. This is a non-negotiable component — without it, the entire tubing volume drains back to the basin on pump shutdown, causing overflow when the pump restarts and adding stress to the pump motor at each startup.
Spillway mounting: Mount the spillway box on the waterfall head mound. Use a torpedo level across the weir lip — it must be perfectly level side-to-side. Even a 1/4-inch tilt concentrates flow noticeably to the low side, making the waterfall look lopsided. Connect the tubing to the spillway inlet and confirm the connection is seated and clamped.
The technical components of a pondless waterfall determine whether it works. The rockwork determines whether it's beautiful. Professional-quality stone placement follows consistent principles that any DIY builder can apply.
Start with the largest flat-faced stone directly beneath the spillway outlet — this capstone receives the most water flow and sets the character of the entire falls. Use flat-bottomed stones that sit stable without wobbling; round stones shift under water pressure and foot traffic. Work from the spillway downward, setting stones in a descending step sequence with each stone overlapping the liner edge of the stone below it.
Apply black waterfall foam sealant between each stone on the waterfall face before placing the next stone above it. Foam fills the gaps that would otherwise allow water to seep behind the stone rather than flowing over its face. This single technique is the most impactful difference between a professional-looking waterfall and an amateur one — a well-foamed waterfall runs a full, even sheet of water across every stone face; an unfoamed one drips inconsistently and loses volume to hidden channels behind the rockwork.
Set boulders along both stream channel edges to contain the flow and create visual depth. Vary stone sizes deliberately — alternate large, medium, and small stones rather than running similarly sized stones in a line. Use odd-numbered groupings of three or five at feature points; even numbers read as manufactured rather than natural.
Spread 3–4 inches of washed pea gravel over the basin grate, working outward from the center. Set feature boulders around the basin perimeter to frame the "disappearing" effect. Keep the pump vault access point clear — mark its location relative to a visible feature stone so you can locate it for future maintenance without disturbing the entire gravel surface.
With all stone in final position, trim the liner edges leaving a 12-inch overlap tucked beneath edge stones on all sides. Never trim flush with the stream edge — water wicks through capillary action and will drain continuously at a flush-cut liner edge. The 12-inch underlap beneath edge stone is structural, not decorative.
The first fill and test is done before placing final stone — not after. Discovering a spillway level problem or a tubing leak is a 10-minute fix before stone is placed and a multi-hour disassembly job afterward.
First fill and system test — confirming even spillway distribution before placing final stone. This is the most important quality check in the entire installation and takes 15 minutes to do correctly.
A correctly installed pondless waterfall is genuinely low-maintenance. Here is the complete maintenance calendar, organized honestly by time commitment:
In over two decades of supplying pondless waterfall kits and supporting DIY installations, these are the errors our team sees most consistently — and how to avoid each one.
Pre-matched pump, basin, spillway, liner, and underlayment from Aquascape, EasyPro, Atlantic & Blue Thumb.
A pondless waterfall is one of the most achievable and most rewarding DIY water feature projects available to a motivated homeowner. The technical demands are modest, the materials are clearly defined, and the payoff — the sound of moving water in your yard, every morning and every evening — is immediate and lasting.
The keys to a successful build are the same seven things covered in this guide: a correctly sized pump rated at actual head height, a basin sized above the pump's flow rate, underlayment without exception, a properly installed check valve, waterfall foam on every stone joint, a level spillway, and a test-before-stone-placement discipline that catches problems when they're still cheap to fix. Follow those seven principles and you'll build a feature that runs cleanly, looks professional, and requires less than 30 minutes of monthly attention for years to come.
