The exact formula for calculating pond liner size, a worked example for every common pond dimension, what to add for waterfalls and streams, and the five sizing mistakes that turn a weekend build into a costly do-over.
Quick Reference — Pond Liner Sizing
Getting pond liner sizing wrong is the most expensive mistake a first-time pond builder makes — and the most preventable. An undersized liner cannot be stretched to fit; you drain the pond, remove the stone, and start over. An oversized liner is only $30–$80 extra and trims to size in minutes. This guide gives you the exact formula, a complete size chart for every common pond dimension, and the five mistakes that create do-overs — so you buy the right liner the first time.
Pond Pro Direct has been helping customers size and select liners for custom pond builds since 2003. The guidance in this guide comes from real installation experience across hundreds of projects, not from manufacturer marketing copy. We carry 45-mil EPDM pond liners from EasyPro (DuraLiner) and Carlisle (AquaTough) — the two highest-quality residential liner brands available — in all standard sizes with free shipping on orders over $99.
The liner is the only component of your pond that cannot be upgraded, replaced, or supplemented once the pond is full of water, rocks, and fish. The pump, filter, and lighting can all be swapped mid-season with minimal disruption. The liner cannot — a full drain, stone removal, and reinstallation typically takes a full weekend and costs the same as building the pond the first time.
Liner sizing errors fall into two categories. The first is calculating the liner dimensions without accounting for depth — treating the liner as if it only needs to cover the top surface area of the pond. This produces a liner that fits the bottom but runs out of material before reaching the edges, forcing a restart. The second is buying a liner the right size on paper but not accounting for the actual post-excavation dimensions, which routinely run larger than planned dimensions by 6–12 inches per side in softer soils.
The formula below eliminates both errors. Use it. Do not estimate, do not eyeball, and do not assume the liner that came with your pond kit is sized for a deeper excavation than the kit specifies.
The standard pond liner size formula is the same formula used by professional pond installers, manufacturer engineers, and every competent pond kit specification on the market. It is not complicated — but both terms must be understood correctly to avoid the most common sizing error.
Pond Length and Pond Width: These are the surface water dimensions of your planned pond — the length and width at the waterline, not the footprint of the excavation. If your excavation has plant shelves around the perimeter (which it should), the surface water dimension is the inner dimension at the top of the shelf, not the outer edge of the excavation.
2 × Depth: The depth term is multiplied by two because the liner descends the full depth on one side of the pond and ascends the full depth on the opposite side. For a pond that is 2 feet deep, you need 2 feet of liner on the way down and 2 feet on the way up — 4 additional feet per dimension, applied independently to length and width. This is the term that first-time builders most commonly omit or halve.
+ 2 feet (the overlap allowance): This 2-foot addition provides 1 foot of liner extending beyond the pond edge on each side — material used to bury under edging stones, wrap around the skimmer faceplate, or tuck under the soil perimeter berm. One foot per side is the minimum. In complex builds with tall waterfalls or irregular shapes, use 1.5 feet per side (3 feet total) for added security.

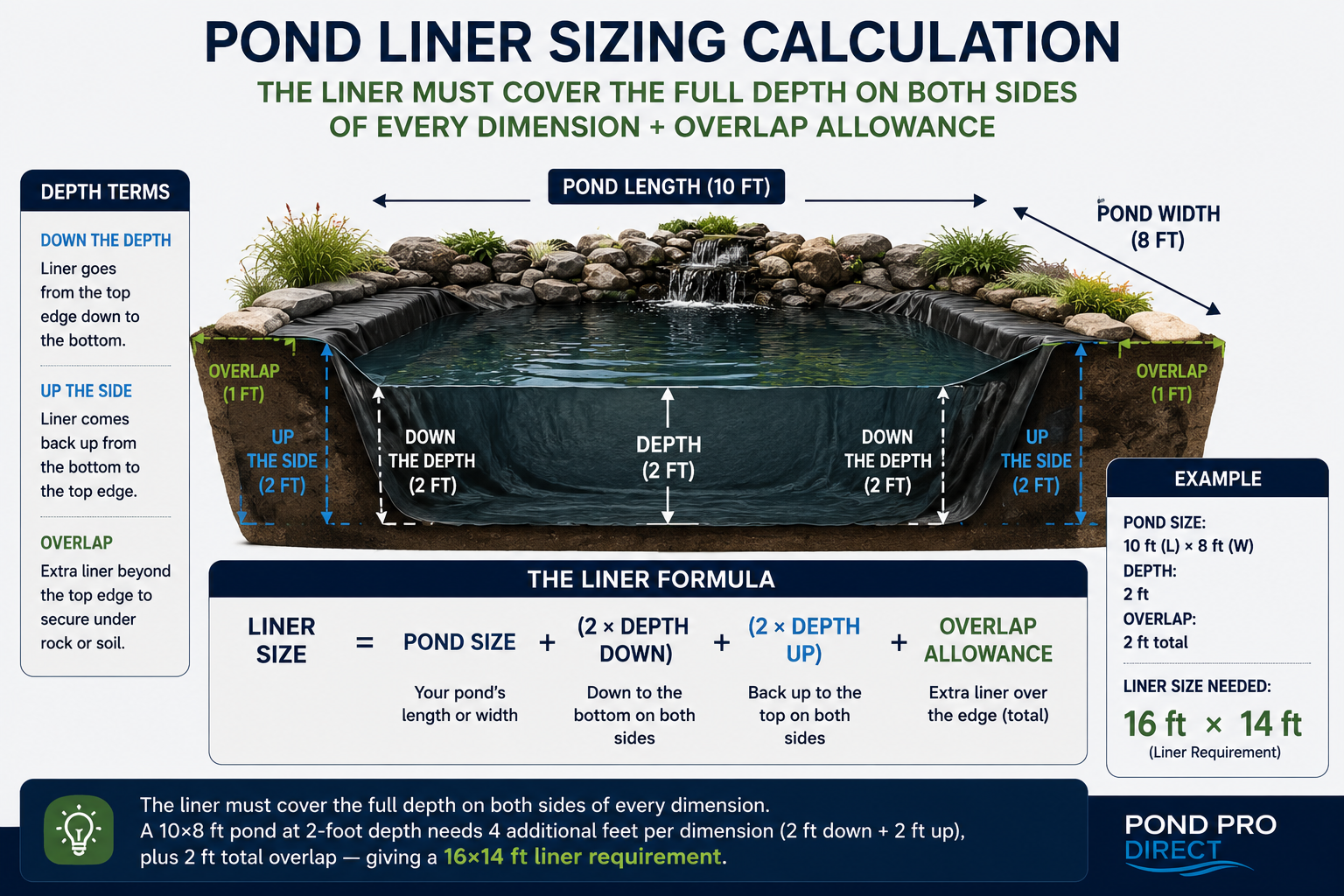

The liner must cover the full depth on both sides of every dimension. A 10×8 ft pond at 2-foot depth needs 4 additional feet per dimension (2 ft down + 2 ft up), plus 2 ft total overlap — giving a 16×14 ft liner requirement.
Apply the formula to three common pond scenarios so you can see each term in context before using the size chart below.
This is the most common pond kit size range — the Aquascape 99765, EasyPro ES811FB, and Atlantic PK191515 are all built around approximately this footprint.
Liner Length = 11 + (2 × 2) + 2 = 11 + 4 + 2 = 17 ft
Liner Width = 8 + (2 × 2) + 2 = 8 + 4 + 2 = 14 ft
Liner needed: 17 × 14 ft. The next available standard size up from Pond Pro Direct: 20×15 ft. Buy the 20×15 — the extra 3 ft in length gives you generous overlap for the skimmer installation and any shape adjustment during excavation.
Koi ponds require a minimum 3-foot depth for predator protection and temperature stability. The depth term increases significantly — use 3 ft in the formula.
Liner Length = 16 + (2 × 3) + 2 = 16 + 6 + 2 = 24 ft
Liner Width = 12 + (2 × 3) + 2 = 12 + 6 + 2 = 20 ft
Liner needed: 24 × 20 ft. The 20×25 ft liner from Pond Pro Direct (Carlisle AquaTough or EasyPro DuraLiner) covers this calculation with adequate overlap. Note how the 3 ft depth adds 6 ft to each dimension — koi ponds always require more liner than a surface-area comparison suggests.
The most common small kit footprint — equivalent to the Aquascape 99764.
Liner Length = 8 + (2 × 2) + 2 = 8 + 4 + 2 = 14 ft
Liner Width = 6 + (2 × 2) + 2 = 6 + 4 + 2 = 12 ft
Liner needed: 14 × 12 ft. The 15×12 or 15×15 ft boxed liner is the right purchase. The Aquascape 99764 ships with a 10×12 liner — verify depth: that liner is sized for the kit's specified 2 ft maximum depth and the kit's stated pond dimensions, not for any custom excavation that goes deeper or wider.
Use this reference chart for the most common residential pond sizes. All calculations use the standard formula with 1 ft overlap per side. The "Buy This Size" column shows the standard pre-cut liner size to purchase when the exact calculated dimension is not available.
| Pond Size (ft) | Depth | Liner Needed | Buy This Size | Volume (approx.) |
|---|---|---|---|---|
| 4 × 6 | 2 ft | 10 × 12 ft | 10 × 12 ft | ~250 gal |
| 6 × 8 | 2 ft | 12 × 14 ft | 12 × 15 ft | ~500 gal |
| 8 × 11 | 2 ft | 14 × 17 ft | 15 × 20 ft ★ | ~1,000 gal |
| 10 × 14 | 2 ft | 16 × 20 ft | 20 × 20 ft | ~1,600 gal |
| 11 × 11 | 2 ft | 17 × 17 ft | 20 × 20 ft | ~1,400 gal |
| 11 × 16 | 2 ft | 17 × 22 ft | 20 × 25 ft | ~2,000 gal |
| 12 × 16 | 3 ft (koi) | 20 × 24 ft | 20 × 25 ft | ~3,200 gal |
| 16 × 21 | 2 ft | 22 × 27 ft | 25 × 30 ft | ~3,800 gal |
| 16 × 16 | 3 ft (koi) | 24 × 24 ft | 25 × 25 ft | ~4,300 gal |
★ Most common first pond size. Volume estimates at standard 2-foot average depth with typical plant shelving allowance. Always measure your post-excavation dimensions — planned and actual dimensions routinely differ by 6–12 inches in softer soils.
Waterfall and stream liners are sized and purchased separately from the main pond liner. They cannot be sized from the same sheet without seaming — and while EPDM seaming is reliable and permanent, calculating a single liner that covers both the pond and an attached stream creates unnecessary complexity and usually results in an awkwardly large liner that is difficult to handle during installation.
For a stream or waterfall run, the liner dimensions are calculated independently:
The 2-foot addition to stream length accounts for the liner overlap needed at the top of the stream where it connects to the biofilter housing — you need this extra material to wrap up and behind the biofilter faceplate for a watertight seal. At the pond end, the stream liner overlaps into the pond liner by approximately 6 inches and is tucked beneath it to direct water into the pond without escaping under the stream edge.
For stream runs over 10 feet, buy the stream liner in a single continuous piece rather than seaming shorter pieces. Every seam is a potential failure point, particularly in streams where water movement constantly stresses the joint. A single-piece stream liner adds cost but eliminates the most common source of stream-related water loss. Our liner collection includes roll stock for custom-length stream liner cuts — call us for a quote on non-standard dimensions.
Koi ponds require a minimum depth of 3 feet — 2 feet at the plant shelves around the perimeter, with a central zone of 3 to 4 feet. The depth term in the formula is the maximum depth of the pond, not the average. For a koi pond with a 3-foot central zone, use 3 feet in the formula for every dimension — even though the plant shelf areas are shallower.
This is not conservative padding. A 3-foot-deep koi pond with a 12×16 ft surface requires a 20×24 ft liner (see chart). A builder who estimates based on average 2-foot depth and buys a 16×20 liner will run out of material 2 feet short on every side when the liner is draped into the 3-foot deep center zone. The pond cannot be filled, the liner cannot be extended, and the entire build restarts with a new liner purchase.
Never use average depth in the liner formula — always use maximum depth. The liner must reach the deepest point in the pond from every direction. If your pond has a 3-foot deep zone in the center and 12-inch plant shelves around the perimeter, the liner calculation uses 3 feet for depth, not 2 feet or 1.5 feet. The plant shelves are shallower, but the liner descends to the maximum depth before ascending the opposite side — and that full descent-and-ascent path is what the formula must account for.
The answer for any permanent pond is 45-mil EPDM. This is not a matter of significant debate among professional pond builders — PVC liners have a use case (temporary installations, raised container ponds, situations where liner replacement is anticipated within 3–5 years) but they are not suitable for permanent in-ground pond construction. Here is why.
PVC liners contain plasticizers — chemical additives that make the material flexible at room temperature. These plasticizers leach out of the PVC over time, particularly under UV exposure and elevated temperatures. As they leach, the liner becomes progressively less flexible, then brittle, then prone to cracking under the weight of pond water and stone. This process typically becomes visible within 3–7 years of installation. The replacement cost — drain, remove stone, remove old liner, install new liner, reinstall stone, refill — is typically greater than the cost of simply buying the 45-mil EPDM liner from the start.
EPDM (ethylene propylene diene monomer) does not contain plasticizers. Its flexibility is inherent to the polymer chemistry rather than added through a compound that can leach. It remains flexible across a temperature range of -40°F to 175°F, resists UV degradation, ozone, and biological breakdown, and is fish-safe and plant-safe from the day of installation. EPDM pond liners from reputable manufacturers come with 20-year warranties as standard; Carlisle's AquaTough carries a lifetime limited warranty with registration.
EasyPro DuraLiner and Carlisle AquaTough in stock — standard boxed sizes and custom roll stock. Free shipping on orders over $99.
45-mil EPDM pond liner installation — the liner is draped from the pond edge over the plant shelves and into the deep zone before filling. Note the non-woven geotextile underlayment visible beneath the liner on the left shelf, protecting against root and stone puncture.
Geotextile underlayment goes beneath the liner and, optionally, above it where heavy decorative stone will be placed inside the pond. Its purpose is simple: cushion the 45-mil EPDM against the sharp stones, glass fragments, and tree roots that exist in virtually every native soil installation site, and eliminate the point-load stress that causes premature liner failure.
The value proposition of underlayment is straightforward. A 10×15 ft underlayment sheet typically costs $40–$80. A pond liner replacement — drain, stone removal, liner replacement, stone reinstallation, refill — typically costs $400–$800 in materials and a full weekend of labor. Underlayment is not optional for any in-ground pond installation on native soil. Size it identically to your liner.
For any area inside the pond where you plan to place heavy decorative boulders or large stones directly on the liner surface, install a second layer of underlayment above the liner before placing the stone. Stone edges — particularly angular fieldstone and split-face boulders — concentrate enormous pressure on the liner surface over time. A second underlayment layer above the liner in stone placement areas reduces this load and is strongly recommended for any pond with boulders heavier than 40–50 pounds.
Your excavation will not match your plan exactly. Soil slips, shelves come out wider than marked, and the actual deep zone ends up slightly larger than designed. Always measure the actual excavation — length, width, and actual maximum depth — before ordering the liner. Excavate first, measure second, order third.
The depth term in the formula is multiplied by 2 for a reason: the liner descends to full depth on one side of the pond and ascends to full depth on the other. Applying depth only once produces a liner that is short by exactly the pond depth on every side. This is the most common calculation error and always results in a restart.
Plant shelves are typically 8–12 inches deep. The pond body is typically 18–24 inches (or 36 inches for koi). The formula requires the maximum depth — the liner must reach the deepest point from every direction. Using average depth produces a liner that runs out of material at the deep zone.
When a calculation falls between two available liner sizes, always buy the larger. A liner that is 2 feet too large per dimension can be trimmed during installation in 10 minutes. A liner that is 6 inches too small cannot be stretched — it goes back in the box and you order the larger size anyway, now with a two-day shipping delay mid-build.
A stream or waterfall run requires its own liner calculated separately. Trying to extend the pond liner to cover a stream run by buying a single oversized sheet creates handling problems during installation, wastes expensive liner material, and results in messy folds at the pond-stream junction that are difficult to seal. Buy the pond liner and the stream liner as separate pieces.
Both liner brands in our catalog are correct specifications for residential pond construction. The choice between them comes down to three factors:
Browse the full pond liner collection at Pond Pro Direct, or see our individual product pages for the EasyPro BPL2020 20×20 ft liner and Carlisle AquaTough 20×25 ft liner for detailed specification sheets.
A completed pond installation with the 45-mil EPDM liner correctly sized — the liner edge is visible tucked neatly beneath the stone coping, with adequate overlap (approximately 12 inches) extending under each edging stone for a secure, leak-free perimeter seal.
The standard pond liner sizing formula is: Liner Length = Pond Length + (2 × Maximum Depth) + 2 feet, and Liner Width = Pond Width + (2 × Maximum Depth) + 2 feet. Apply the formula to each dimension independently. The depth term is doubled because the liner descends one side and ascends the other. The 2-foot addition provides 1 foot of edge overlap per side. Example: a 10×8 ft pond at 2 ft depth needs (10 + 4 + 2) × (8 + 4 + 2) = 16 × 14 ft liner. Always round up to the next available size.
45-mil EPDM is the industry standard for any permanent residential pond. It provides excellent puncture resistance, remains flexible from -40°F to 175°F, is fish-safe and plant-safe, and carries a 20-year warranty (or lifetime warranty in the case of Carlisle AquaTough). Thinner PVC liners (typically 20–30 mil) are not recommended for permanent ponds — they contain plasticizers that leach out over time, causing the liner to become brittle and eventually crack. For any pond intended to last 10 or more years, 45-mil EPDM is the correct specification.
Yes — underlayment is strongly recommended for any pond installed on native soil. A non-woven geotextile underlayment provides three functions: it cushions the liner against sharp stones, glass, and roots; it allows ground gases to escape, preventing bubbling under the liner; and it significantly extends liner lifespan by reducing point-load stress on the EPDM surface. Size the underlayment identically to your liner. Underlayment can also be placed above the liner in areas where heavy decorative boulders will be placed inside the pond.
Waterfall and stream liners are sized and purchased separately from the main pond liner. For a stream run: Liner Width = Stream Width + (2 × Stream Depth) + 2 ft. Liner Length = Stream Length + 2 ft (for the connection overlap at the biofilter header). For a typical 18-inch-wide, 6-inch-deep stream: Width = 1.5 + (2 × 0.5) + 2 = 4.5 ft. Purchase the next available liner width larger than your calculation. For stream runs over 10 feet, buy a single continuous piece rather than seaming shorter sections.
45-mil EPDM is the industry standard for permanent ponds: flexible from -40°F to 175°F, no plasticizers (so no brittleness with age), UV and ozone resistant, fish-safe, plant-safe, and backed by 20-year or lifetime warranties. It can be repaired with EPDM seaming tape. PVC liners contain plasticizers that leach out with UV and heat exposure, causing brittleness and cracking — typically within 3–7 years in outdoor installations. For any pond intended to last more than a few seasons, EPDM is the only practical choice. PVC is appropriate only for temporary installations where liner replacement is anticipated within 3–5 years.
Yes. EPDM pond liners can be seamed together to cover ponds larger than any single available liner sheet. The standard process uses EPDM seam primer applied to both surfaces, followed by double-sided EPDM splicing tape pressed firmly to create a chemical bond. Allow a minimum 3-inch overlap on seamed sections. Do not seam in temperatures below 40°F — the adhesive bond requires warmth to cure properly. A correctly executed EPDM seam is as strong as the liner itself. Contact Pond Pro Direct for compatible seaming materials for EasyPro DuraLiner and Carlisle AquaTough.
Pond liner sizing is one of the few pond building decisions where getting it right costs nothing extra and getting it wrong costs everything. Apply the formula to your post-excavation dimensions — not your planned dimensions — use the maximum depth, account for stream liner separately, and always buy the next size up when your calculation falls between available sizes.
For most residential pond builds in the 8×11 to 16×21 ft range, both EasyPro DuraLiner and Carlisle AquaTough at 45 mil are excellent choices that will outlast the rest of the pond system if properly installed with underlayment beneath. The warranty difference — 20 years vs. lifetime — is worth the price premium for large builds where a liner replacement would be a major undertaking.
Need help calculating liner size for your specific project? Call or text our team at (765) 508-4352, Monday through Friday, 9AM–5PM EST. We size liners for custom builds every day and can confirm your calculation before you place the order.
