Everything you need to know to select the right pump for your pond — from flow rate formulas and head height calculations to pump types, energy efficiency, and brand-by-brand recommendations.
Knowing how to choose a pond pump is the most technically consequential decision in any backyard pond build. Choose correctly and your pond runs crystal clear with minimal intervention for years. Choose incorrectly — undersized, overpowered for the head height, or wrong pump type for the application — and you're fighting green water, stressed fish, and premature motor failure within a single season.
At Pond Pro Direct, we've helped homeowners and professional installers spec pond pumps across every application since 2003 — from 300-gallon patio water gardens to 15,000-gallon koi systems. The single most common and most consequential mistake we see is buyers selecting a pump based on its open-flow GPH rating rather than its performance at actual head height. This guide fixes that — and every other pond pump sizing decision — with the formulas, comparisons, and brand-specific guidance you need to buy right the first time.

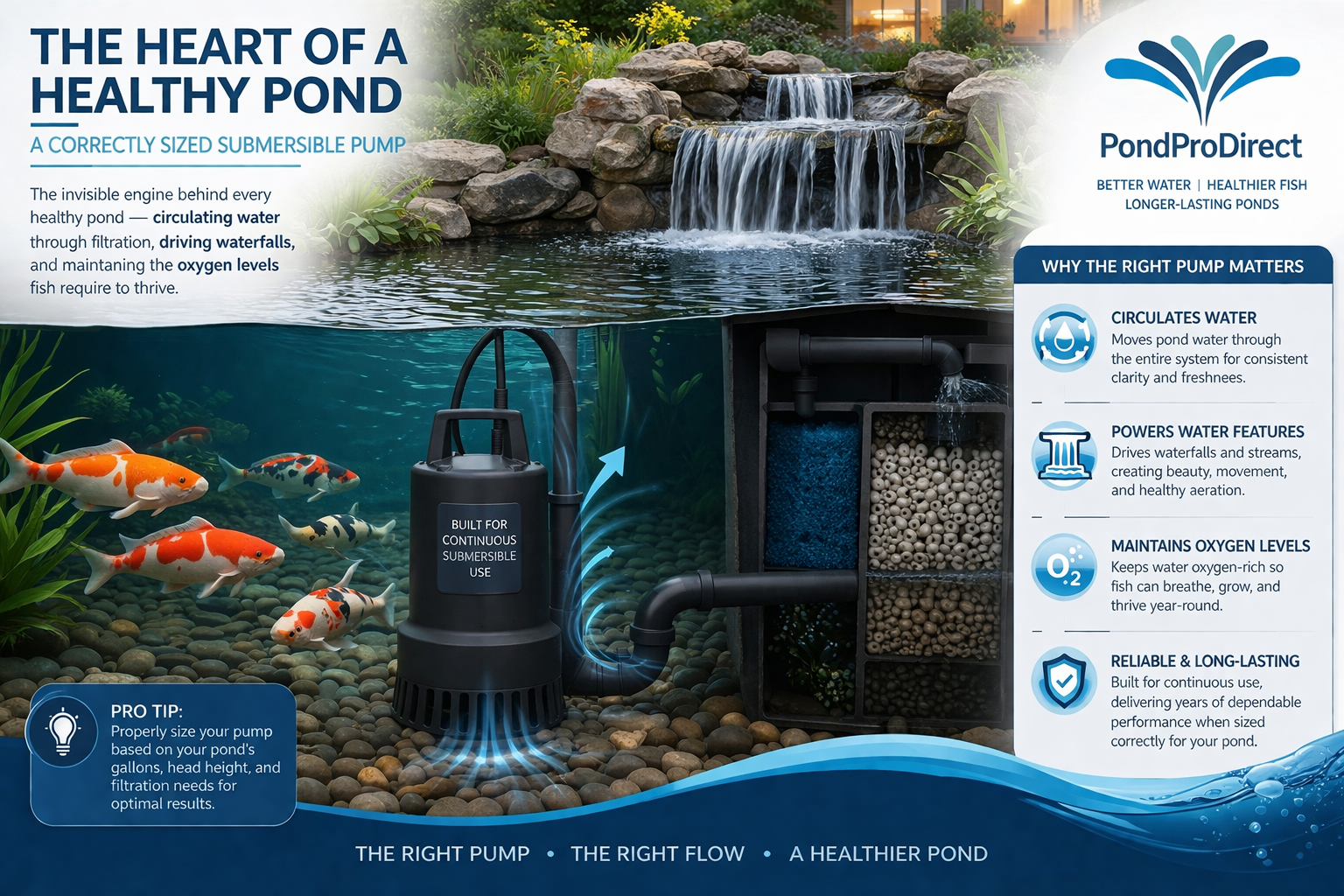

A correctly sized submersible pump is the invisible engine behind every healthy pond — circulating water through filtration, driving waterfalls, and maintaining the oxygen levels fish require to thrive.
Every living element of your pond — fish, beneficial bacteria, aquatic plants — depends on the pump to function. It drives oxygenation, powers biological filtration, prevents thermal stratification, and keeps the water moving that mosquitoes need to be still to breed in. A pond without a running pump is not a pond in any meaningful sense; it is a stagnant container that will turn green, smell, and kill fish within days in warm weather.
But the pump's role goes beyond simply being present and running. An undersized pump circulates insufficient water volume through your filter, allowing ammonia to accumulate between filtration cycles. An oversized pump for a small pond creates excessive turbulence that stresses fish, uproots plants, and wastes electricity. Pump type mismatch — running a sump pump in continuous aquatic service, for example — results in motor burnout within weeks and potential contamination of fish water from lubricant leakage.
Getting pond pump selection right is not complicated once you understand three concepts: GPH, head height, and turnover rate. Everything else flows from those three numbers.
GPH — gallons per hour — is the measure of how much water a pump moves in one hour. It is the primary specification you'll see on every pump listing and the starting point for every sizing calculation. Understanding what GPH actually means in practice, and critically what it doesn't tell you on its own, is the foundation of making a smart pump purchase.
GPH measures volumetric flow rate under specific conditions. The number printed on the box — "3,500 GPH" — is almost always the open-flow rating: the maximum flow rate when the pump encounters zero resistance, pumping water horizontally with no vertical lift and no tubing friction. In a real pond installation, neither condition exists. Your pump always lifts water some vertical distance and always pushes it through tubing of finite diameter. Real-world GPH is always lower than open-flow GPH — often dramatically so.
The foundational pond pump sizing rule is the turnover rate: how often your pump moves the complete pond volume through filtration per hour.
This means a 1,500-gallon koi pond needs a pump delivering at least 3,000 GPH at your actual head height — not 3,000 GPH open flow. The distinction matters more than most buyers realize, and we'll quantify it precisely in Section 3.
A pump marketed as "3,500 GPH" may deliver fewer than 1,800 GPH at 5 feet of head height — a reduction of nearly 50%. If you size a koi pond pump based on the open-flow number on the box without checking the performance curve at your head height, you may be running a pond at half the filtration capacity you think you have. Every pump listing on Pond Pro Direct includes full performance curves at multiple head heights for exactly this reason.
Head height is the single most misunderstood variable in pond pump selection — and the one that causes the most expensive mistakes. Understanding it fully before you buy is worth more than any other single piece of advice in this guide.
Head height (also called total dynamic head or TDH) is the total resistance a pump must overcome to move water from the intake to the discharge point. It is measured in feet and includes two components:
How to Calculate Your Total Head Height
To make this concrete, here is how a representative 2,500 GPH open-flow submersible pump — a common specification for medium family ponds — actually performs across head heights:
| Head Height | Actual GPH Delivered | % of Open-Flow Rating | Sufficient For |
|---|---|---|---|
| 0 ft (open flow) | 2,500 GPH | 100% | Label claim only |
| 2 feet | 2,100 GPH | 84% | Low-profile feature |
| 4 feet | 1,700 GPH | 68% | Average waterfall install |
| 6 feet | 1,200 GPH | 48% | Tall waterfall |
| 8 feet | 650 GPH | 26% | Near max head — minimal flow |
| 10 ft (max head) | 0 GPH | 0% | Pump stalls entirely |
Performance figures are representative of a typical 2,500 GPH magnetic drive submersible pump. Actual curves vary by model — always consult the specific pump's performance data before purchasing.
When your required GPH at actual head height falls between two pump models, always select the larger pump and use a flow valve to reduce output if needed. A flow valve on an oversized pump costs $8–$15 and gives you precise control. An undersized pump cannot be adjusted upward — it simply delivers insufficient filtration and cannot be fixed without buying a new pump.
With GPH and head height understood, here is the complete sizing process our team uses for every pump recommendation we make.
Rectangle: L(ft) × W(ft) × D(ft) × 7.48 | See our complete pond sizing guide for all shapes
Water garden: Volume × 1 | Goldfish pond: Volume × 1.5 | Koi pond: Volume × 2
Static head (ft) + friction allowance (1 ft per 10 ft tubing + 1 ft per elbow)
Use the pump's performance curve at your Step 3 head height — not open-flow rating
Pond pumps come in two fundamental installation types — submersible and external — and the choice between them is determined primarily by pond volume, fish load, and system complexity rather than personal preference.
For the vast majority of residential backyard ponds — water gardens, family goldfish ponds, and koi ponds up to approximately 4,000 gallons — a quality submersible pond pump is the right and practical choice. The installation is straightforward (place pump in pond, connect tubing, plug into GFCI outlet), the water itself cools the motor eliminating overheating risk, and modern magnetic drive submersibles run quietly enough to be inaudible at normal conversation distance.
External pumps are the correct choice for ponds over 4,000 gallons, any system with a bottom drain, or installations requiring flow rates above 5,000 GPH that would exceed the practical upper limit of submersible designs. They require a dry pump housing or vault, must be installed at or below water level for priming, and run noticeably louder than submersibles — factor in distance from seating areas when planning placement.
An external pump installation for a large koi pond — housed in a protective vault alongside the bead filter, with bottom drain plumbing visible. External pumps are the correct choice at this scale, delivering the flow rates and longevity that submersibles cannot match.
Within submersible pond pumps, the motor technology choice — magnetic drive versus direct drive — is one of the most important specifications to look for, and one that many buyers overlook entirely.
A magnetic drive pump uses a magnetic field to spin the impeller without a mechanical shaft connection between motor and impeller. This design has three critical advantages for continuous pond use:
Every pond pump in Pond Pro Direct's collection rated for continuous aquatic use is magnetic drive. We do not stock direct drive pumps for primary pond filtration service.
Direct drive pumps use a traditional shaft-and-seal motor connection. They produce higher flow rates at lower cost than equivalent magnetic drive models, making them suitable for short-duration or seasonal applications — draining a pond for cleaning, powering a temporary aeration system during construction, or running a large waterfall feature that operates only a few hours per day. They are not appropriate for continuous 24/7 filtration service and should never be used as the primary circulation pump in a fish-bearing pond.
Hardware store sump pumps are built for intermittent emergency use — not continuous aquatic service. Running one as a pond pump will burn out the motor within weeks, void any warranty, and risk introducing petroleum-based lubricants into fish water. Always use a pump explicitly rated and certified for continuous submersible pond use.
With the underlying principles established, here is how pump sizing translates across the most common residential pond configurations. Use this as your starting point, then apply the head height correction from Section 3 to arrive at the specific pump specification you need.
| Pond Type | Pond Volume | Required GPH (at head) | Pump Type | Min Tubing Diameter |
|---|---|---|---|---|
| Small water garden | 200–500 gal | 200–500 GPH | Small submersible | 3/4 inch |
| Standard water garden | 500–1,000 gal | 500–1,000 GPH | Mid submersible | 1 inch |
| Family pond (goldfish) | 1,000–1,500 gal | 1,500–2,250 GPH | Mid-large submersible | 1.5 inch |
| Small koi pond | 1,500–2,500 gal | 3,000–5,000 GPH | Large submersible | 1.5–2 inch |
| Medium koi pond | 2,500–4,000 gal | 5,000–8,000 GPH | Large submersible or external | 2 inch |
| Large koi pond | 4,000+ gal | 8,000+ GPH | External pump | 2–3 inch |
Running a high-flow pump through undersized tubing is one of the most common installation mistakes — and one that significantly reduces actual GPH delivered. The tubing diameter at the pump outlet is the minimum diameter for the entire run. Stepping up from 1.5-inch to 2-inch tubing on a 3,000 GPH system reduces friction head by approximately 2 feet and increases actual flow delivery by 15–25% with no pump change. If you're on the edge between two pump sizes, upgrading tubing diameter may close the gap without the cost of a larger pump.
Every listing shows GPH at actual head height — not just open-flow. Filter by pond volume and application.
A pond pump runs 24 hours a day, 365 days a year. Over a 5-year pump lifespan, electricity cost can easily exceed the pump's purchase price — making energy efficiency a legitimate financial consideration, not just an environmental one.
The simplest efficiency metric for comparing pond pumps is GPH per watt — how many gallons per hour the pump delivers for each watt of electricity consumed. Use this benchmark when evaluating any pump:
| Efficiency Tier | GPH per Watt | Example | Annual Cost (at $0.13/kWh) |
|---|---|---|---|
| Poor (avoid) | Under 50 GPH/W | 1,000 GPH at 25W — doesn't exist at quality | High |
| Acceptable | 50–80 GPH/W | 1,500 GPH at 25W | ~$28/year |
| Good (target) | 80–120 GPH/W | 2,000 GPH at 22W | ~$25/year |
| Excellent | 120+ GPH/W | 3,000 GPH at 23W | ~$26/year |
Variable flow (or variable speed) pumps allow you to adjust output — running at 100% in summer when filtration demand peaks, 60–70% in spring and fall, and minimal recirculation in winter. For koi pond owners who run their systems year-round, a variable flow pump typically reduces annual electricity consumption by 30–40% compared to a fixed-speed equivalent. The premium of $40–$120 over comparable fixed-speed models is typically recovered within 18–24 months of continuous operation.
Aquascape's AquaSurge Pro series — available in our pond pump collection — includes auto-adjust technology that senses water temperature and reduces flow in cold weather, preventing frozen discharge lines while automatically maintaining optimal biological filtration turnover rates.
Pond Pro Direct carries pumps from four major brands — Aquascape, EasyPro, Atlantic Water Gardens, and OASE. Here is an honest, experience-based comparison to help you choose the right brand for your application.
Aquascape's pump lineup runs from the 400 GPH AquaSurge 2000 through the 4,000 GPH AquaSurge Pro 4000-8000 variable flow series. All Aquascape pumps in our inventory are magnetic drive, oil-free, and carry a 3-year warranty — the longest standard warranty in the residential pond pump category. The AquaSurge Pro series' dual-adjustable flow feature is genuinely useful on koi ponds where seasonal demand varies significantly between summer and winter. Best for: Homeowners who want the most comprehensively supported pump in the market and are willing to pay a 10–15% premium for it.
EasyPro's Stainless Series submersible pumps are Pond Pro Direct's top recommendation for water gardens and goldfish ponds in the 500–3,000 GPH range. EasyPro specifies all pumps with performance curves at 5-foot and 10-foot head heights on every product page — a transparency that makes sizing calculations straightforward and that not all brands match. Their energy consumption figures consistently benchmark in the "good" tier at 80–100 GPH per watt. Best for: Value-conscious builders who want reliable, accurately specified performance without premium brand pricing.
Atlantic's TidalWave3 series is purpose-engineered for waterfall and stream applications — the pump housing design prioritizes high-head performance over open-flow rate, making Atlantic pumps particularly well-suited for installations with head heights above 6 feet. The TidalWave3 2700 delivers a rated 2,700 GPH at 4 feet and a notably competitive 1,400 GPH at 10 feet of head — performance that holds up better at high head heights than most competitors in the same class. Best for: Pondless waterfall installations and ponds with tall waterfall features where head height performance is the primary requirement.
OASE's AquaMax Eco line represents the top tier of energy efficiency in our pump inventory — their AquaMax Eco Premium 4000 delivers 1,056 GPH at 10 feet of head while drawing just 24 watts, a GPH-per-watt efficiency that leads the category. OASE pumps carry a 5-year warranty on the Premium series and include built-in thermal protection that automatically reduces flow when motor temperature exceeds safe operating limits — a meaningful safeguard on koi ponds where pump failure has direct fish health consequences. Best for: Koi hobbyists who prioritize maximum efficiency, long-term reliability, and are willing to invest in top-tier European engineering.
Pond Pro Direct carries the full pump ranges from Aquascape, EasyPro, Atlantic Water Gardens, and OASE — every listing includes performance curves at actual head heights so you can size with confidence.
Before placing any pond pump order, confirm every item on this checklist. It takes five minutes and prevents the most expensive sizing mistakes.
Tell us your pond volume, head height, and fish type — we'll confirm the right pump before you order.
Match GPH to pond volume at your actual head height — not open-flow. For a water garden: equal GPH to pond volume (1,000 GPH for 1,000 gallons). For koi ponds: double the turnover (2,000 GPH for 1,000 gallons). Then look up your pump's performance curve at your head height to confirm it delivers those numbers under real installation conditions.
Head height is the total vertical distance water must travel from pump intake to discharge point, plus a friction allowance for tubing length and fittings. It is the resistance figure you use to look up actual GPH on a pump's performance curve. A pump rated at 2,500 GPH open-flow may deliver only 1,200 GPH at 6 feet of head — always size using head-height-adjusted GPH, not open-flow.
Submersible pumps sit inside the pond fully underwater — easy to install, water-cooled, quiet, and suitable for ponds up to about 5,000 gallons. External pumps install outside the pond in a dry housing — they handle higher flow rates, are easier to service without getting wet, and last longer under heavy continuous use. External pumps are the right choice for large koi ponds over 3,000–4,000 gallons, particularly those with bottom drain systems.
Yes — for any fish-bearing pond, the pump must run continuously 24/7/365. The beneficial bacteria colony in your filter requires constant oxygenated water flow to survive. Shut the pump off for more than 4–6 hours and the colony goes anaerobic and dies, resetting the nitrogen cycle and creating dangerous ammonia spikes when the pump restarts. A quality magnetic drive pump running continuously costs approximately $7–$15 per month in electricity — far less than restocking fish lost to an ammonia crash.
Target a minimum of 80 GPH per watt as your efficiency benchmark when comparing pumps. A 1,500 GPH pump drawing 20 watts or less is excellent; 25 watts is good; anything above 35 watts for 1,500 GPH is inefficient for continuous service. For koi ponds, prioritize energy efficiency — the wattage difference between an average and excellent pump compounds significantly over years of 24/7 operation.
The single most important takeaway from this guide: always size your pond pump using GPH at actual head height — never open-flow rating. That one correction eliminates the most common and most costly pond pump sizing mistake, and everything else in this guide builds from it.
Use the four-step formula in Section 4 to calculate your required GPH. Apply the head height correction in Section 3 to find the pump that actually delivers that GPH in your specific installation. Choose magnetic drive, confirm the tubing diameter, and run the pump continuously. That is the complete picture of how to choose a pond pump correctly — and how Pond Pro Direct's team approaches every pump recommendation we make.
