Atlantic 12" 316 Stainless Steel Spillway – Formal Waterfall Weir for Pondless Waterfalls, Pools & Modern Water Features
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description

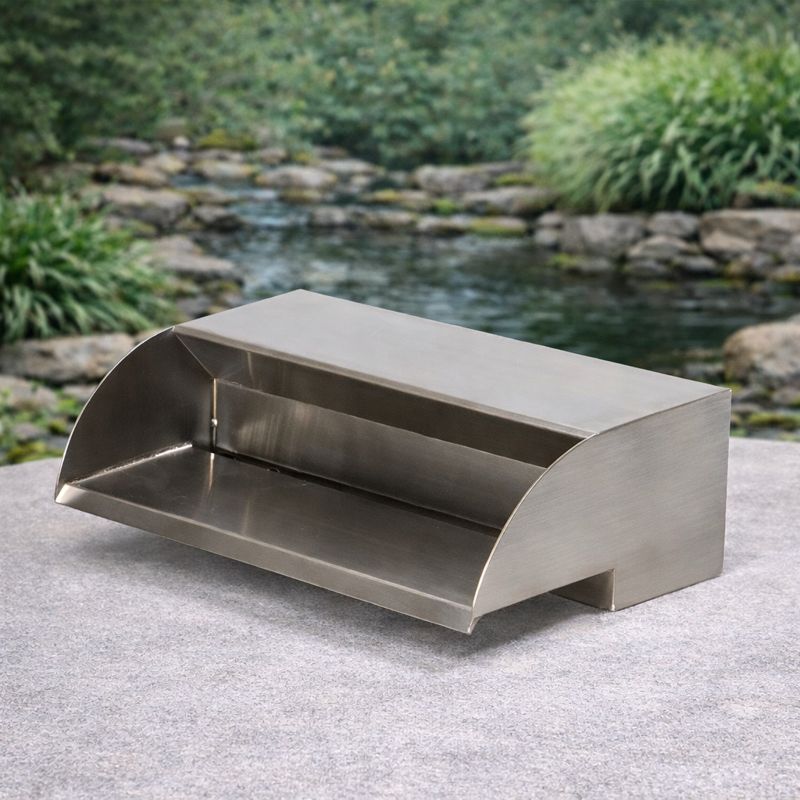

The Atlantic Water Gardens SS12-316 is a 12” wide, heavy-gauge 316 marine-grade stainless steel spillway (also called a scupper) engineered for formal waterfall installations in wall structures, poolscapes, and hardscapes. At just 4” tall, it drops into standard garden wall block construction without any cutting — replacing a single course block for a seamless, professional installation. The structural housing supports 80 lbs per linear foot of overburden, making it safe to build masonry, stone, and concrete directly over the spillway body.
At its rated maximum of 1,200 GPH, the SS12-316 delivers a 9”–10” water projection from an 18” fall height — a dramatic, smooth sheet that catches light beautifully and adds significant acoustic value to any outdoor space. The internal weir baffle ensures an even, gap-free water curtain across the full 12” width. Backed by a 3-Year Limited Manufacturer Warranty.
Key Features & Benefits
Technical Specifications
| Specification | Value |
|---|---|
| SKU | SS12-316 |
| Width | 12” |
| Full Dimensions (W × D × H) | 12” × 8-1/2” × 4” |
| Material | Heavy-gauge 316 stainless steel (marine grade) |
| Inlet | 1-1/2” FPT (female pipe thread) |
| Max Flow Rate | 1,200 GPH |
| Water Projection | 9”–10” at 18” fall height (1,200 GPH) |
| Max Fall Height (clear sheet) | ~3 ft above basin (above this height, sheet breaks up) |
| Load Bearing | 80 lbs per linear foot |
| Wall Block Fit | Replaces standard 4” garden wall block without cutting |
| Installation | Wall-mounted / recessed into masonry |
| Chlorinated Water | Yes — 316 marine grade suitable for pools, spas, salt systems |
| LED Compatible | Yes — Atlantic 12” LED Light Bar (sold separately) |
| Warranty | 3-Year Limited Manufacturer Warranty |
316 Stainless Steel Spillway Family
| Model | SKU | Width | Dimensions (W×D×H) | Inlet |
|---|---|---|---|---|
| 12” Spillway ← This | SS12-316 | 12” | 12”×8.5”×4” | 1-1/2” FPT |
| 24” Spillway | SS24-316 | 24” | 24”×8.5”×4” | 1-1/2” FPT |
| 36” Spillway | SS36-316 | 36” | 36”×8.5”×4” | 1-1/2” FPT |
Frequently Asked Questions
What is the difference between 304 and 316 stainless steel spillways?
Both are stainless steel, but their alloy composition differs in a critical way:
- 304 stainless contains 18% chromium and 8% nickel — excellent for freshwater applications but susceptible to pitting in chlorinated or saline environments over time
- 316 stainless contains 16% chromium, 10% nickel, and 2% molybdenum — the molybdenum dramatically improves resistance to chlorides, including pool chemicals, salt-chlorine generators, seawater, and deicing salts
The SS12-316 is the professional choice for any installation where chlorine or salt contact is possible — poolscapes, spa walls, coastal gardens, or commercial environments where deicing products are used.
What is the recommended flow rate for this 12-inch spillway?
The SS12-316 has a maximum flow rate of 1,200 GPH. At 1,200 GPH, the water sheet projects 9”–10” from the face of the wall at an 18” fall height — size your basin or splash area accordingly.
For a thinner, more subtle flow, reduce pump output below 1,200 GPH. For the most dramatic sheer descent effect with a thick, even curtain, run the pump near full rated capacity. A pump with adjustable flow control gives you the most visual flexibility.
Keep the fall height at approximately 3 feet or less above the basin water level for a clean, unbroken water sheet. Greater heights cause the sheet to break into droplets.
Does this spillway include internal baffles?
Yes. The SS12-316 features an internal weir baffle that calms turbulent water before it reaches the spillway lip. Without this, the momentum of water entering the housing at the inlet creates uneven pressure across the weir, producing gaps and channels in the water sheet. The baffle distributes water pressure evenly across the full 12” width for a consistent, smooth curtain. The weir design is also non-clogging — debris passes through rather than accumulating.
Can the 316 Stainless Steel Spillway be used in swimming pools?
Yes — the SS12-316 is the preferred choice for swimming pools, spas, and any water feature using chlorinated water or salt-chlorine generation systems. The 316 grade’s molybdenum content provides significantly better resistance to chloride-induced pitting corrosion compared to standard 304 stainless steel. It is also suitable for coastal environments and areas where deicing salts are used.
How do I install the spillway into a masonry wall?
The SS12-316 is designed for masonry wall integration:
- The 4” height replaces a standard 4” garden wall block without any cutting — simply omit one block from the course where the spillway will be installed
- Connect plumbing to the 1-1/2” FPT (female pipe thread) rear inlet — use a 1.5” male pipe thread (MPT) fitting from your supply line
- The structural housing supports 80 lbs per linear foot, so blocks, mortar, and stone can be placed directly over the spillway body
- Ensure the spillway is level side-to-side for an even water sheet across the full 12” width
- The spillway can be recessed fully into the wall with only the stainless lip visible
Does this spillway support LED lighting?
Yes. The SS12-316 is fully compatible with the Atlantic 12” LED Light Bar (sold separately). Position the light bar behind the falling water sheet to illuminate the curtain from below or behind. Color-changing LED options allow dynamic color sequences at night, transforming the water feature into a focal point after dark.
