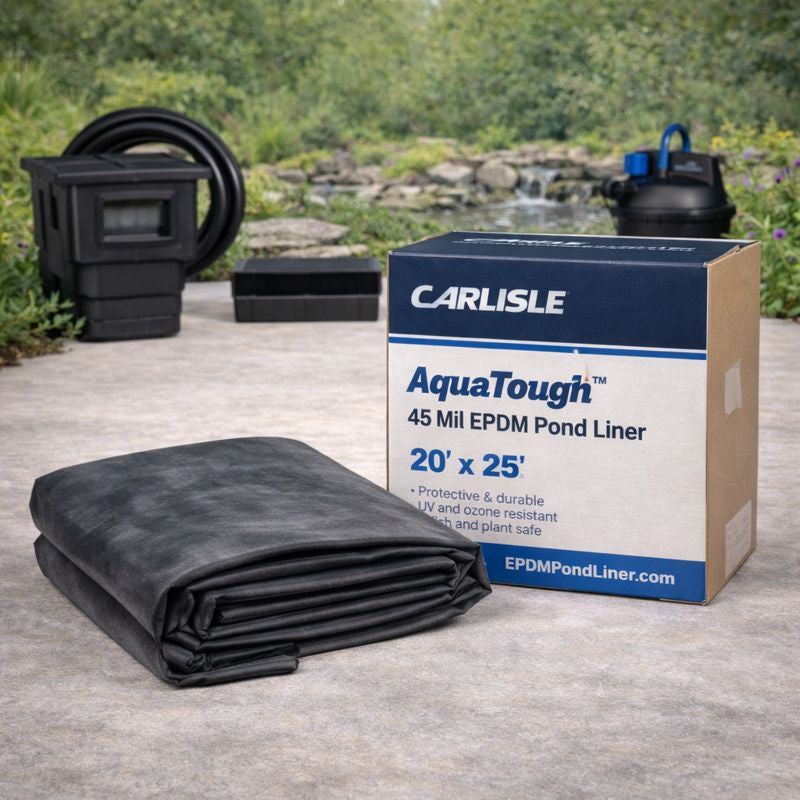

Carlisle AquaTough 45 Mil EPDM Pond Liner 20 ft x 25 ft – Heavy Duty Fish Safe Rubber Liner for Koi & Water Gardens
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Carlisle AquaTough 45 Mil EPDM Pond Liner (20’ × 25’, SKU 324294) is a professional-grade, non-reinforced EPDM elastomeric rubber liner manufactured in the USA by Carlisle SynTec Systems. Trusted by professional pond builders, landscape contractors, and serious DIY builders across North America, AquaTough combines the extreme flexibility of 45 mil EPDM with Carlisle’s unique J-Tear Protection — a EPDM formulation that causes any developing tear to self-arrest in a J-shape rather than propagating across the liner. Rated for temperatures from -40°F to 200°F, formulated for aquatic life compatibility, and resistant to UV, ozone, oxidation, frost, and snow, AquaTough liners are backed by a Lifetime Limited Warranty with registration. This 20’×25’ sheet provides approximately 500 sq ft of coverage and arrives in Carlisle’s Bubble Wrap Protective Roll Packaging.
Why Choose Carlisle AquaTough 45 Mil EPDM?
- Non-reinforced EPDM — maximum flexibility for pond installation: Unlike reinforced membranes with embedded fabric scrim, AquaTough’s non-reinforced EPDM is highly pliable, conforming smoothly to shelves, contours, and complex shapes without stiff fold lines. The flexibility allows it to be shaped around curves, corners, and rock formations that would resist stiffer materials.
- J-Tear Protection — unique Carlisle engineering: If a tear initiates in AquaTough, Carlisle’s EPDM formulation causes it to curve sharply and self-arrest in a J-shape, rather than propagating in a straight line across the liner. Damage is contained to a small, easily patch-repairable area.
- 45 mil thickness — the professional standard: At 45 mil (1.14mm), AquaTough provides the puncture and tear resistance required for ponds with fish, rocks, and plantings. Thinner liners are more susceptible to root penetration and stone damage over time.
- Outstanding UV, ozone, and weather resistance: Specifically engineered for both buried and exposed pond edge applications. EPDM does not become brittle or crack with UV exposure, frost, or high summer temperatures — critical for the pond perimeter that sees direct sun.
- Fish and plant safe formulation: AquaTough contains no plasticizers that can leach into the water. It is formulated for compatibility with aquatic life, making it suitable for koi ponds, water gardens, and aquatic plant installations.
- Resists microbial and biological degradation: The EPDM chemistry resists breakdown from algae, pond bacteria, and organic acids produced by decaying vegetation — maintaining waterproofing integrity for decades.
- Lifetime Limited Warranty — register to activate coverage
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | 324294 |
| Size | 20 ft × 25 ft (500 sq ft nominal) |
| Material | Non-reinforced EPDM (Ethylene Propylene Diene Monomer) |
| Thickness | 45 mil (1.14 mm nominal) |
| Tensile Strength | typical 45 mil non-reinforced EPDM: ~1,300+ psi per ASTM D412 |
| Ultimate Elongation | typical min 300%, usually 400–420% per ASTM D412 |
| Sheet Weight | typical 45 mil non-reinforced EPDM: ~0.29 lbs/sq ft / ~145 lbs for 500 sq ft |
| Temperature Range | -40°F to ~200°F (verify exact max with Carlisle data sheet) |
| UV Resistance | Excellent — engineered for exposed pond edge applications |
| J-Tear Protection | Yes — tears self-arrest in J-shape; unique AquaTough feature |
| Fish & Plant Safe | Yes — no plasticizers; formulated for aquatic life compatibility |
| Country of Origin | Made in USA — Carlisle SynTec Systems |
| Packaging | Bubble Wrap Protective Roll Packaging |
| Warranty | Lifetime Limited Warranty (registration required after installation) |
Pond Sizing Calculator — What Pond Can I Build?
Use the standard sizing formula to determine the maximum pond size for this liner:
Liner dimension needed = Pond dimension + (2 × depth) + (2 × edge overlap)
| Pond Depth | Edge Overlap Per Side | Max Pond Length (from 20' liner) | Max Pond Width (from 25' liner) |
|---|---|---|---|
| 2 ft | 1 ft (minimum) | 14 ft | 19 ft |
| 2 ft | 1.5 ft (recommended) | 13 ft | 18 ft |
| 3 ft | 1 ft (minimum) | 12 ft | 17 ft |
| 3 ft | 1.5 ft (recommended) | 11 ft | 16 ft |
Ideal Applications
- Koi ponds up to 14’ × 19’ at 2-ft depth (or smaller at greater depth)
- Water gardens, ornamental ponds, reflection pools
- Pondless waterfalls and stream channels
- Retention ponds and bioswales
- Residential and commercial landscape water features
Installation Tips
- Install a non-woven geotextile underlayment before placing the liner — it protects against sharp stones, roots, and allows gases to escape, preventing the liner from shifting or bubbling up
- Allow the liner to warm in direct sunlight for 30+ minutes before installation — warmer EPDM is more pliable and easier to shape into contours
- Measure your post-excavation dimensions before cutting — planned dimensions often differ from actual after digging
- Fold and pleat carefully at corners rather than cutting — pleats can be sealed with EPDM seam tape if desired
- Do not trim excess liner until after the pond is filled — water weight settles the liner into its final position, and premature trimming may leave edges too short
- Anchor the edge overlap with flat rocks, concrete coping, or an anchor trench before trimming
Frequently Asked Questions
What makes 45 mil EPDM better than other pond liner materials?
Carlisle AquaTough uses non-reinforced 45 mil EPDM — the professional standard for pond installation. Here’s how it compares:
- vs PVC liners: EPDM stays flexible at -40°F; PVC becomes brittle in cold climates. EPDM has no plasticizers that leach over time. EPDM typically lasts 3–5× longer than PVC in outdoor installations.
- vs HDPE liners: HDPE is stiffer and harder to conform to irregular shapes, shelves, and curves. EPDM drapes and pleats naturally into complex contours.
- vs “reinforced” EPDM: Reinforced EPDM has an embedded fabric scrim (used in commercial roofing) making it stiffer and less flexible. Non-reinforced EPDM is specifically chosen for ponds because its superior elongation and flexibility make contouring dramatically easier.
Is the Carlisle AquaTough liner safe for koi and aquatic plants?
Yes. AquaTough is specifically formulated for compatibility with aquatic life. It contains no plasticizers — the additives used in PVC that can leach into water over time and harm fish. EPDM is chemically inert in pond water and has been used in fish ponds for decades.
Carlisle recommends testing the liner with your specific species before long-term installation in unusual aquaculture applications. For koi, goldfish, water garden plants, and standard aquatic species, AquaTough is widely used by professional pond builders.
How long will the AquaTough liner last, and what is the warranty?
Carlisle AquaTough carries a Lifetime Limited Warranty. Register your purchase at Carlisle’s website after installation to activate coverage. When properly installed with geotextile underlayment, 45 mil EPDM routinely provides 30–50 years of service life in buried applications. Exposed edge portions that see direct UV may show surface weathering earlier, which is why edge anchoring and coping are recommended.
The J-Tear Protection feature provides additional durability: if a tear initiates — from a misplaced tool, a shifting rock, or root pressure — AquaTough’s EPDM chemistry causes the tear to curve and self-arrest in a J-shape rather than running straight across the liner. Any resulting hole can be patched with EPDM repair tape without draining the pond.
What size pond can I build with a 20' x 25' liner?
Use the standard liner sizing formula: Liner = Pond dimension + (2 × depth) + (2 × edge overlap)
For this 20’×25’ liner:
- At 2 ft deep with 1 ft overlap per side: pond up to 14 ft × 19 ft
- At 2 ft deep with 1.5 ft overlap per side: pond up to 13 ft × 18 ft
- At 3 ft deep with 1 ft overlap per side: pond up to 12 ft × 17 ft
Important: always measure your post-excavation dimensions, not your planned dimensions. Add the depth term twice — once for each side — and the overlap term twice. If unsure, choose a larger liner. Call (765) 508-4352 for help sizing your project.
Does the liner need underlayment?
Yes — underlayment is strongly recommended for any installation on native soil. A non-woven geotextile underlayment placed beneath the liner provides three key benefits:
- Cushions the liner against sharp stones, glass, and roots that can cause pinhole punctures over time
- Allows gases produced by soil microbes to escape beneath the liner, preventing the liner from bulging or floating upward when the pond is drained
- Extends liner life by reducing point-load stress on the EPDM surface
Underlayment can also be installed above the liner in areas where you plan to place heavy rocks inside the pond — this prevents stone edges from cutting into the liner surface. Ask us about matched underlayment for the 20’×25’ size.
Can I seam two AquaTough liners together?
Yes. EPDM seaming creates bonds as strong as the liner itself. The standard process uses:
- EPDM seam primer — applied to both surfaces and allowed to flash off
- EPDM splicing tape — double-sided tape pressed firmly to create a chemical bond between the two EPDM surfaces
- Cover tape — optional single-sided tape over the splice for added protection
Allow a minimum 3-inch overlap on seamed sections. Do not seam in temperatures below 40°F, as the adhesive bond requires warmth to cure properly. Contact us for compatible Carlisle seaming materials for the AquaTough product line.
Why Buy from Pond Pro Direct?
- Authentic Carlisle AquaTough — look for the AquaTough™ logo on your liner to confirm genuine product. Carlisle’s Lifetime Limited Warranty requires purchase from an authorized retailer.
- Bubble Wrap Protective Roll Packaging — ships direct from Carlisle in original roll packaging, never pre-folded or double-handled
- Liner sizing expertise — call Mon–Fri 9 AM–5 PM EST to confirm sizing for your specific pond shape and depth
- Matching underlayment, seam tape, and accessories available
- Price Match on identical products from authorized retailers
Carlisle AquaTough 45 mil non-reinforced EPDM pond liner, 20’×25’ (500 sq ft nominal, SKU 324294) — J-Tear Protection | Made in USA | Lifetime Limited Warranty (register after install) | UV + ozone + frost resistant | fish & plant safe | Bubble Wrap Protective Roll Packaging | Compatible with EPDM seam tape and primer for multi-panel installations.
Sizing questions or need underlayment? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
