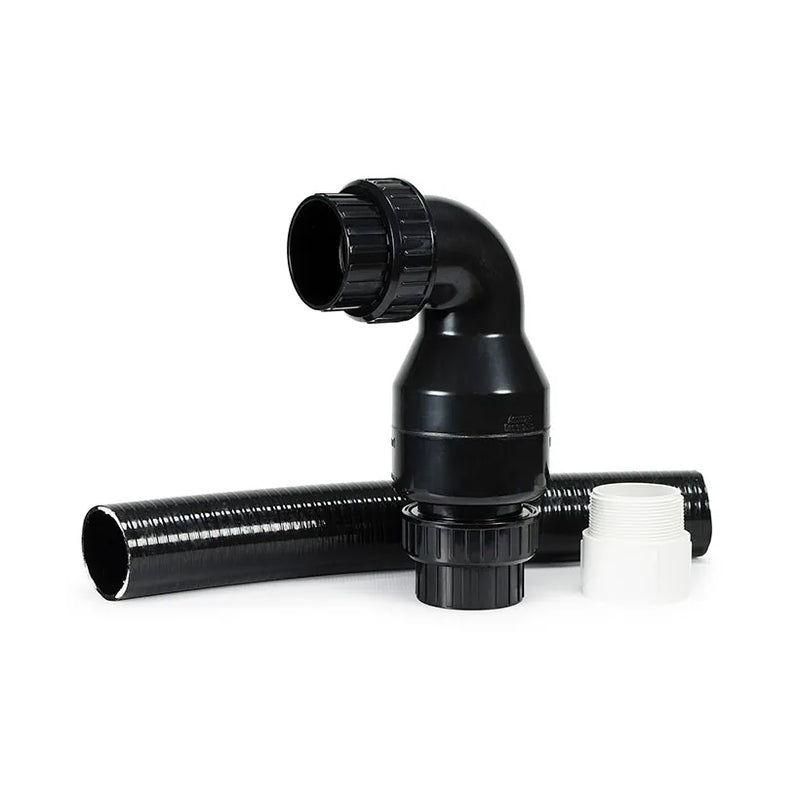

Aquascape 3" Dual Union Check Valve with 3" Pipe & Male Adapter
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Aquascape Dual Union 3” Check Valve Assembly (SKU 29098) is a heavy-duty 90° swing-style check valve designed for large-pump pond installations. It connects your pump to the pond plumbing, prevents backflow when the pump shuts off or power is lost, and makes pump removal quick and easy through its dual union connections on both sides — no tools required and no need to drain the BioFalls filter for routine maintenance.
Designed specifically for the AquascapePRO 10,000, Tsurumi 12PN, and AquaSurge 5000 pumps when used with the Pondless Waterfall Vault with Extension, Large Snorkel Vault, or Grande Skimmer. Includes a 24-inch length of 3” flex PVC pipe and a 3” male adapter for a complete pump-to-plumbing connection out of the box.
How the Dual Union Check Valve Works
The 29098 is a 90° (elbow-style) swing-style check valve. Water enters vertically from the pump discharge port (3” FPT connection at the bottom) and exits horizontally through the 3” slip fitting toward the filter or vault plumbing. Inside the valve body, a heavy-duty flapper plate swings open under pump pressure, allowing maximum flow. When the pump stops (or power is cut), the flapper swings shut under gravity and water pressure, blocking backflow within seconds.
Union couplings on both the pump-side (bottom) and the plumbing-side (top/exit) allow tool-free disconnection at either point for pump servicing, filter cleaning, or winter removal — without losing water from the filter body above.
What’s Included
- 3” ID PVC 90° Check Valve Assembly with dual union connections
- 3” ID Flex PVC Pipe — 24 inches long
- 3” Male Adapter
- Pro Series Instruction Sheet
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 29098 |
| Valve Size (inside diameter) | 3” |
| Valve Orientation | 90° elbow-style (pump inlet vertical, outlet horizontal) |
| Valve Dimensions (approx) | 15-1/4” Tall × 9-1/4” Wide × 5-5/8” Diameter |
| Slip Opening (inside) | 3.50” (fits 3” Schedule 40 PVC) |
| Pump Discharge Connection | 3” FPT (Female Pipe Thread) |
| Union Connections | Dual — both sides; tool-free |
| Valve Mechanism | Swing-style flapper; prevents backflow on pump shutoff or power loss |
| Material | PVC |
| Pipe Included | 3” ID Flex PVC, 24” long |
Compatibility — Pumps
The 29098 is specifically designed to work with the following Aquascape pump models:
| Pump | SKU | Discharge Size |
|---|---|---|
| AquascapePRO 10,000 Pond Pump | 20006 | 3” FPT |
| Tsurumi 12PN Solids Handling Pump | 30391 | 3” FPT |
| AquaSurge 5000 | 91020 | 3” |
Compatibility — Filters, Vaults & Skimmers
| Filter/Vault | SKU |
|---|---|
| Pondless Waterfall Vault with Extension | 49000 |
| Large Snorkel Vault | 29068 |
| Grande Skimmer | 09017 |
For 2” pump installations, see the 2” Dual Union Check Valve (SKU 48026) or the AquaSurge Check Valve Assembly (SKU 98620) depending on your pump model. To convert existing 2” plumbing to 3”, see the 2”-to-3” Conversion Kit (SKU 29100).
Frequently Asked Questions
How do I know if I need the 3" valve or the 2" valve?
Measure the inside diameter of your plumbing pipe — not the collar, not the outside of the pipe. The 29098 requires pipe with a true 3” inside diameter (3” Schedule 40 PVC has a 3.50” inside slip opening).
Most residential ponds use 2” plumbing. The 3” valve is specifically for large pump installations using the AquascapePRO 10,000, Tsurumi 12PN, or AquaSurge 5000 in conjunction with large Aquascape vaults and skimmers. If you have any doubt about your pipe size, contact us before ordering — the vast majority of 3” check valve returns are from buyers who have 2” tubing.
What prevents water from draining back through the pump when it's off?
The 29098 contains a heavy-duty swing-style flapper inside the valve body. When the pump is running, water pressure holds the flapper open, allowing maximum unobstructed flow. When the pump shuts off (or power is lost), the flapper swings shut under gravity and reverse water pressure within seconds, preventing the water in the filter and pipe run from draining back through the pump. This protects pump internals and maintains prime in the system, so the pump starts instantly when power is restored.
Can I remove my pump without draining the BioFalls filter?
Yes — this is the primary maintenance advantage of the dual union design. The union couplings on both sides of the valve allow you to twist off the union collar without tools, disconnecting the pump side (bottom) or the plumbing side (top) independently. Because the check valve holds water in the filter above when closed, you can remove the pump for cleaning or winter storage without losing the water in the BioFalls filter body. Reconnection is equally simple: hand-tighten the union collar back onto the threads.
What is the orientation of this check valve — inline or 90°?
The 29098 is a 90° (elbow-style) check valve. The pump discharge port enters the valve from the bottom (vertically), and the plumbing exit is horizontal. This configuration is standard for installation inside pond skimmer boxes and pump vaults, where the pump sits at the bottom and the supply line runs horizontally toward the filter or BioFalls. Confirm your installation has sufficient vertical clearance for the valve’s 15-1/4” height before ordering.
Does this valve include everything I need to connect my pump?
The 29098 includes:
- 3” ID 90° check valve assembly with dual union connections
- 3” ID flex PVC pipe — 24 inches long
- 3” male adapter
- Pro Series instruction sheet
This provides a complete pump-to-plumbing connection for compatible Aquascape installations. Additional 3” flex PVC pipe may be needed for longer runs. Replacement slip fittings (SKU 29514) and threaded collars (SKU 29524) are available separately if needed.
