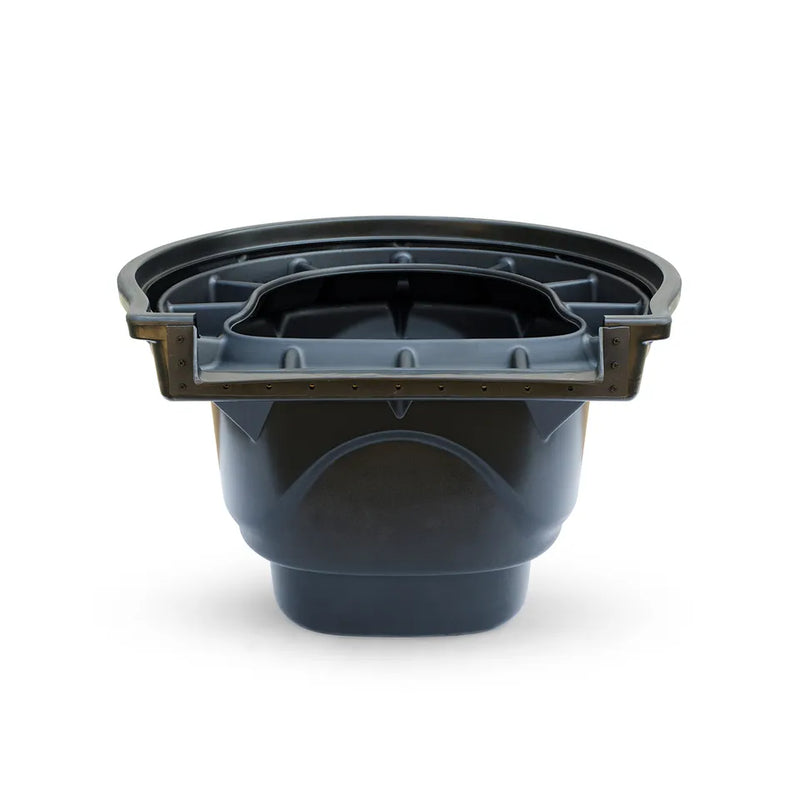

Aquascape 29319 Signature Series 6000 BioFalls Pond Filter – Waterfall Biological Filter w/ 2" Bulkhead
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Aquascape 29319 Signature Series 6000 BioFalls® Filter is a professional-grade biological waterfall filter for ponds up to 6,000 gallons, handling pump flows up to 15,000 GPH through dual 2" bulkhead ports. It ships complete with two Poly-Flo ESA biological filter mats (50% more surface area than traditional filter mats), three media nets, a removable rock and plant tray, fish-safe silicone, and all installation hardware. The rotationally moulded polyethylene body (40"L × 45"W × 29.5"H) is designed for burial and camouflage at the head of a waterfall or stream. Backed by Aquascape's Limited Lifetime Warranty. Ships freight due to dimensions.

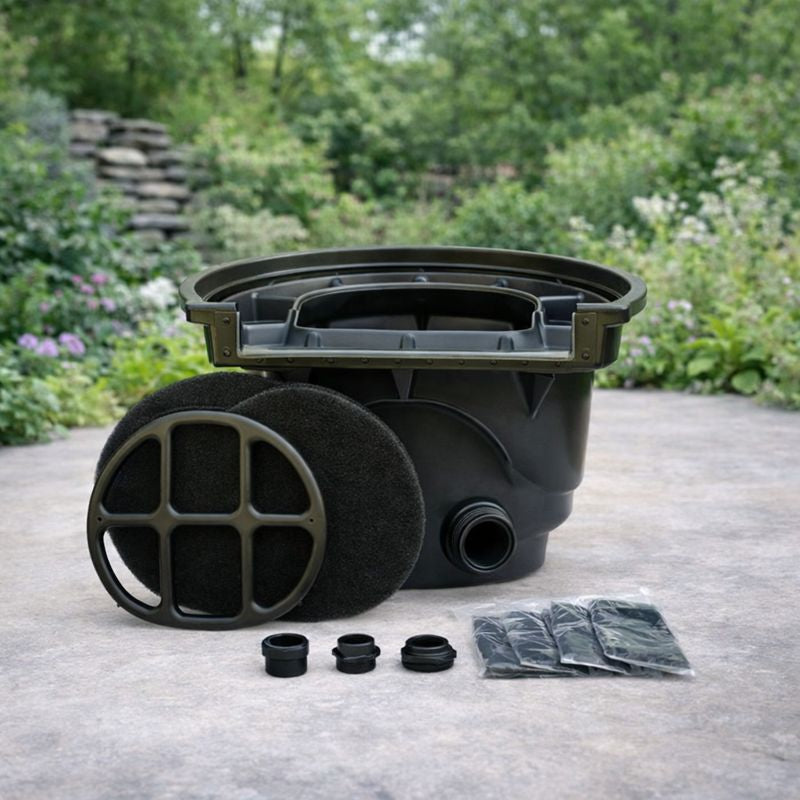

What's Included
Filter System
- BioFalls® filter tank with 28" reversible waterfall spillway lip (rotationally moulded polyethylene; structural ribbing for burial strength)
- Rock and plant tray (removable; holds rocks, plants, and gravel for naturalization)
- Two Poly-Flo ESA biological filter mats (50% more biological surface area than traditional filter mats)
- Three media nets/bags (for optional BioBalls or other loose media)
Hardware & Fittings
- Two 2" bulkhead ports (dual, factory-installed)
- Two 2" PVC slip fittings
- Fish-safe silicone (for waterfall liner attachment)
- Patented non-cross-threading screws and hardware
- Installation instructions
Optional Add-On (Sold Separately)
- Aquascape BioBalls — three media nets hold up to 400 BioBalls total; significantly increases biological surface area for heavily stocked koi ponds
- Standard upgrade for high-bioload applications; sold separately
Not Included
- Pond circulation pump (up to 15,000 GPH)
- BioBalls (optional, sold separately — holds 400)
- Flexible pond hose for bulkhead connection
- Companion Signature Series Skimmer (sold separately)
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / Model | 29319 | Aquascape Signature Series 6000 BioFalls® Filter, 2" Bulkhead |
| Pond Capacity | Up to 6,000 gallons (22,700 L) |
| Max Pump Flow Rate | Up to 15,000 GPH (56,800 LPH) |
| Spillway Width | 28 inches (reversible lip) |
| Bulkhead Ports | Dual 2" (two ports) — includes two 2" PVC slip fittings |
| Dimensions | 40"L × 45"W × 29.5"H |
| Weight | 55 lbs (empty) |
| Construction | Rotationally moulded polyethylene (HDPE) — structural ribbing for burial |
| Filter Mats | 2 Poly-Flo ESA biological filter mats (50% more surface area than traditional mats) |
| Media Nets | 3 media nets included |
| BioBalls Capacity | Holds up to 400 BioBalls (optional, sold separately) |
| Rock Tray | Included (removable, for naturalization) |
| Waterfall Lip | 28" reversible spillway (natural stone spillway option) |
| Bulkhead Configuration | Reversible — install on either left or right side |
| Warranty | Limited Lifetime Warranty (Aquascape) |
| Shipping | Common carrier freight (due to 40"×45" dimensions) |
29319 vs. 29384 — SS6000 BioFalls Model Comparison
| Feature | 29319 (this model) | 29384 |
|---|---|---|
| Bulkhead Ports | Dual 2" (two ports) | Dual 3" (two ports) |
| PVC Slip Fittings | Two 2" PVC slip | Two 3" PVC slip |
| Pond Capacity | 6,000 gal | 6,000 gal |
| Max Pump Flow | 15,000 GPH | 15,000 GPH |
| Spillway | 28" reversible | 28" reversible |
| Dimensions | 40"×45"×29.5"H, 55 lbs | 40"×45"×29.5"H, 55 lbs |
| Filter Mats | 2 Poly-Flo ESA | 2 Poly-Flo ESA |
| Warranty | Limited Lifetime | Limited Lifetime |
| Best For | Ponds plumbed with 2" pipe | High-flow ponds plumbed with 3" pipe |
How the Poly-Flo ESA Filter Mats Work
The two included Poly-Flo ESA (Expanded Surface Area) biological filter mats are Aquascape's proprietary media for the BioFalls® series. ESA refers to the mat's expanded polymer structure, which provides 50% more colonization surface area per unit volume than conventional flat filter mats. Water entering the BioFalls® through the dual 2" bulkhead ports undergoes Aquascape's "swirling waterflow" action, moving through the Poly-Flo ESA mats in a pattern that maximizes contact time between water and beneficial bacteria colonies. The result is more complete ammonia and nitrite conversion per gallon of water processed.
For heavily stocked koi ponds, adding Aquascape BioBalls to the three included media nets significantly increases the biological capacity. The SS6000 BioFalls holds up to 400 BioBalls distributed across three media nets. BioBalls are sold separately and are the standard upgrade for professional koi pond installations with high bioload.
Frequently Asked Questions
What is the maximum flow rate for the Signature Series 6000 with 2" Bulkhead?
The Aquascape 29319 BioFalls® Filter is engineered for high-volume water features, supporting pump flows up to 15,000 GPH (56,800 LPH). This is the same maximum flow rating as the 29384 (3" bulkhead) model — the bulkhead size affects plumbing compatibility, not the filter's rated maximum flow capacity.
The dual 2" bulkhead ports accommodate two separate pump lines or a single high-flow pump using 2" plumbing. Both ports are reversible, installable on either the left or right side based on your plumbing layout. Two 2" PVC slip fittings are included.
How does the BioFalls 6000 provide biological filtration?
Water enters the SS6000 BioFalls through the dual 2" bulkhead ports and undergoes Aquascape's "swirling waterflow" action — the circular chamber creates a swirling water movement that maximizes contact time between the incoming water and the filter media. The water passes through two Poly-Flo ESA biological filter mats, which provide 50% more colonization surface area than traditional filter mats. Beneficial nitrifying bacteria colonize the ESA mat surfaces, converting ammonia from fish waste into nitrite and then into harmless nitrate.
For heavily stocked koi ponds, adding Aquascape BioBalls to the three included media nets significantly increases biological capacity. The SS6000 BioFalls holds up to 400 BioBalls (sold separately), distributed across three media nets for even flow distribution.
Is this BioFalls filter suitable for a koi pond?
Yes. The 29319 is specifically engineered for large ecosystems and koi ponds up to 6,000 gallons. Its two Poly-Flo ESA filter mats and three media net capacity (holds up to 400 BioBalls if supplemented) provide sufficient biological surface area to handle the waste produced by a moderately to heavily stocked koi system.
For maximum bioload handling in a 6,000-gallon koi pond, Aquascape recommends supplementing the two Poly-Flo ESA mats with optional BioBalls in the three media nets to increase biological surface area. The BioBalls (sold separately) are the professional-grade upgrade for high-stocking-density installations.
What are the benefits of the 28-inch waterfall spillway?
The 28" reversible waterfall spillway lip on the 29319 creates a professional-grade water curtain across a full 28 inches. The reversible design allows the spillway to be oriented in two directions — providing the option of installing a natural stone spillway where boulders sit directly on the lip, rather than the standard open waterfall configuration. This flexibility makes the SS6000 BioFalls the preferred choice for both traditional waterfall designs and natural boulder waterfall builds.
The patented non-cross-threading screws simplify installation and reduce the risk of stripped hardware during setup or seasonal maintenance. The included fish-safe silicone creates a watertight seal between the BioFalls spillway and the pond liner.
Can the BioFalls 6000 be buried and landscaped around?
Yes — burial is the standard installation method. The SS6000 BioFalls is constructed from rotationally moulded high-density polyethylene (HDPE) with structural ribbing designed specifically for burial. The rounded shape distributes soil and rock pressure evenly around the unit, preventing deformation. The unit is installed with the 28" spillway lip at grade level or slightly above — surrounding boulder work and landscaping conceals the filter body completely.
Dimensions for excavation planning: 40"L × 45"W × 29.5"H, 55 lbs empty. The removable rock and plant tray sits on top and can hold rocks, plants, and gravel to further naturalize the installation.
Shipping note: Due to the 40"×45" footprint, the 29319 ships via common carrier freight. Residential liftgate service may be required.
What maintenance is required for this Aquascape biological filter?
The SS6000 BioFalls® is designed for minimal maintenance. The key principle: avoid over-cleaning the filter, as beneficial bacteria colonies on the Poly-Flo ESA mats are the active filtration element — disrupting them reduces biological performance temporarily.
- Annual spring cleaning: Rinse the Poly-Flo ESA filter mats and media nets with pond water (not tap water) to remove accumulated debris. Tap water chlorine kills beneficial bacteria. Clean once per season at most.
- During the season: The filter runs autonomously as part of the pond's natural nitrogen cycle. No in-season cleaning is typically required.
- Winter: In freezing climates, remove the pump and drain the filter body. The filter housing can remain in place year-round.
- Access: The removable top lid provides access to the rock tray and filter mats without disturbing the boulder work.
Aquascape 29319 Signature Series 6000 BioFalls® Filter — dual 2" bulkhead ports, 28" reversible spillway, up to 15,000 GPH, 2 Poly-Flo ESA filter mats, 3 media nets, rock tray, Limited Lifetime Warranty. 40"×45"×29.5"H, 55 lbs. BioBalls optional (400 capacity). Ships common carrier freight.
Questions about BioFalls sizing, pump pairing, or comparing the 2" vs. 3" bulkhead model? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
