Aquascape 29384 Signature Series 6000 BioFalls Pond Filter – Waterfall Biological Filter w/ 3" Bulkhead
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Aquascape 29384 Signature Series 6000 BioFalls® Filter is a large-capacity waterfall biological filter providing mechanical and biological filtration for ponds up to 6,000 gallons, with a maximum pump flow of 15,000 GPH. Featuring a 28-inch reversible waterfall spillway lip, dual 3-inch bulkhead ports, two Poly-Flo ESA biological filter mats (50% more surface area than traditional mats), and a removable rock and plant tray for landscape integration, the SS6000 BioFalls is the professional-grade waterfall filter for large koi ponds and high-flow water features. Ships with fish-safe silicone, brass hardware, 3 filter media nets, and all installation fittings. Backed by an Aquascape Limited Lifetime Warranty. Ships via common carrier freight.

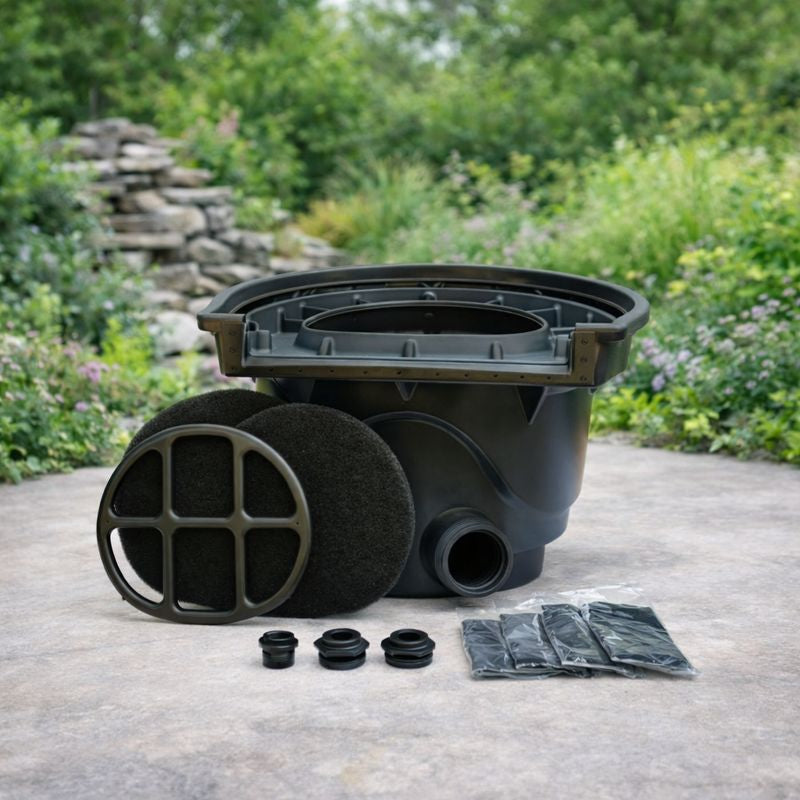

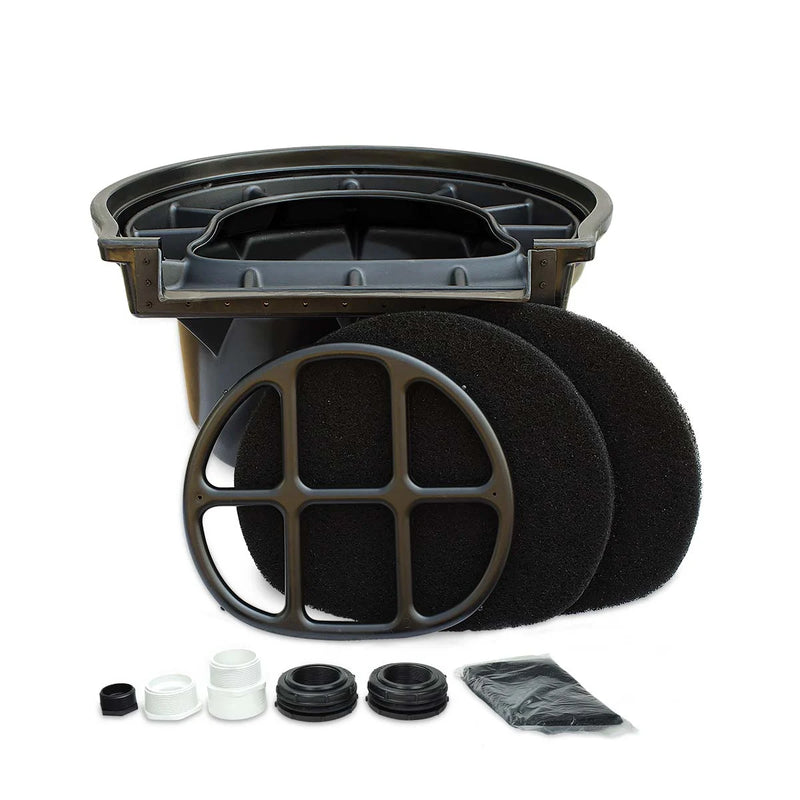

What's Included
Filter & Media
- SS6000 BioFalls® filter tank with 28" spillway -- roto-molded rounded polyethylene; structural ribbing for burial; swirling waterflow action maximizes filtration
- Two Poly-Flo ESA biological filter mats -- 50% more surface area than traditional filter mats; provide mechanical and biological filtration
- Three filter media nets/bags -- for optional BioBalls or other media
- Rock and plant tray (removable upper tray) -- holds rocks, plants, and gravel to naturalize filter in landscape
Hardware & Fittings
- Dual 3" bulkhead ports (2 bulkheads included) -- factory-installed, one on each side for installation flexibility
- Two 3" PVC slip fittings (one per bulkhead)
- Fish-safe silicone (for waterfall liner attachment to spillway lip)
- Brass hardware (corrosion-resistant) with patented non-cross-threading screws
- Reversible 28" waterfall spillway lip with stone spillway installation option
- Filter support rack
- Installation manual
Not Included (Optional)
- BioBalls® -- optional biological media upgrade; filter holds up to 400 BioBalls; sold separately
- Pond pump (see sizing guide below)
- Flexible hose / rigid pipe for pump-to-filter plumbing
Filter Sizing at a Glance
- Ponds up to 6,000 gallons (22,700L)
- Up to 15,000 GPH max pump flow
- 28" waterfall spillway creates a wide, natural water curtain
- Dual 3" bulkheads allow dual-pump or single-pump configurations
- Dimensions: 40"L × 45"W × 29.5"H | Weight: 55 lbs
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / Model | 29384 | Aquascape Signature Series 6000 BioFalls® Filter |
| Pond Capacity | Up to 6,000 gallons (22,700 L) |
| Max Flow Rate | Up to 15,000 GPH (56,800 LPH) |
| Spillway Width | 28" reversible waterfall lip |
| Bulkhead Ports | Dual 3" (2 bulkheads + 2 PVC slip fittings included) |
| Dimensions | 40"L × 45"W × 29.5"H |
| Weight | 55 lbs |
| Filter Media (Included) | Two Poly-Flo ESA biological filter mats + 3 media nets |
| Optional Media | BioBalls (holds up to 400, sold separately) |
| Construction | Rotationally molded rounded polyethylene (structural ribbing for burial) |
| Hardware | Brass (corrosion-resistant) + patented non-cross-threading screws |
| Flow Type | Down-flow waterfall biological filter |
| Installation | Surface mount or full burial; reversible waterfall lip for stone spillway option |
| Warranty | Limited Lifetime Warranty |
| Shipping | Common carrier freight (due to dimensions) |
How the SS6000 BioFalls® Filter Works
The Signature Series BioFalls® is a down-flow waterfall biological filter. Pond water is delivered to the filter by your pond pump through one or both of the dual 3-inch bulkhead inlets at the top of the unit. The two inlet ports create a swirling waterflow action as water enters the filter chamber, maximizing water-to-media contact time for enhanced filtration efficiency.
Water flows down through the two Poly-Flo ESA biological filter mats, where coarse mechanical debris is captured and a colony of nitrifying bacteria processes ammonia and nitrite from fish waste. The Poly-Flo ESA mats provide 50% more surface area than traditional filter mats, supporting a larger and more robust bacterial colony. After passing through the filter mats, the clean water exits through the 28-inch reversible waterfall spillway lip, cascading back into the pond as a natural waterfall.
The removable rock and plant tray sits above the filter chamber and can hold decorative rocks, aquatic plants, or gravel to naturalize the BioFalls® into its surrounding landscape. The entire unit can be fully buried (structural ribbing prevents warping under soil pressure) with only the waterfall lip visible at grade, creating a natural-looking waterfall feature.
Pump Sizing for the SS6000 BioFalls
The SS6000 BioFalls accepts pump flows from approximately 3,000 GPH (minimum for a 6,000-gallon pond at 2-hour turnover) up to the maximum rated 15,000 GPH. Aquascape recommends pairing with their AquaForce Pro or AquaSurge pump series. For dual-pump installations using both 3-inch bulkheads, each pump supply line handles its own flow independently.
For a standard 6,000-gallon koi pond: a pump delivering 3,000–6,000 GPH to the BioFalls provides one-to-two-times-per-hour turnover. For waterfalls requiring a wide, full curtain across the 28-inch spillway, higher flows (8,000–12,000 GPH) create a more dramatic visual effect while remaining within the filter's rated capacity.
Signature Series BioFalls® Comparison
| Feature | SS1000 (#99774) | SS2500 (#09020) | SS6000 (this filter) |
|---|---|---|---|
| Pond Capacity | 1,000 gal | 2,500 gal | 6,000 gal |
| Max Flow | 3,000 GPH | 5,000 GPH | 15,000 GPH |
| Spillway Width | Smaller | Smaller | 28" |
| Bulkheads | 1x 2" | 1x 2" | 2x 3" |
| Poly-Flo ESA Mats | 2 included | 2 included | 2 included |
| Warranty | Limited Lifetime | Limited Lifetime | Limited Lifetime |
Frequently Asked Questions
What is the maximum flow rate for the Signature Series 6000 BioFalls?
The Aquascape SS6000 BioFalls® (#29384) handles pump flow rates up to 15,000 GPH (56,800 LPH). This high flow capacity makes it ideal for large-scale waterfalls where a wide, dramatic water curtain across the 28-inch spillway is desired. For a 6,000-gallon koi pond with standard 2-hour turnover, a 3,000 GPH pump is the minimum effective flow.
The dual 3-inch bulkhead ports can accept two pump supply lines simultaneously. Using dual pumps (e.g., two 5,000 GPH pumps) maximizes waterfall volume while distributing the flow load across both bulkheads.
Why does the SS6000 BioFalls have dual 3-inch bulkheads?
The SS6000 includes two 3-inch bulkhead ports (one on each side of the filter body) for installation flexibility:
- Single-pump installation: Use one bulkhead for your pump supply line; the other remains capped. Choose left or right based on your landscape layout.
- Dual-pump installation: Use both bulkheads for maximum flow and the full 15,000 GPH capacity.
- Reversible installation: The unit can be oriented to suit your pond's position relative to the waterfall location.
The 3-inch diameter (vs. the 2-inch bulkheads on smaller BioFalls models) minimizes friction loss at high flow rates, allowing the full 28-inch spillway to be filled wall-to-wall with a dramatic water curtain.
How does the BioFalls 6000 provide biological filtration?
The SS6000 BioFalls® is a down-flow waterfall biological filter. Water from your pond pump enters at the top of the filter through one or both 3-inch bulkhead inlets. The dual-inlet design creates a swirling waterflow action that maximizes water-to-media contact time. Water then flows down through two Poly-Flo ESA biological filter mats.
The Poly-Flo ESA mats provide 50% more surface area than traditional filter mats, hosting a large colony of nitrifying bacteria that converts toxic ammonia (from fish waste and decaying plant matter) into nitrite, then into relatively harmless nitrate. The mats also capture suspended solids mechanically as water passes through. After filtration, clean water exits through the 28-inch reversible waterfall spillway lip and returns to the pond as a natural waterfall.
For additional biological capacity, up to 400 BioBalls® (sold separately) can be added to the three included media nets and placed in the filter chamber alongside the Poly-Flo ESA mats.
Is the Aquascape 29384 BioFalls durable enough to be buried?
Yes -- the SS6000 BioFalls is specifically engineered for burial. The rotationally molded rounded polyethylene body with structural ribbing prevents warping under the pressure of surrounding earth, rocks, and boulders placed on top of the filter. Most installations bury the entire filter body with only the 28-inch waterfall spillway lip visible at grade level, creating a fully naturalized waterfall appearance.
The removable rock and plant tray can hold decorative boulders and aquatic plants above the filter lid, further integrating the BioFalls into its landscape. Note: access to the filter mats for cleaning requires removing the rock tray and opening the lid -- plan the installation to allow this access.
Can I install the SS6000 BioFalls in an existing pond system?
Yes -- the 29384 is designed for both new builds and pond upgrades. Key installation flexibility features:
- Dual bulkheads: One on each side. Use whichever side best aligns with your existing pump plumbing.
- Reversible 28-inch waterfall lip: Can be installed in forward or reverse orientation. The reverse installation allows placement of natural stone across the spillway for a realistic stone waterfall appearance.
- Fish-safe silicone (included): Used to create a watertight seal between the pond liner and the waterfall lip during installation.
- Brass hardware: Won't corrode in contact with pond water over time.
Because of its 40"×45"×29.5" size, the SS6000 typically requires a berm or elevated installation area of approximately 24-28 inches height for the waterfall to fall back to pond level. Plan excavation and berm construction before delivery.
Aquascape 29384 Signature Series 6000 BioFalls® Filter: 28" reversible spillway, dual 3" bulkheads, 15,000 GPH, 6,000-gal ponds, 40"x45"x29.5", 55 lbs. Includes 2 Poly-Flo ESA filter mats + 3 media nets + rock tray + fish-safe silicone + brass hardware. BioBalls optional (holds 400, sold separately). Limited Lifetime Warranty. Ships common carrier freight.
Questions about BioFalls sizing, pump pairing, or installation planning? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
