Aquascape 49000 Pondless Waterfall Vault – Heavy-Duty Pump Vault for Pondless Waterfall & Disappearing Water Feature Systems
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description

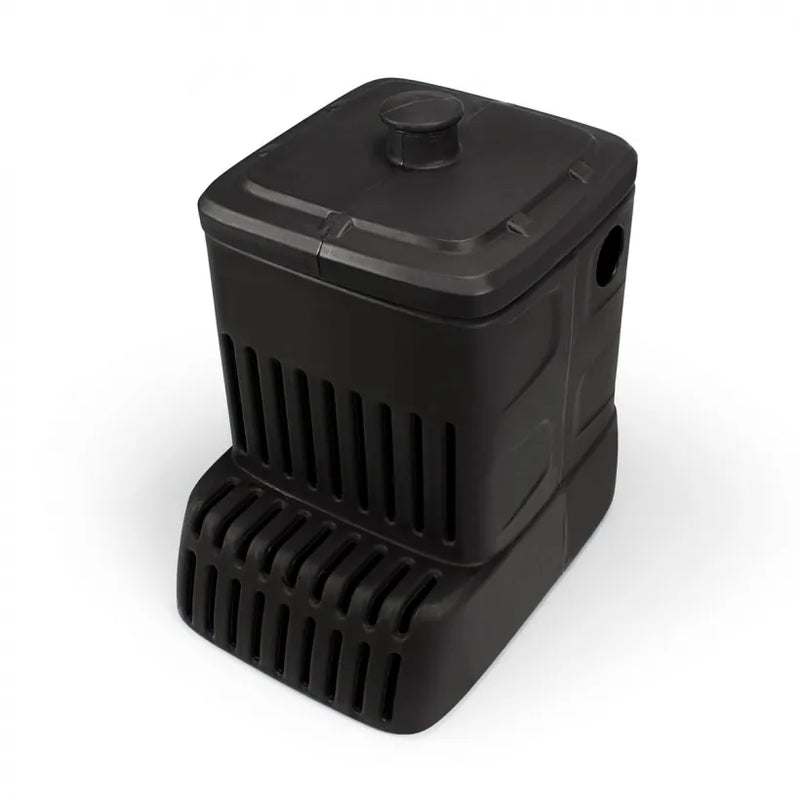

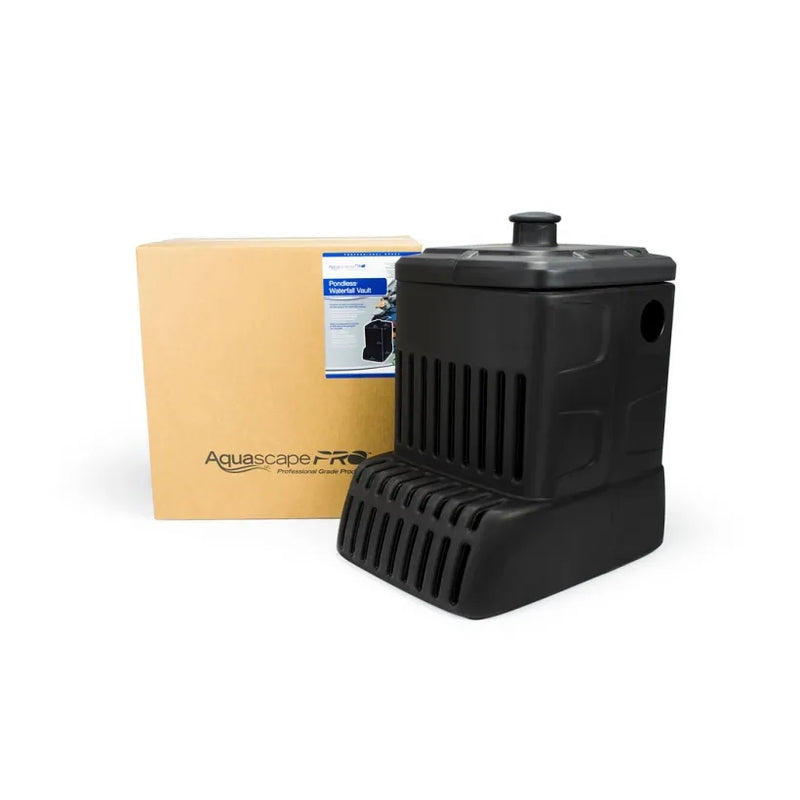

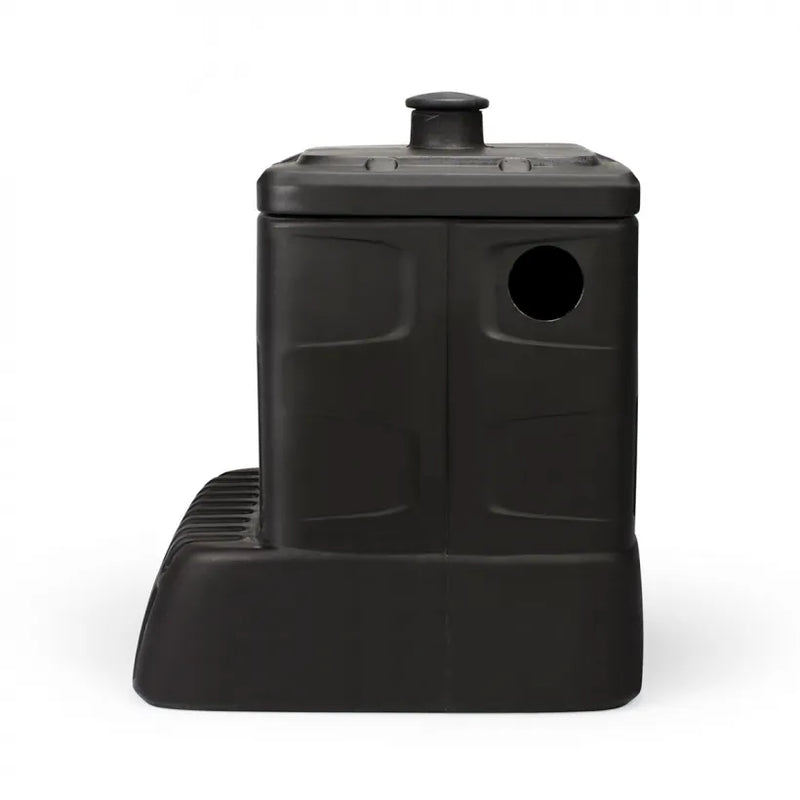

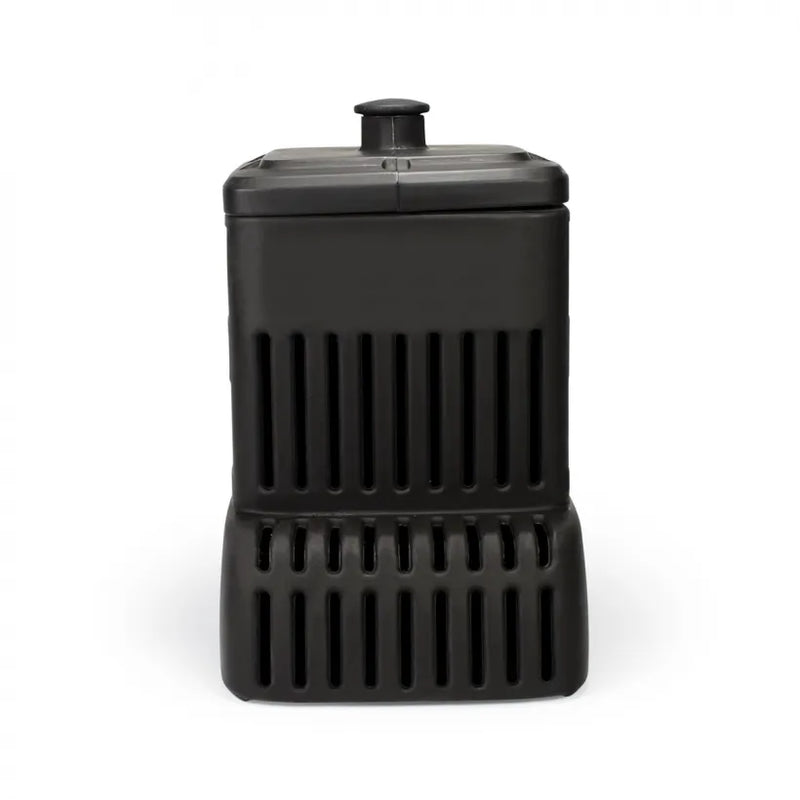

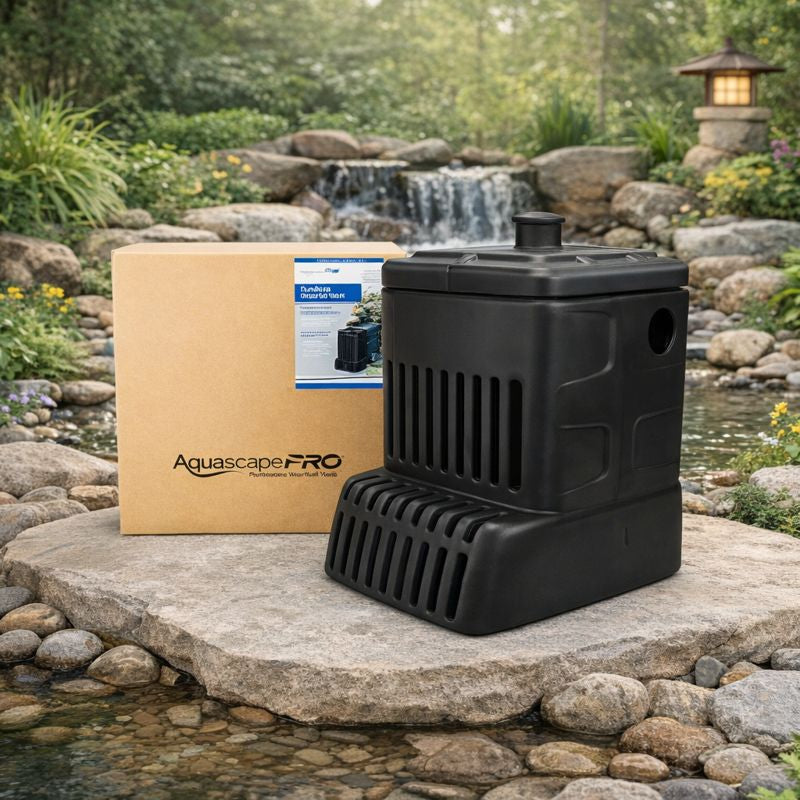

The Aquascape Pondless® Waterfall Vault (49000) is the central hub of any Pondless® Waterfall or disappearing water feature system. Designed to integrate directly with Aquascape AquaBlox® water storage modules, it protects the submersible pump inside an underground reservoir while providing tool-free pump access through an extra-wide 16” × 16” lid opening. The vault body measures 23”L × 17”W × 25.5”H and accommodates pumps up to 12,500 GPH through both horizontal and vertical intakes.
Constructed from rotationally molded rounded polyethylene — a manufacturing process that creates walls with uniform thickness and no seams or weak points — the vault is built to withstand the full weight of the gravel, AquaBlox, and water column above it for decades. A built-in water level inspection port in the lid lets you check water levels without removing any rocks. Backed by a Limited Lifetime Warranty, it is the industry-standard vault for professional Pondless Waterfall installations.
Key Features & Benefits
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 49000 |
| Vault Body Dimensions (L × W × H) | 23”L × 17”W × 25.5”H |
| Access Opening (Lid) Dimensions | 16” × 16” |
| Maximum Pump Flow | 12,500 GPH (47,000 LPH) |
| Material | Rotationally molded rounded polyethylene |
| Water Intakes | Horizontal AND vertical intakes |
| AquaBlox Compatibility | Small and Large Aquascape AquaBlox® modules |
| Extension | Pondless® Waterfall Vault Extension — SKU 49001 (sold separately) |
| Auto-Fill Valve | Compatible — built-in mounting area for optional Aquascape auto-fill valve |
| Lid Feature | Built-in water level inspection port |
| Applications | Pondless® Waterfalls | RainXchange® | Rainwater Harvesting | Wetland Filters | Swimming Ponds |
| Warranty | Limited Lifetime Warranty |
Frequently Asked Questions
What is the primary purpose of the Aquascape Pondless Waterfall Vault?
The Aquascape 49000 Vault is the central hub of a disappearing waterfall system. It is designed to house and protect your submersible pump from being crushed or clogged by the surrounding stone and gravel in the reservoir. The vault provides a clear, accessible chamber for pump maintenance while ensuring consistent water flow through both horizontal and vertical intakes, preventing cavitation even when overall reservoir water levels vary.
Beyond pondless waterfalls, the vault is also used in RainXchange® rainwater harvesting systems, wetland filters, and swimming pond applications where a protected, accessible pump chamber is required.
Is the Aquascape 49000 compatible with AquaBlox water storage modules?
Yes. The vault is specifically engineered to integrate with both Small and Large Aquascape AquaBlox® modules. The vault sits within the AquaBlox grid, taking the place of several AquaBlox units in the center of the reservoir while the surrounding grid fills with water-storing modules. This modular approach makes installation straightforward: layout the AquaBlox grid, position the vault in the center, and connect the two with standard plumbing.
Can I use this vault for deep reservoirs or large waterfall systems?
Yes. For deeper excavations, use the Aquascape Pondless® Waterfall Vault Extension (SKU 49001) to add height to the vault. The extension is designed for use with Large AquaBlox modules and stacks directly onto the base vault, allowing the vault to reach from the pump chamber at the bottom of the reservoir all the way to the surface access lid. There is no limit to the number of extensions you can stack for exceptionally deep reservoirs.
How does the vault make pump maintenance easier?
The vault features a large 16” × 16” removable lid that sits flush at the surface of your gravel bed. Lifting the lid gives you immediate, clear access to the pump inside without disturbing rocks or disconnecting plumbing. The lid also includes a built-in water level inspection port — a small opening that lets you check reservoir water level without even removing the lid. For winterization, the pump can be lifted out through the lid opening and stored without any plumbing disassembly.
What is the maximum pump flow rate the 49000 Vault can handle?
The Aquascape Pondless Waterfall Vault accommodates pumps with flow rates up to 12,500 GPH (47,000 LPH). The vault’s large interior chamber and dual horizontal/vertical intake design ensure that even the highest-flow pumps in the AquaSurge family always have access to a full water supply without restriction or cavitation.
Does the vault include a place for an Auto-Fill Valve?
Yes. The Aquascape 49000 includes a built-in mounting area for an optional Aquascape Auto-Fill Valve (sold separately). Adding an auto-fill valve ensures your Pondless Waterfall reservoir stays at the correct water level automatically — compensating for evaporation and splash loss without manual refilling. The spacious vault interior also allows check valve assemblies to be housed inside the chamber.
What are the exact dimensions of the Aquascape Pondless Vault?
The vault has two key dimensions:
- Vault body: 23”L × 17”W × 25.5”H — this is the overall size of the vault for basin excavation planning
- Lid opening: 16” × 16” — this is the access hole at the top for pump maintenance
The vault is rotationally molded from rounded polyethylene — a construction method that creates uniform wall thickness and maximum structural strength without seams or weak points.
What warranty does the Aquascape Pondless Waterfall Vault carry?
The Aquascape 49000 Pondless Waterfall Vault carries a Limited Lifetime Warranty from Aquascape Inc., ensuring years of trouble-free use. Contact us at support@pondprodirect.com or (765) 508-4352 for any warranty questions.
Why Buy from Pond Pro Direct?
- Authentic Aquascape products with Limited Lifetime Warranty
- Expert pondless system sizing support — call or text (765) 508-4352, Mon–Fri 9am–5pm EST
- Free shipping on all orders
- Price match guarantee on identical products
- 30-day return period on eligible items
