Aquascape 77000 22" Waterfall Spillway – Formal Sheet Waterfall Weir for Pond & Wall Features
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description

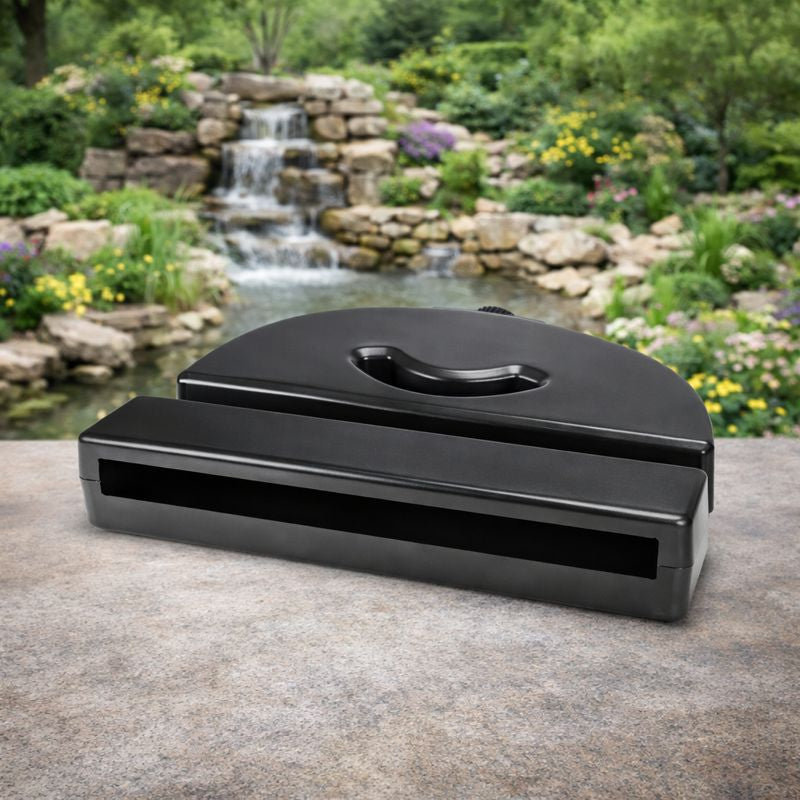

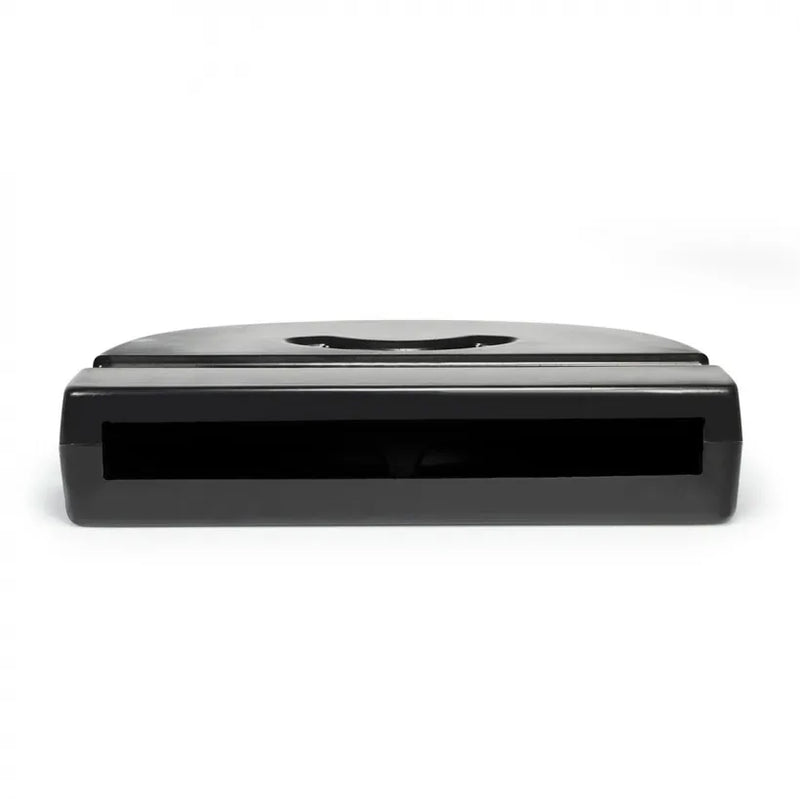

The Aquascape 77000 Waterfall Spillway is a professional-grade, 22-inch wide spillway unit rated for flow rates up to 7,500 GPH. Internal baffles distribute incoming water evenly across the full 22-inch lip for a smooth, consistent sheet-style waterfall without channeling or surging. The compact 17.5” × 24” × 5” housing is strong enough to support direct placement of boulders, gravel, and soil directly on top, making it easy to camouflage into any landscape setting.
Connect the discharge from your pond pump to the rear-mounted 2” bulkhead inlet using either the included 2” PVC slip fitting (for rigid pipe) or the included 1.5” barbed hose fitting (for flexible tubing). The spillway can be built into hardscape walls for a formal sheet waterfall, buried in a natural streambed for a naturalistic cascade, or installed at the edge of a pondless waterfall basin as the system’s starting point. Backed by a Limited Lifetime Warranty.
Ideal For
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 77000 |
| Spillway Opening Width | 22” (56 cm) |
| Maximum Flow Rate | 7,500 GPH |
| Dimensions (L × W × H) | 17.5” × 24” × 5” (unit width 24”; spillway opening 22”) |
| Weight | 8 lbs |
| Inlet Position | Rear of unit (pre-installed 2” bulkhead) |
| Construction | Injection-molded, impact-resistant plastic; boulders/rocks can be placed on top |
| Installation Type | Pondless waterfall | stream start | pond addition | hardscape/formal wall |
| Multiple Unit Use | Yes — install side-by-side for wider waterfalls |

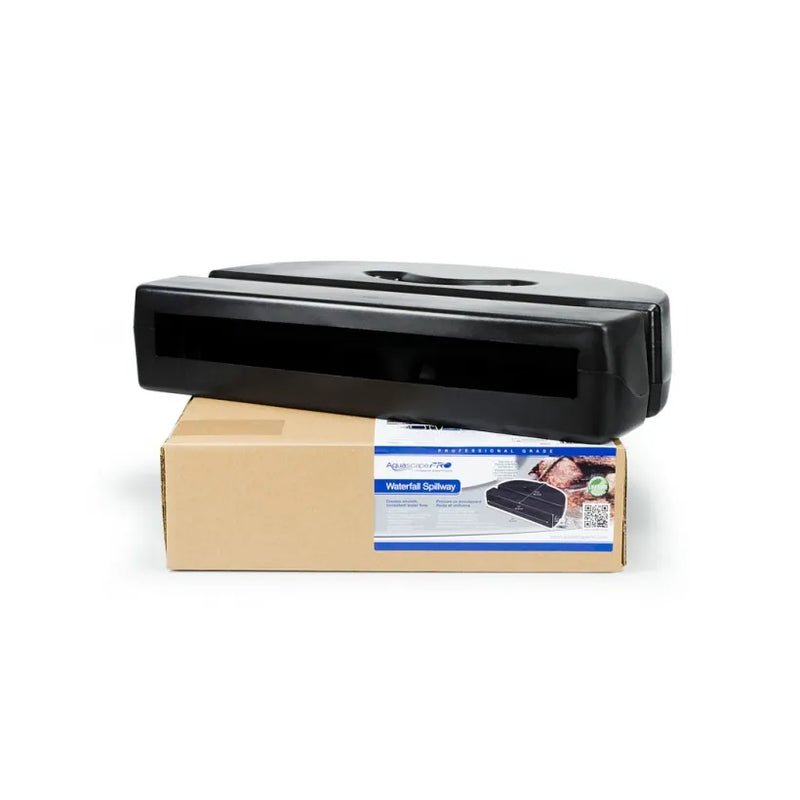

What’s Included
- Aquascape 77000 Waterfall Spillway body with pre-installed 2” rear bulkhead
- 2” PVC slip fitting (for rigid pipe connection)
- 1.5” barbed hose fitting (for flexible tubing connection)
- Installation instructions
Aquascape Waterfall Spillway Family
| Model | SKU | Spillway Width | Max Flow | Inlet |
|---|---|---|---|---|
| Waterfall Spillway 22” ← This | 77000 | 22” | 7,500 GPH | Rear 2” bulkhead |
| Waterfall Spillway 12” | 77023 | 12” | 4,000 GPH | Rear 2” bulkhead |
Both models include the same fittings (2” PVC slip + 1.5” barbed) and carry the Limited Lifetime Warranty. Install two 77000 units side-by-side for a 44” wide waterfall.
Frequently Asked Questions
What is the maximum flow rate for the Aquascape 22" Waterfall Spillway?
The Aquascape 77000 Waterfall Spillway handles flow rates up to 7,500 GPH. The wide 22-inch opening distributes this volume evenly across the full spillway lip, producing a smooth, consistent sheet of water even at high flow rates. For larger waterfall displays, two 77000 units can be installed side-by-side to handle up to 15,000 GPH across a 44-inch waterfall.
How do the internal baffles improve waterfall performance?
The integrated internal baffles are positioned strategically inside the spillway body. When high-velocity water from the pump enters the rear inlet, the baffles diffuse and slow the flow, distributing it evenly across the full 22-inch width. Without baffles, the incoming flow would create a turbulent central surge with slower water at the edges, producing an uneven waterfall with a noticeable hump in the middle. The baffles eliminate this effect, producing a level, even sheet across the entire lip.
Is this spillway compatible with all pond liner types?
Yes. The Aquascape Waterfall Spillway can be used with 45-mil EPDM, PVC, or HDPE pond liners in pondless waterfall applications. The rear-mounted pre-installed 2” bulkhead provides the connection point. Two fitting options are included: a 2” PVC slip fitting (for solvent-welded rigid pipe) and a 1.5” barbed hose fitting (for flexible kink-free tubing). Choose the fitting that matches your plumbing run — both connect to the same pre-installed rear bulkhead.
Can the Aquascape 77000 be used in a pondless waterfall system?
Absolutely. The 77000 is designed specifically as the starting point for pondless disappearing waterfall systems where a biological filter is not required. In a pondless system, the pump draws water from a buried basin reservoir and discharges it up through buried pipe to the rear of the spillway. Camouflage the spillway by placing boulders, gravel, and plant material directly on top of the unit — the durable injection-molded body supports the full weight of large boulders without warping or crushing.
What are the benefits of the structural ribbing on the spillway body?
The ribbed body provides compressive strength that allows heavy rocks, boulders, and even soil loads to be placed directly on top of the spillway for landscape integration. In a naturalistic stream installation, this means the entire unit can be buried and covered with natural materials with only the 22-inch front lip visible — or even built below a rock overhang for a hidden waterfall effect. The ribbing also prevents the body from flexing under hydrostatic pressure when the unit is full, which maintains a perfectly level spillway lip for an even water sheet.
Does this spillway require regular maintenance?
The Aquascape 77000 contains no filter media and requires virtually no routine maintenance. Periodically check that no large debris (leaves, twigs) has accumulated inside the unit that might disrupt the internal baffles. If your installation includes upstream pre-filtration (skimmer or pump vault with a debris screen), debris entry into the spillway body will be minimal. The injection-molded plastic body does not rust, corrode, or degrade UV exposure over time.
