Atlantic 12" Complete Basin Kit – Decorative Fountain Reservoir for Disappearing Water Features & Patio Bubblers
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description

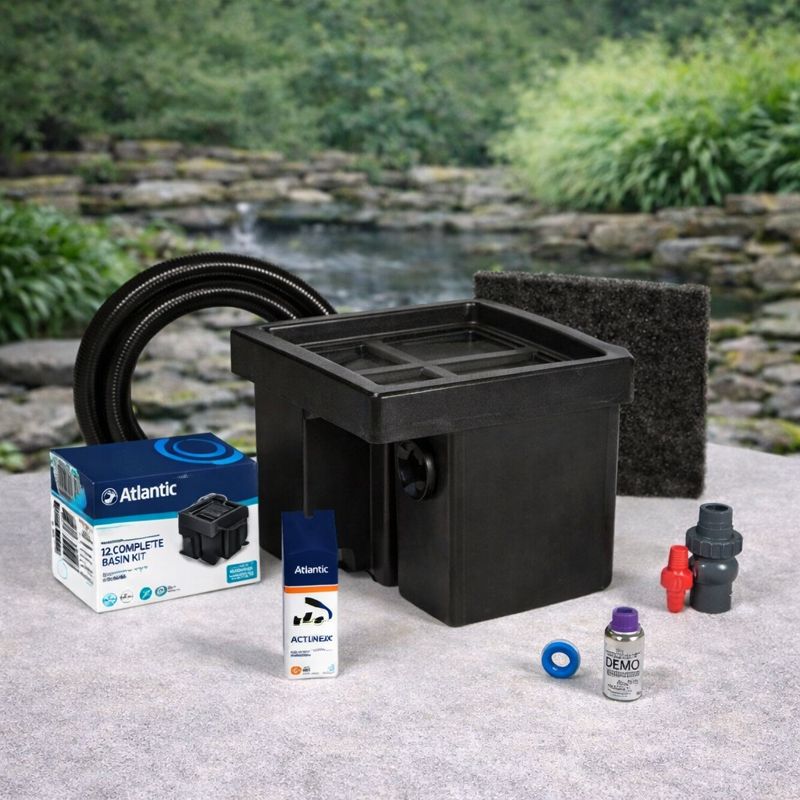

The Atlantic CFBASINKIT12 – 12” Complete Basin Kit provides everything you need to install a formal spillway water feature — except the spillway itself. Designed by Atlantic Water Gardens specifically for all 12” formal spillways (Classic Colorfalls, Color Changing Colorfalls, Stainless Steel Scuppers, WaterWalls, WaterSpouts, Wall Spouts, and Brass Wall Spouts), this professional kit includes the CFBASIN12 basin (18 gallons, 20”×20”×16”H, Lifetime Warranty), the TT1500 TidalWave3 pump (1,640 GPH max, 101W), 1¼” flex PVC hose, anti-splash mat, AF1000 AutoFill, and all plumbing components. Choose your 12” spillway separately and start creating your hardscape water feature today.
How the System Works
What’s Included
CFBASIN12 Basin
- 18 gallons water storage
- 20”L × 20”W × 16”H (square footprint)
- One-piece rigid polyethylene construction
- Integrated Matala-filtered pump chamber
- Built-in plumbing channels for clean installation
- Above or below ground installation
- Lifetime Warranty
TT1500 TidalWave3 Pump
- 1,640 GPH max flow
- 15 ft max head
- 101W | 0.88A | 120V
- 1½” MIPT inlet / 1½” FIPT outlet
- 20 ft power cord
- Clog-resistant | hard water tolerant
- 3-Year Warranty
Plumbing & Accessories
- 1¼” Flex PVC Hose, 10 ft
- CFSPMA12 Anti-Splash Mat
- AF1000 Auto Fill Kit
- Pump discharge kit
- Single union flow control valve
- PVC spray glue
- Thread sealant
Not Included
- 12” spillway (sold separately) — choose any Atlantic 12” Colorfalls, Color Changing Colorfalls, Stainless Steel Scupper, WaterWall, WaterSpout, Wall Spout, or Brass Wall Spout
- Wall/hardscape structure
- GFCI-protected outlet (required)
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / Model | CFBASINKIT12 | Atlantic item 73849 | PPD: 05804 |
| Basin Dimensions | 20”L × 20”W × 16”H (square footprint; “12” = compatible spillway width) |
| Basin Capacity | 18 gallons |
| Basin Construction | One-piece rigid polyethylene; integrated Matala-filtered pump chamber; built-in plumbing channels |
| Basin Installation | Above or below ground |
| Basin Warranty | Lifetime |
| Pump | Atlantic TT1500 TidalWave3 |
| Pump Max Flow | 1,640 GPH |
| Pump Max Head | 15 ft |
| Pump Power | 101W | 0.88A | 120V |
| Pump Ports | 1½” MIPT inlet / 1½” FIPT outlet |
| Pump Cord | 20 ft |
| Pump Warranty | 3-Year |
| Flex PVC Hose | 1¼” diameter × 10 ft |
| AutoFill | AF1000 Auto Fill Kit |
| Splash Mat | CFSPMA12 Anti-Splash Mat |
| Compatible Spillways | All 12” Atlantic spillways: Colorfalls, Color Changing Colorfalls, Stainless Steel Scuppers, WaterWalls, WaterSpouts, Wall Spouts, Brass Wall Spouts |
| Shipping | Truck freight |
Atlantic Formal Spillway Basin Kit Family
| Kit | Basin Dimensions | Capacity | Pump | Max Flow | For Spillway |
|---|---|---|---|---|---|
| 12” (this kit) CFBASINKIT12 |
20”×20”×16”H | 18 gal | TT1500 | 1,640 GPH | 12” spillways |
| 24” CFBASINKIT24 |
44”W×22”D×16”H | 33 gal | TT3000 | 3,000 GPH | 24” spillways |
| 36” CFBASINKIT36 |
56”W×24”D×16”H | 42 gal | TT4000/TT6000 | 4,000–6,000 GPH | 36” spillways |
Key Features & Benefits
- Formal spillway precision: Engineered by Atlantic Water Gardens specifically for all 12” formal spillways — just add the spillway of your choice
- One-piece basin construction: No assembly; built-in plumbing channels and integrated Matala-filtered pump chamber for clean, fast installation
- TT1500 TidalWave3 efficiency: 1,640 GPH at just 101W — asynchronous motor delivers more flow per watt than conventional pumps
- AF1000 AutoFill: Automatically maintains water level; no manual monitoring required under normal evaporation conditions
- Hardscape versatile: Installs above or below ground; suitable for retaining walls, garden blocks, deck features, and patio hardscape
- Lifetime basin warranty: Professional-grade rigid polyethylene basin backed for the life of the product
- Complete system: Basin, pump, pipe, splash mat, AutoFill, flow valve, glue, and sealant — just add the spillway
Perfect For
- Retaining wall water features with 12” formal spillways
- Hardscape and garden block wall installations
- Patio, courtyard, and outdoor living space water walls
- Pool surrounds and landscape focal points
- Indoor water wall features (with appropriate waterproofing)
Frequently Asked Questions
What is included in the Atlantic CFBASINKIT12?
The CFBASINKIT12 is a complete basin kit — everything needed to install a 12” formal spillway except the spillway itself. The kit includes:
- CFBASIN12 basin — 18-gallon, 20”L×20”W×16”H, one-piece rigid polyethylene with integrated Matala-filtered pump chamber and built-in plumbing channels. Lifetime Warranty.
- TT1500 TidalWave3 pump — 1,640 GPH max, 101W, 15 ft max head, 20 ft cord, 1½” MIPT inlet / 1½” FIPT outlet. 3-Year Warranty.
- 1¼” Flex PVC Hose, 10 ft
- CFSPMA12 Anti-Splash Mat
- AF1000 Auto Fill Kit
- Pump discharge kit
- Single union flow control valve
- PVC spray glue
- Thread sealant
The spillway (Colorfalls, Color Changing Colorfalls, Stainless Steel Scupper, WaterWall, etc.) is sold separately.
Which spillways are compatible with the CFBASINKIT12?
The CFBASINKIT12 is designed for all 12” Atlantic Water Gardens formal spillways, including:
- 12” Classic ColorFalls
- 12” Color Changing ColorFalls (InfiColor)
- 12” Stainless Steel Scuppers
- 12” Copper Scuppers
- 12” WaterWalls
- 12” WaterSpouts
- 12” Wall Spouts (brass)
The CFBASIN12 basin (20”×20”×16”H) is sized to capture splash from any of these 12” spillways. Need a larger spillway? The CFBASINKIT24 (33-gal basin, TT3000 pump) and CFBASINKIT36 (42-gal basin) cover 24” and 36” spillways respectively.
How does the TT1500 pump perform in this system?
The Atlantic TidalWave3 TT1500 is an asynchronous pump delivering up to 1,640 GPH at a maximum head of 15 ft, consuming just 101 watts. Its asynchronous motor moves more water per watt than conventional direct-drive pumps.
Key specs:
- Max flow: 1,640 GPH
- Max head: 15 ft
- Power: 101W | 0.88A | 120V
- Ports: 1½” MIPT inlet / 1½” FIPT outlet
- Cord: 20 ft
- Dimensions: 8”L × 5¼”W × 6¼”H
- Warranty: 3-Year
The TT1500 is designed to fit within the CFBASIN12’s integrated pump chamber and is specifically sized to deliver the sheer curtain flow required for a 12” formal spillway at typical installation heights of 16” to a few feet above the basin.
Can the Atlantic 12” Basin be built into a retaining wall?
Yes. The CFBASIN12 rigid basin is designed for integration with garden block and hardscape retaining wall construction. Its one-piece construction and built-in plumbing channels accommodate installation directly within a block wall system. The basin can be set at grade with the wall built around it, or installed slightly below grade for a more concealed look.
For above-ground or deck applications, the basin can also be placed on a level surface with the basin deck flush to the paving or stone surround. The Anti-Splash Mat covers the deck for a clean, finished appearance.
Does the AF1000 AutoFill eliminate manual refilling?
The AF1000 AutoFill valve connects to a standard garden hose or irrigation supply line and automatically tops off the basin as water evaporates or is lost to minor splash. Under normal operating conditions with the CFSPMA12 Anti-Splash Mat installed, you should not need to manually refill the 18-gallon basin.
Note: The AF1000 requires a connected water supply to function. It does not store water — it feeds water into the basin on demand as the level drops below a set threshold. Check the supply connection periodically during the season to confirm it remains active.
What are the basin dimensions — is "12 inch" the diameter of the basin?
No — the “12 inch” refers to the compatible spillway width, not the basin diameter. The CFBASIN12 basin is 20”L × 20”W × 16”H (a square footprint, not a round basin).
This sizing is consistent across all three Atlantic basin kits:
- 12” kit (CFBASINKIT12): 20”×20”×16”H basin — for 12” spillways
- 24” kit (CFBASINKIT24): 44”W×22”D×16”H basin — for 24” spillways
- 36” kit (CFBASINKIT36): 56”W×24”D×16”H basin — for 36” spillways
Plan your excavation or hardscape cutout based on the 20”×20” basin footprint, not the spillway width. The basin needs to be positioned directly below the spillway to catch all water flow.
What is the warranty on the CFBASINKIT12 components?
- CFBASIN12 Basin: Lifetime Warranty — professional-grade rigid polyethylene basin backed for the life of the product
- TT1500 TidalWave3 Pump: 3-Year Warranty — Atlantic Water Gardens standard TidalWave3 pump warranty
For warranty service, contact Pond Pro Direct at (765) 508-4352 — we carry authentic Atlantic Water Gardens products with full manufacturer warranty support.
How does the CFBASINKIT12 compare to the 24" and 36" kits?
Atlantic offers three sizes in their formal spillway basin kit family:
- CFBASINKIT12 (this kit): 20”×20”×16”H | 18 gal | TT1500 (1,640 GPH, 101W) — for 12” spillways. Compact footprint; suitable for smaller walls and tighter hardscape spaces.
- CFBASINKIT24: 44”W×22”D×16”H | 33 gal | TT3000 (3,000 GPH) — for 24” spillways. Nearly double the basin width; significantly higher flow rate for a wider sheer curtain.
- CFBASINKIT36: 56”W×24”D×16”H | 42 gal | TT4000/TT6000 — for 36” spillways. The largest format; creates a dramatic wide-format sheer descent.
Choose the kit that matches your spillway width. All three kits include the same core components: basin, TidalWave3 pump, flex PVC hose, splash mat, AF1000 AutoFill, flow valve, glue, and sealant.
Can the basin be installed above ground or on a deck?
Yes. The CFBASIN12 can be installed above or below ground. For above-grade installations (deck features, patio surfaces, or raised hardscape), set the basin on a level, stable surface and build your stone, tile, or block surround directly against the basin exterior. The basin’s flat deck accepts stone or gravel covering for a concealed look at grade.
For in-ground installations, excavate to the basin dimensions (20”×20”×16”H) plus a few inches for leveling material. Set the basin level, backfill around the sides, and install the splash mat and stone cover over the deck.
Does this kit include the Colorfalls spillway?
No — the CFBASINKIT12 is the basin and pump kit only. The spillway (ColorFalls, Color Changing ColorFalls, Stainless Steel Scupper, WaterWall, etc.) is sold separately. This gives you the flexibility to choose any 12” Atlantic spillway that suits your design.
If you prefer a complete all-in-one package that includes both the spillway and basin kit, Atlantic offers complete ColorFalls kits (e.g., CFKIT12W for Crystal White ColorFalls + basin + pump) as an alternative. Contact us at (765) 508-4352 and we can help you choose the right combination.
Why Buy from Pond Pro Direct?
- Authentic Atlantic Water Gardens products — Lifetime basin warranty fully supported
- Formal spillway specialists — expert guidance on spillway and basin kit selection Mon–Fri 9AM–5PM EST
- Price Match — we will beat lower prices from authorized retailers
- Complete system guidance — we help you pair the right spillway with the right basin kit
Atlantic CFBASINKIT12 — 18-gal basin (20”×20”×16”H, Lifetime warranty) | TT1500 TidalWave3 (1,640 GPH, 101W, 15 ft head, 20 ft cord) | 1¼” flex PVC hose, AF1000 AutoFill, CFSPMA12 splash mat, flow valve, glue & sealant. Spillway sold separately. Ships truck freight &mdash
