Atlantic Water Gardens 74238 Small Pond Kit – Complete Backyard Ecosystem with Skimmer, BioFalls & Pump
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Atlantic Water Gardens 74238 is a complete "everything-in-the-box" pond system for building a 6'×11' backyard ecosystem pond. Atlantic's pre-matched components eliminate the guesswork of mixing and sizing individual parts: the PS3900 Oasis Skimmer, BF1600 FilterFalls™ (16" spillway), and TT2000 TidalWave3 Pump (2,640 GPH max, 115W) are engineered to work together. The kit includes a 10'×15' 45-mil EPDM liner (20-year warranty), 12'×12' underlayment, TR215CV Triton Check Valve, AF1000 Auto Fill, LF1100 FallsFoam, and a complete installation hardware kit. The result: a 6'×11' pond holding approximately 750 gallons — a size that supports aquatic plants, goldfish, and a modest koi population within a manageable footprint.

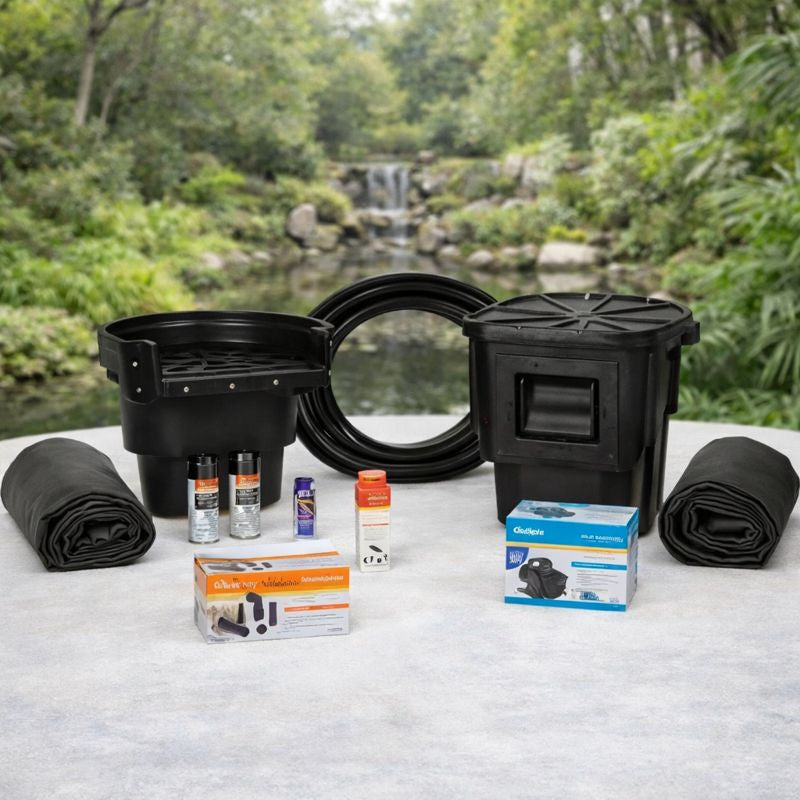

What's Included — Atlantic PK161015 Complete Kit
Filtration System
- BF1600 FilterFalls™ — 16" spillway; 21.5"W×19.5"D×17.75"H; pump flow 1,000–3,900 GPH; max pond 1,250 gal.; 1.5" FIPT bulkhead; filter pads + media bag included; bio-media NOT included; Lifetime warranty on enclosure
- PS3900 Oasis Skimmer — 6" weir; 17.75"W×19.5"D×19.5"H; max pump flow 3,900 GPH; 200 sq ft surface area; stainless-steel framed trap net + Matala filter mat; auto-fill ready; Lifetime warranty on enclosure
Pump & Plumbing
- TT2000 TidalWave3 Pump — 2,640 GPH max; 120V; 1.0A; 115W; 20' grounded cord; 1.5" FIPT outlet; 8"L×5.25"W×6.25"H; asynchronous motor; 3-year warranty
- TR215CV Triton Check Valve — prevents pump reverse siphon; mounts to pump outlet
- 1.5"×25' Flexible PVC Tubing — pre-cut for kit length; connects skimmer to FilterFalls
- Plumbing Fittings — thread sealant, PVC glue, and installation fittings
Liner & Base
- 10'×15' 45-mil EPDM Liner — fish-safe; UV and ozone resistant; flexible in cold; 20-year warranty
- 12'×12' Heavy-Duty Underlayment — non-woven protective fabric; prevents puncture from beneath
Accessories
- AF1000 Auto Fill Valve (#74246) — automatically tops off pond as water evaporates
- LF1100 FallsFoam — 12 oz. waterfall foam sealant; seals liner at FilterFalls opening
- Not included: biological filter media (lava rock, bio-balls, bio-rocks — order separately); LED pond lighting (included in PK191515 and larger kits)
Technical Specifications
| Specification | Detail |
|---|---|
| Model / Item | Atlantic Item #74238 |
| Pond Size | 6'L × 11'W (approximately) |
| Liner Size | 10'×15' — 45-mil EPDM, fish-safe |
| Liner Warranty | 20-year |
| Underlayment | 12'×12' heavy-duty (included) |
| Pond Depth | ~1.5' recommended | ~750 gallons at 1.5' depth |
| Skimmer | PS3900 — 6" weir; 17.75"W×19.5"D×19.5"H; 3,900 GPH max; 200 sq ft; Lifetime warranty |
| FilterFalls™ | BF1600 — 16" spillway; 21.5"W×19.5"D×17.75"H; 1,000–3,900 GPH; 1,250 gal. max; bio-media NOT included; Lifetime warranty |
| Pump | TT2000 TidalWave3 — 2,640 GPH max; 120V; 1.0A; 115W; 20' cord; 3-year warranty |
| Tubing | 1.5" ID × 25' flexible PVC |
| Check Valve | TR215CV Triton Check Valve (included) |
| Auto Fill | AF1000 Auto Fill Valve (#74246) (included) |
| FallsFoam | LF1100 12 oz. FallsFoam sealant (included) |
| LED Lighting | Not included (included in PK191515 and larger kits) |
| Brand | Atlantic Water Gardens / Atlantic-Oase |
BF1600 FilterFalls™ — Understanding What's Included and What's Not
The BF1600 FilterFalls™ ships with: the enclosure body, two bio-tech filter pads, a media bag for holding loose biological media, a 1.5" FIPT bulkhead fitting, a one-piece liner attachment flange, and an installation hardware kit. What is NOT included in the kit is the biological media that goes inside the media bag — lava rock, bio-balls, or bio-rocks. Atlantic designs the BF1600 with an expandable chamber so you can add more media as your pond matures and fish load grows. For a newly built 6'×11' pond, a single bag of Atlantic bio-balls or a small quantity of lava rock is a suitable starting media load for the BF1600. Call us for current bio-media recommendations and sizing: (765) 508-4352.
TT2000 TidalWave3 Pump — Why Atlantic Uses It in This Kit
The TT2000 is Atlantic's asynchronous (mag-induction + direct-drive geometry) pump platform. At a maximum of 2,640 GPH drawing only 115W, it delivers more flow per watt than conventional direct-drive pumps. For the PK161015's 6'×11' pond, the TT2000 turns over the pond's ~750-gallon volume approximately 3.5× per hour at a typical 5' head — well above the minimum 1× per hour target for healthy ecosystem function. The pump is sized to the PS3900 skimmer and BF1600 FilterFalls as a matched set — it runs comfortably within the FilterFalls' 1,000–3,900 GPH operating window. Key maintenance note: the TT-series pump has a rotor screen that is water-cooled; keep the screen clean to prevent overheating and extend pump life.
Atlantic Small Water Garden Kit Series
Not sure which kit size fits your space? A general sizing rule: add 4' to each pond dimension to determine minimum liner size, then verify you have enough yard for the skimmer and FilterFalls positions. Call us for layout planning: (765) 508-4352.
Frequently Asked Questions
What exactly is included in the Atlantic PK161015 kit?
The PK161015 (Atlantic Item #74238) includes: 10'×15' 45-mil EPDM liner (20-year warranty), 12'×12' heavy-duty underlayment, BF1600 FilterFalls™ (16" spillway, filter pads and media bag included — bio-media NOT included), PS3900 Oasis Skimmer (6" weir, Matala mat + stainless net), TT2000 TidalWave3 Pump (2,640 GPH max, 115W, 3-year warranty), TR215CV Triton Check Valve, AF1000 Auto Fill valve, LF1100 FallsFoam (12 oz.), 1.5"×25' flexible PVC tubing, and an installation kit (fittings, thread sealant, PVC glue).
Not included: biological filter media for the FilterFalls (lava rock, bio-balls — sold separately); LED pond lighting (included in PK191515 and larger kits).
What pond size does the PK161015 actually build?
The PK161015 builds a pond 6 feet wide by 11 feet long, approximately 1.5 feet deep — holding roughly 750 gallons. The kit's 10'×15' liner size is larger than the pond footprint because the extra liner material is needed to wrap up the sides of the excavation, seal against the skimmer face, and create the liner attachment at the FilterFalls opening. Plan your excavation for a 6'×11' footprint. Do not excavate to 10'×15' — that is the liner dimension, not the pond size.
Why is biological filter media not included?
Atlantic designs the BF1600 FilterFalls™ with an oversized, expandable chamber. The media bag and filter pads are included — but the actual biological media (lava rock, bio-balls, bio-rocks) is sold separately. This is intentional: different pond builders prefer different media types, and the expandable design allows you to add more media as your pond matures and fish population grows. For a new 6'×11' pond, a 5–10 lb bag of Atlantic bio-balls or a similar quantity of lava rock is a good starting load. Call us for current media pricing: (765) 508-4352.
What are the TT2000 pump specs and energy costs?
The TT2000 TidalWave3 Pump delivers up to 2,640 GPH at maximum flow while drawing 115 watts (1.0 amp, 120V). It includes a 20-foot grounded power cord and a 1.5" FIPT outlet — a direct fit for the 1.5"×25' tubing in this kit. Atlantic's TT-series asynchronous motor platform pumps more water per watt than conventional direct-drive designs. At 115W running 24/7, this pump costs approximately $0.28–$0.35 per day in electricity at typical US rates. The pump carries a 3-year warranty.
Does this kit include pond lighting?
No — the PK161015 does not include LED pond lighting. If you want illuminated waterfall and pond features, the PK191515 includes two SOLW2 LED pond lights and a SOL30x4 transformer as part of its component set. Alternatively, Atlantic's LED lighting can be added to any pond build at installation. Call us to discuss lighting options for the PK161015: (765) 508-4352.
How do I winterize the PK161015's TT2000 pump?
The TT2000 is an asynchronous submersible pump with a water-cooled rotor. Winterization:
- Remove the pump from the PS3900 skimmer when sustained freezing temperatures arrive.
- Rinse the pump thoroughly — clear the rotor screen of debris and algae.
- Store the pump in a frost-free location (garage, basement) for winter. Do not leave the pump submersed in a freezing pond.
- Drain the 1.5" PVC tubing completely to prevent freeze cracking.
- The PS3900 skimmer and BF1600 FilterFalls should be drained; remove and store the filter pads and media bag indoors to preserve the bacterial colonies if restarting in spring.
- For fish over-winter, install a de-icer or aerator to maintain an ice-free hole.
Why Buy From Pond Pro Direct?
- Authorized Atlantic Water Gardens / Atlantic-Oase dealer — full manufacturer warranty support on all components.
- Component expertise — our team can advise on bio-media selection for the BF1600, LED lighting add-ons, and kit sizing for your specific yard.
- 30-day return period. Price Match Guarantee. Call or text Mon–Fri 9 AM–5 PM EST.
Atlantic PK161015 (Item #74238): builds a 6'×11' backyard pond (~750 gal.). Includes 10'×15' 45-mil EPDM liner (20-yr warranty), 12'×12' underlayment, BF1600 FilterFalls™ (16", Lifetime warranty; bio-media sold separately), PS3900 Skimmer (6" weir, Lifetime warranty), TT2000 TidalWave3 Pump (2,640 GPH, 115W, 3-yr warranty), TR215CV check valve, AF1000 auto fill, LF1100 FallsFoam, 1.5"×25' tubing, and installation kit.
Questions about bio-media selection, kit sizing, or adding LED lighting? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
