Description

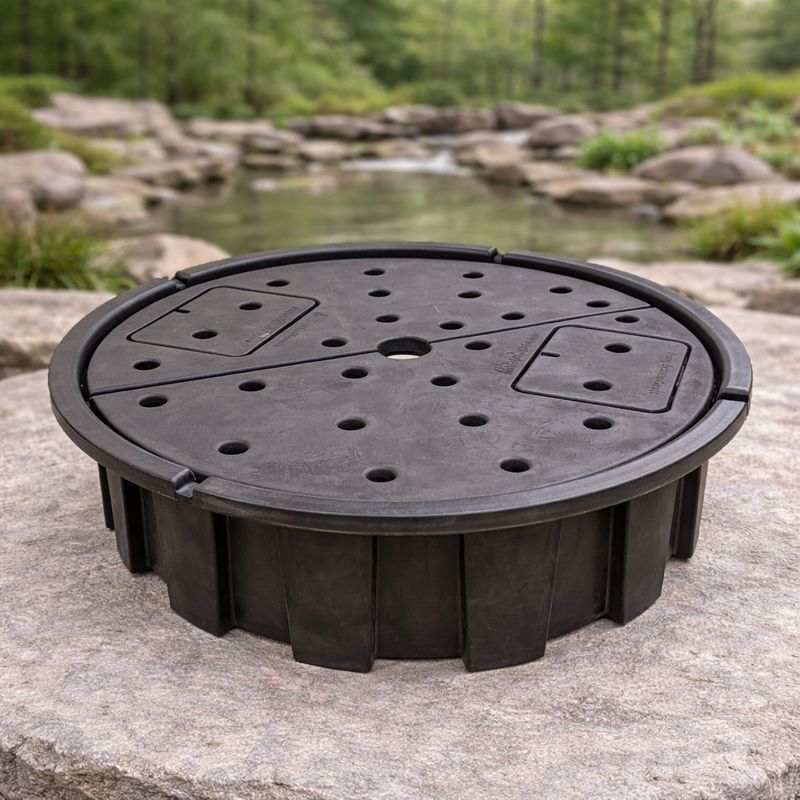

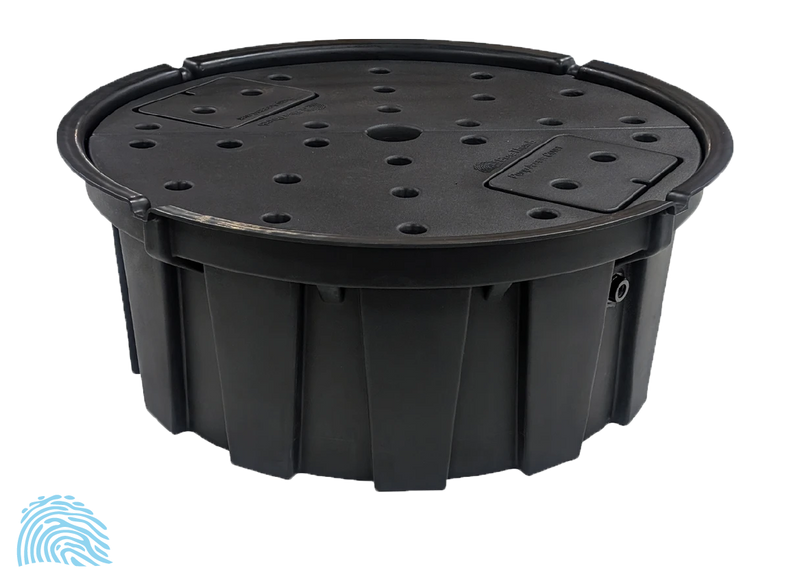

The Blue Thumb Achelous AquaBox® 36” Round (SKU AB36AB) is a patented, in-house manufactured fountain basin reservoir designed for medium-sized disappearing water features including basalt columns, bubbling rocks, urn and pottery fountains, and stacked slate installations. The basin holds 60 gallons of water and supports a maximum static load of 1,000 lbs in its base configuration — with additional support columns available for heavier fountain features. The overall basin measures 39.5” diameter × 16” high (with lip); the grate inner seat is 36” diameter × 2.8”H in two removable halves, allowing pump access without disturbing fountain elements above. Constructed from UV-stabilized, freeze-thaw resistant HDPE. Kit includes the reservoir basin with four molded supports, 2-piece grate, PVC center support column, and pump access cover. Lifetime Warranty. Made in the USA. Oversized item — shipping surcharge applies.
Why Choose the Blue Thumb Achelous AquaBox® 36"?
- Patented AquaBox® design — in-house USA manufacturing: Blue Thumb manufactures AquaBox basins in-house at their US facility. The patented design uses a reinforced HDPE structure with four integrated molded supports that distribute fountain weight across the basin floor rather than concentrating it at a single point.
- 60-gallon reservoir — sized for continuous operation: The 60-gallon water capacity provides ample volume for single or multi-element fountain installations, minimizing evaporation-related refill frequency and ensuring the submersible pump never runs dry under normal operating conditions.
- 1,000 lb maximum static load (base configuration): Engineered to support natural basalt columns, heavy ceramic urns, and stone fountain elements. Additional PVC support columns (sold separately) can be added to increase capacity for heavier features.
- 2-piece removable grate — independent pump access: The grate splits into two halves. Remove one half to reach the pump and plumbing without disturbing fountain elements positioned on the other half — no disassembly required for routine maintenance.
- PVC center support column included: The primary load-bearing column is included in the kit, transferring fountain weight directly to the basin floor. Additional columns are available as accessories for heavier configurations.
- Pressurized, buried, or surface-level installation: The rigid HDPE basin can be buried flush with grade for a full disappearing effect, partially buried, or set at grade level with decorative stone surround. No EPDM liner required.
- Lifetime warranty: Blue Thumb backs the Achelous AquaBox® with a lifetime warranty — reflecting confidence in the HDPE construction and in-house production standards.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / MPN | AB36AB |
| Overall Dimensions | 39.5” dia. × 16”H (with lip) |
| Grate / Inner Seat | 36” dia. × 2.8”H (2-piece removable halves) |
| Water Capacity | 60 gallons |
| Max Static Load | 1,000 lbs (base configuration) — add support columns for heavier loads |
| Material | HDPE (High-Density Polyethylene) — UV-stabilized, freeze-thaw resistant |
| Unit Weight | Approximately 45 lbs |
| Shape | Round — suitable for medium single or multi-element fountain features |
| Kit Includes | Reservoir basin with 4 molded supports • 2-piece grate basin cover (36”) • PVC center support column • Pump access cover |
| Installation | Buried to grade, partially buried, or surface-level. No EPDM liner required. |
| Warranty | Lifetime Warranty |
| Made in | USA (Blue Thumb in-house production) |
| Shipping | Oversized item |

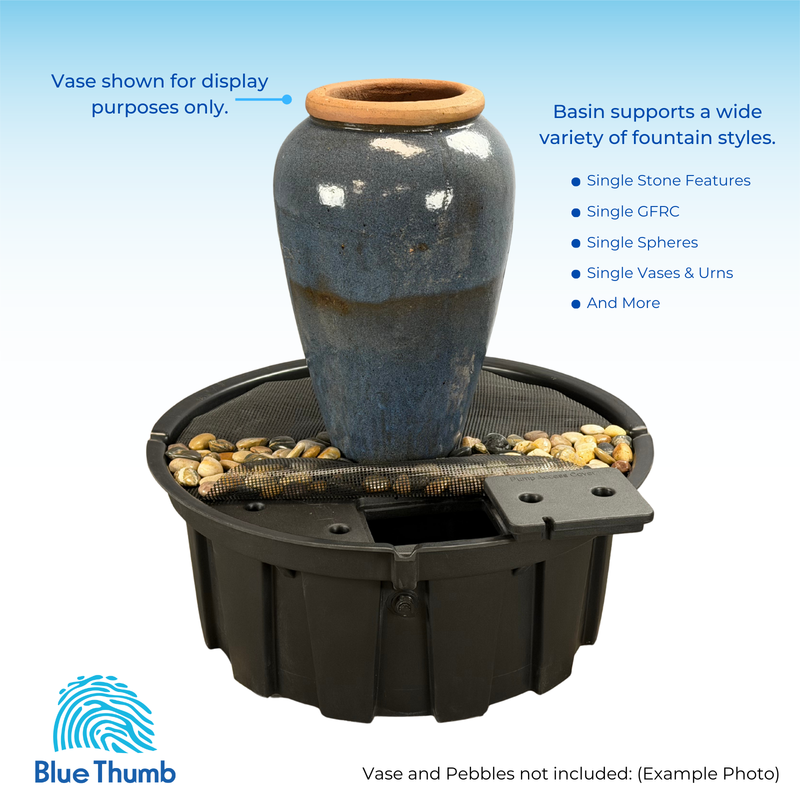

AquaBox® Family — Choose by Fountain Size
All Achelous basins include: 2-piece removable grate, PVC center support column, pump access cover, HDPE construction, Lifetime Warranty, Made in USA.
| Model | SKU | Overall Dims | Capacity | Max Load | Best For |
|---|---|---|---|---|---|
| Achelous 36” Round (this) | AB36AB | 39.5”×16”H | 60 gal | 1,000 lbs | Medium single-element fountains |
| Achelous 48” Round | AB48AB | 51.5”×16”H | 95 gal | 1,200 lbs | Large / triple-element fountains |
| Altum 52”×52” Square | — | 52” square | 220 gal | 2,500 lbs | Multiple large features / commercial |
Installation Overview
- Excavate area to minimum 39.5” diameter × 16” deep for flush-grade installation (allow for compacted gravel base)
- Set basin on level, compacted gravel base; verify level in all directions
- Install pump and plumbing through access ports; route tubing through grate center or column
- Place PVC center support column; position 2-piece grate over basin
- Cover grate with 4–5 bags of polished pebbles (recommended) to achieve disappearing effect
- Set fountain feature on grate center; connect tubing and secure
- Fill basin to operating level; plug in pump and verify flow
- For heavier features: install additional support columns before placing fountain element
Recommended Add-Ons
- Pump (600–800 GPH recommended) — Blue Thumb 36” fountain kit uses 800 GPH pump for typical single-feature installations
- Auto Fill Valve + 30 psi Pressure Regulator — maintains water level automatically; eliminates manual top-up
- Mesh Sediment Screen — reduces debris passing through grate into pump
- Splash Apron — prevents water loss at basin edges in wind or high-flow features
- Polished Pebbles (4–5 bags) — required for grate coverage and disappearing effect
- Additional PVC Support Columns — for fountain features exceeding base 1,000 lb rating
- LED Fountain Lighting — submersible or up-lighting for evening feature illumination
Frequently Asked Questions
What is the weight capacity of the Blue Thumb Achelous AquaBox® 36"?
The Achelous AquaBox® 36” supports a maximum static load of 1,000 lbs in base configuration (with the included PVC center support column). This accommodates most natural basalt columns, heavy ceramic urns, and stacked stone elements within the 36” footprint.
For heavier fountain features, additional PVC support columns (sold separately) can be added to increase load capacity. If your fountain installation exceeds 1,000 lbs or involves multiple heavy elements, consider the 48” Achelous (1,200 lbs rated) or contact us for guidance on support column configurations.
How many gallons of water does the 36" AquaBox hold?
The Blue Thumb Achelous AquaBox® 36” (AB36AB) holds 60 gallons. This capacity is sized to support continuous fountain operation with a submersible pump while providing a buffer against normal evaporation losses.
For pump sizing: a standard single-element fountain installation typically requires 600–800 GPH of pump flow to generate good visual effect. The 60-gallon reservoir ensures the pump has adequate water volume to run continuously without risk of running dry under normal conditions. An Auto Fill Valve is recommended for automatic top-off.

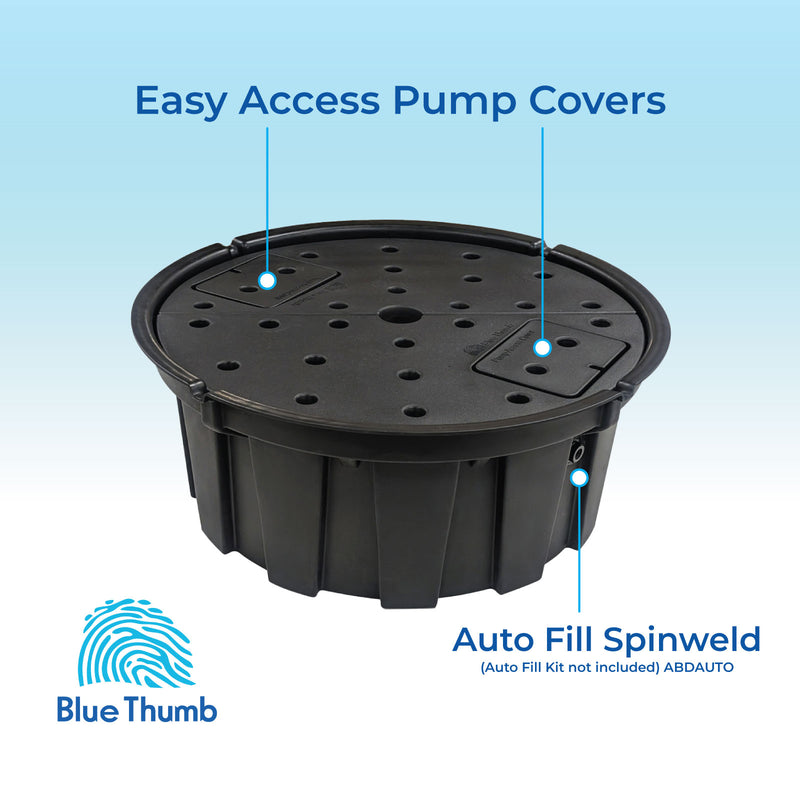

Is the pump easily accessible for maintenance?
Yes. The 2-piece grate design allows you to remove one half of the grate independently while leaving fountain elements undisturbed on the other half. The dedicated pump access cover (included) provides a dedicated opening directly above the pump location.
This means routine pump maintenance — cleaning the intake screen, clearing debris, or replacing the pump — requires moving only a portion of the decorative pebbles above one grate half, not disassembling the entire fountain installation.
What material is the Achelous AquaBox® made from?
The Achelous AquaBox® is constructed from HDPE (High-Density Polyethylene) — the same material used for professional underground water containment applications. HDPE is:
- UV-stabilized for outdoor exposure without degradation
- Freeze-thaw resistant — suitable for climates with harsh winters
- Chemically resistant to pond treatments, algaecides, and water additives
- Rated for underground burial without structural compromise
Blue Thumb produces AquaBox® basins in-house at their US facility, maintaining direct quality control over the HDPE formulation and molding process.
Does this basin require an additional pond liner?
No. The Achelous AquaBox® is a self-contained rigid HDPE reservoir — no EPDM pond liner or additional waterproofing material is required. The basin itself is the waterproof containment vessel.
This eliminates the need to cut, fold, and anchor flexible liner material during installation, significantly simplifying the build process and creating a more permanent, durable foundation than flexible-liner-based disappearing fountain installations.
What are the exact dimensions I need to dig for installation?
For a flush-grade (disappearing waterfall) installation:
- Hole diameter: minimum 39.5” — the overall outer diameter with lip (not the 36” grate dimension)
- Hole depth: minimum 16” plus 2–3” for a compacted gravel base
- Allow an additional 2–3” diameter clearance around the basin perimeter for backfill and leveling
- Total recommended excavation: approximately 42–44” diameter × 18–19” deep
After setting the basin, add 4–5 bags of polished pebbles to cover the grate and create the disappearing effect. The grate sits 2.8” above the basin lip, so the top of the finished pebble bed will sit approximately 3” above grade.
Why Buy Blue Thumb Products from Pond Pro Direct?
- Authentic Blue Thumb products with full Lifetime Warranty and US-based support
- Pond design expertise — call for pump sizing, support column configuration, and complete fountain system design
- Price Match on identical products from authorized Blue Thumb retailers
Blue Thumb Achelous AquaBox® 36” (AB36AB) — 60-gallon reservoir | 1,000 lb max static load | 39.5”×16”H overall | 36”×2.8”H grate (2-piece) | HDPE | ~45 lbs | includes basin + 4 molded supports + 2-piece grate + PVC column + pump cover | Lifetime Warranty | Made in USA.
Questions about fountain sizing, pump selection, or support column configurations? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
