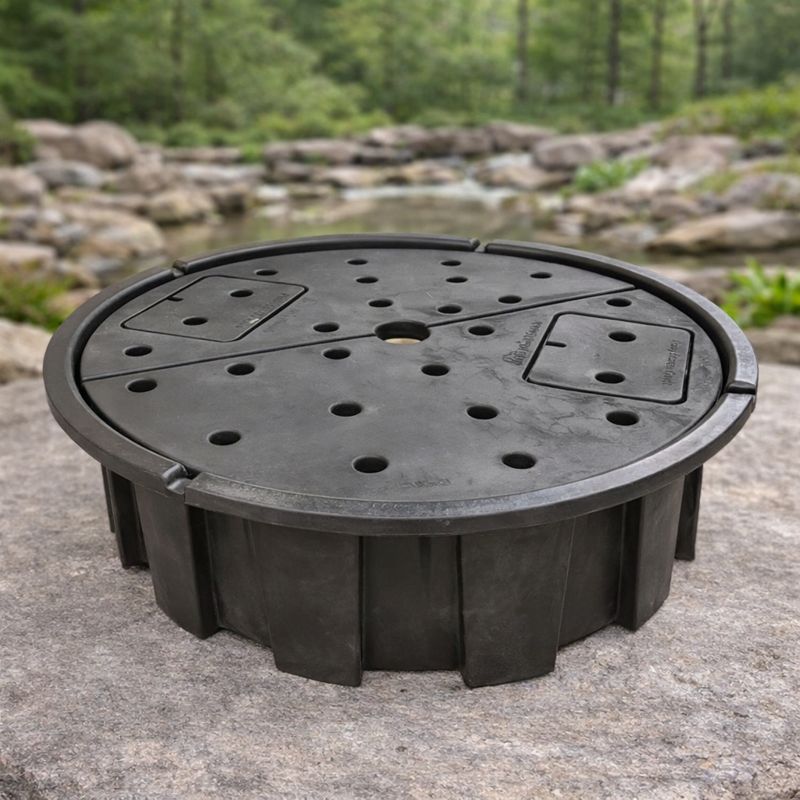

Blue Thumb AB48AB 48" Round AquaBox Waterfall Basin – Large Pondless Reservoir for Disappearing & DIY Water Features
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Blue Thumb AB48AB Achelous AquaBox® 48” Round Basin is a patented, Made in USA, professional-grade pondless fountain reservoir engineered for medium to large water features. The Achelous AquaBox holds 95 gallons, supports a maximum static load of 1,500 lbs, and measures 51.5” overall diameter × 16” deep (with a 48” grate inner seat). Constructed from HDPE (High-Density Polyethylene) for freeze-thaw stability and decades of underground service — no additional liner required. Includes the 2-piece grate, PVC center support column, pump access cover, and mesh sediment screen. Backed by a Lifetime Warranty.
Why Choose the Blue Thumb Achelous AquaBox 48”?
- Patented AquaBox® design — Made in USA: Blue Thumb manufactures these basins in-house in the United States. The patented design features four integrated molded support columns that distribute weight evenly across the basin floor — a structural innovation that distinguishes the AquaBox from non-patented competitors.
- 1,500 lb maximum static load: The reinforced HDPE structure supports up to 1,500 lbs of static fountain weight (Blue Thumb official spec). For installations approaching or exceeding this load, optional additional PVC support columns are available.
- 95-gallon reservoir: The large water volume keeps your fountain pump continuously submerged and running coolly, reducing the frequency of manual water top-offs and protecting pump impellers from cavitation in hot weather.
- 2-piece removable grate: The grate divides into two manageable half-circle sections, each easily handled by one person. Remove them individually for pump access, deep cleaning, or seasonal maintenance without disturbing the full fountain assembly.
- HDPE construction — no liner needed: High-Density Polyethylene is freeze-thaw stable, UV-resistant, and chemical-resistant to pond treatments and algaecides. The self-contained HDPE body eliminates the need for 45-mil EPDM liner, simplifying installation significantly.
- Mesh sediment screen included: A plastic mesh screen reduces debris falling through the grate into the reservoir, keeping your pump intake clean and extending service intervals.
- Lifetime Warranty
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | AB48AB |
| Product Line | Achelous AquaBox® (patented, round basin series) |
| Overall Dimensions | 51.5” diameter × 16” deep |
| Grate Dimensions | 48” dia. × 2.8”H (2-piece, removable) |
| Reservoir Capacity | 95 gallons |
| Maximum Static Load | 1,500 lbs (Blue Thumb official) |
| Basin Weight | ~65 lbs |
| Material | HDPE (High-Density Polyethylene) |
| Material Properties | Freeze-thaw stable | UV-resistant | Chemical-resistant | No liner required |
| Kit Includes | Basin (4 integrated molded supports) + 2-piece grate + PVC center support column + pump access cover + mesh sediment screen |
| Additional Support Columns | Optional (available separately for heavier fountain loads) |
| Made In | USA — Blue Thumb manufactures in-house |
| Patent | Patented AquaBox® design |
| Pebble Coverage | 5–6 bags polished pebbles (~40 lbs each) required — sold separately |
| Warranty | Lifetime Warranty (basin housing) |
| Shipping | Oversized item — shipping surcharge may apply (verify at checkout) |
What’s Included
In the Box
- Reservoir basin with 4 integrated molded supports
- 2-piece grate basin cover (2 half-circle sections)
- PVC center support column
- Pump access cover
- Mesh sediment screen
Sold Separately (Required)
- Submersible fountain pump
- 5–6 bags polished pebbles (40 lbs/bag)
- Auto-fill valve + 30 PSI regulator (recommended)
- Optional: additional PVC support columns
- Optional: ABSCREEN upgraded sediment screen
Blue Thumb Achelous AquaBox Family
| Model | Shape | Capacity | Max Load | Overall Dims | Weight | Pebbles |
|---|---|---|---|---|---|---|
| AB36 | Round 36” | 60 gal | 1,000 lbs | 39.5”×16”H | ~45 lbs | 4–5 bags |
| AB48AB (this) | Round 48” | 95 gal | 1,500 lbs | 51.5”×16”H | ~65 lbs | 5–6 bags |
| Altum | Square 52” | 220 gal | 2,500 lbs | 52.5”×52.5”×20”H | ~110 lbs | 4–5 bags |
All models: HDPE | Made in USA | Patented AquaBox® | Lifetime Warranty | No liner required
Ideal Applications
- Single or triple basalt column fountain installations
- Large bubbling rock and millstone features
- Urn, vase, or pottery fountains
- Stacked slate and custom disappearing waterfall features
- Professional contractor installs and landscaping projects
- DIY large-scale backyard fountain builds
Frequently Asked Questions
What is the maximum weight capacity of the AquaBox 48”?
The Blue Thumb AB48AB Achelous AquaBox 48” has a maximum static load of 1,500 lbs as published by Blue Thumb on their official product page (shopbluethumb.com).
This means the grate and basin system can support up to 1,500 lbs of combined static weight from your fountain stone(s). Most large single basalt columns weigh 300–800 lbs; a triple basalt column set might reach 800–1,200 lbs — well within the 1,500 lb rating.
For installations using extremely heavy or concentrated point loads approaching the 1,500 lb limit, optional additional PVC support columns are available from Blue Thumb to increase the structural support configuration. Professional installation is recommended when working near the maximum rated load.
How many gallons of water does the 48-inch AquaBox hold?
The AB48AB holds approximately 95 gallons of water. This large reservoir volume offers several benefits:
- Keeps the submersible pump fully submerged even in hot weather when evaporation is highest
- Provides thermal mass that helps keep water temperature stable for pump health
- Reduces the frequency of manual water additions compared to smaller basins
- Accommodates larger pumps needed for tall or multiple-outlet fountain installations
For hands-free water level management, an auto-fill valve with a 30 PSI pressure regulator (sold separately) is strongly recommended. The 95-gallon reservoir will still lose water to evaporation and fountain splash — the auto-fill valve maintains a consistent level automatically and prevents pump cavitation.
How deep do I need to dig for the AquaBox 48”?
Excavation planning requires knowing two key dimensions:
- Diameter: The overall basin diameter is 51.5 inches (not 48 inches — “48 inch” refers to the grate inner seat diameter). Dig at least 51.5” in diameter to provide clearance for basin placement and leveling.
- Depth: The basin is 16 inches tall. Excavate to a depth that positions the grate top flush with the surrounding grade — typically 16” plus 2”–4” for a compacted gravel base, totaling approximately 18”–20” total excavation depth.
Installation steps: Level and compact the base, set the basin, confirm level positioning, install the PVC center support column, route pump cord through the access area, place the 2-piece grate, and cover with 5–6 bags of polished pebbles.
At ~65 lbs, the basin itself requires two people for placement. Professional installation is recommended for large fountain installations.
What material is the Achelous AquaBox made from?
The AB48AB is manufactured from HDPE — High-Density Polyethylene, a professional-grade thermoplastic chosen for outdoor and underground applications. Key properties:
- Freeze-thaw stable: HDPE can expand and contract through freeze-thaw cycles without cracking — suitable for year-round burial in all U.S. climate zones
- UV-resistant: Does not degrade or become brittle from sun exposure during installation or partial above-grade use
- Chemical-resistant: Unaffected by pond treatments, algaecides, and water conditioners
- Food-safe grade: HDPE is safe for fish and aquatic plant environments
- Recyclable: Blue Thumb manufactures the AquaBox in the USA from HDPE that meets domestic production standards
This same material is used in residential water pipes, food storage containers, and playground equipment — selected specifically for its combination of structural strength and environmental stability.
Does this basin require an additional pond liner?
No. The Achelous AquaBox is a self-contained HDPE reservoir — the basin walls and floor form a watertight enclosure without any additional liner. This eliminates the need for 45-mil EPDM liner, liner underlayment, or any supplemental waterproofing.
Simply dig your hole, level the basin, and install. The HDPE body will not crack, leak, or degrade underground for decades of service under normal use conditions, covered by the Lifetime Warranty.
What pump is recommended for the AquaBox 48”?
Pump selection depends on your specific fountain type and height. General guidance:
- Single bubbling rock or urn (24”–36” tall): 1,000–2,500 GPH pump
- Single basalt column (4’–6’ tall): 2,000–3,500 GPH pump
- Triple basalt column set: 3,000–5,000+ GPH pump (or multiple pumps)
- Large cascading rock or custom feature: 3,500–6,000 GPH pump
The 95-gallon reservoir comfortably houses most fountain pumps. A mag-drive or electronic submersible pump (such as the Blue Thumb or Atlantic TidalWave series) is recommended for energy efficiency and longevity in continuous fountain operation.
All submersible pumps must connect to a GFCI-protected 120V outdoor outlet. Contact us at (765) 508-4352 for pump pairing recommendations for your specific fountain.
What warranty does the Blue Thumb AquaBox 48” carry?
The AB48AB Achelous AquaBox carries a Lifetime Warranty on the basin housing, as confirmed by Blue Thumb on their official product page.
For a professionally installed, permanently buried fountain reservoir, a lifetime warranty directly addresses the primary purchase concern — that an underground plastic basin might crack, degrade, or leak over time. The HDPE construction and lifetime warranty together provide long-term confidence in this investment.
Contact Pond Pro Direct at (765) 508-4352 for warranty support on authentic Blue Thumb products.
How does the 48” AquaBox compare to the 36” version?
Both are round Achelous AquaBox® basins from Blue Thumb sharing the same HDPE construction, patented design, and Lifetime Warranty. Key differences:
- AB36 (36”): 60 gallons | 1,000 lb max load | 39.5” × 16”H | ~45 lbs | 4–5 bags pebbles | Best for single bubbling rocks, single basalt columns, and medium urns
- AB48AB (48”, this): 95 gallons | 1,500 lb max load | 51.5” × 16”H | ~65 lbs | 5–6 bags pebbles | Best for large single columns, triple column sets, large boulders, and multiple-outlet features
If your fountain is a large single feature and fits within the 36” coverage area, the AB36 saves cost and installation labor. For triple-fountain installations, large basalt sets, or any feature requiring more than 60 gallons of water volume, the AB48AB is the right choice. When in doubt, size up — extra water volume and load capacity are always beneficial in fountain installations.
Why Buy from Pond Pro Direct?
- Authentic Blue Thumb products — Lifetime Warranty supported on genuine AquaBox basins
- Fountain system expertise — call Mon–Fri 9AM–5PM EST for pump sizing and installation guidance
- Price Match on identical products from authorized retailers
Blue Thumb AB48AB Achelous AquaBox® 48” — 95 gal | 1,500 lb max static load | 51.5”×16”H | HDPE | 2-piece grate | mesh screen | PVC column | Patented | Made in USA | Lifetime Warranty. 5–6 bags pebbles required (sold separately). Pump and auto-fill valve sold separately.
Questions about sizing, pump pairing, or excavation planning? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
