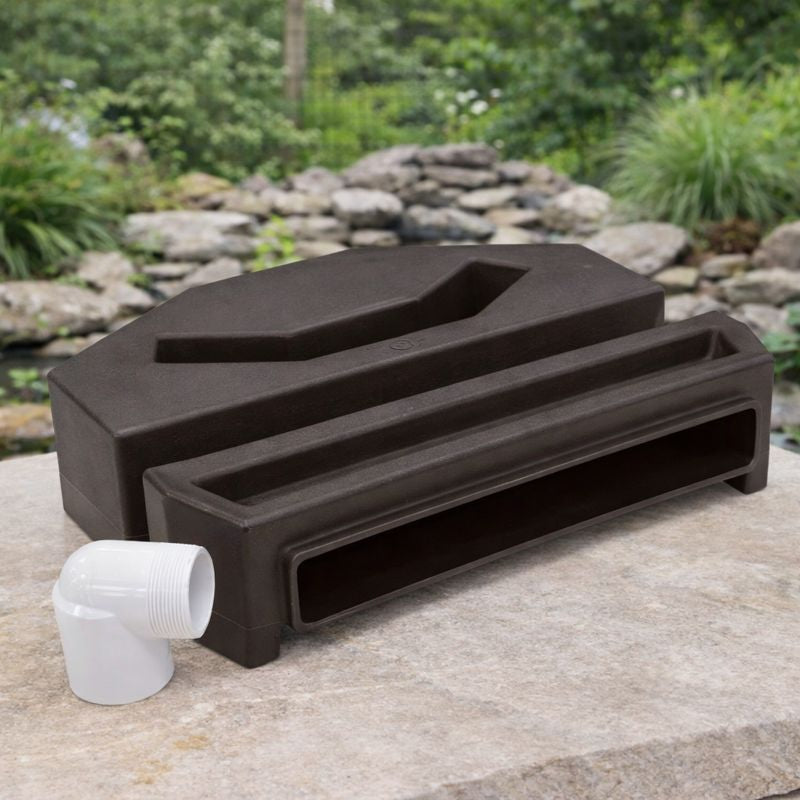

Blue Thumb PB16ES Elite 16" Waterfall Spillway Box – Pondless Cascade Weir for DIY Backyard Water Features
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Blue Thumb PB16ES Elite 16” Waterfall Spillway is a compact, pondless cascade box designed to create a smooth, even 16-inch wide sheet of water for disappearing waterfall systems, landscape streams, and decorative water features. With a maximum pump flow of 4,500 GPH and measuring 20.25” wide × 15.5” deep × 5” tall, the PB16ES sits discretely at grade level and accepts a 2-inch inlet from the return line below.
Internal baffles distribute incoming water evenly across the full 16-inch spillway lip, eliminating surging and producing a consistent water curtain. Durable construction supports boulders, gravel, and soil stacked directly on top for complete concealment. Proudly made in the USA by Blue Thumb (formerly PondBuilder). Backed by a Lifetime Warranty.
Ideal Applications
What’s Included
- Blue Thumb PB16ES Elite 16” Waterfall Spillway unit
- 2” inlet fitting (confirm connection type with Blue Thumb)
- Plumbing fittings and hardware
- Full-color installation instructions
Note: rocks, gravel, pump, tubing, and basin reservoir components are not included. See Blue Thumb’s Elite Spillway Kit options for complete system packages.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | PB16ES |
| Spillway Width | 16” |
| Maximum Pump Flow | 4,500 GPH |
| Dimensions (W × D × H) | 20.25” × 15.5” × 5” |
| Inlet Size | 2” (confirm connection type) |
| Internal Baffles | Yes — even water distribution across full 16” lip |
| Filter Media | None — pure spillway, pondless applications |
| Rock-Stackable | Yes — boulders, gravel, and soil can be placed on top |
| Construction | Durable reinforced polymer; outdoor UV-resistant |
| Origin | Made in USA |
| Warranty | Lifetime Warranty |
Basic Pondless Installation Overview
- Lay out and excavate the basin area. Install Basin Matrix reservoir modules and Pump Canyon inside a rubber-lined basin.
- Install underliner, then rubber pond liner across the full basin and up the slope to the waterfall position.
- Position the PB16ES on a leveled surface at the top of the waterfall. Ensure the 16-inch spillway lip is level side-to-side for an even water sheet.
- Connect the pump discharge line from the Pump Canyon below, up through the slope, and into the PB16ES 2-inch inlet at the rear.
- Cover Basin Matrix and pump with decorative stone. Stack rocks around and on top of the spillway for concealment. Fill basin, plug in pump, and adjust flow.
Blue Thumb Elite Spillway & Cascade Box Family
| Model | Width | Max GPH | Dimensions | Filter Media | Use |
|---|---|---|---|---|---|
| Elite Spillway 16” (This) — PB16ES | 16” | 4,500 | 20.25”×15.5”×5” | None | Pondless |
| Elite Cascade Box 14” | 14” | 2,500 | 19”×24”×14.25” | Matala mat | Pondless |
| Elite Cascade Box 22” | 22” | 5,500 | 20”×33”×14.25” | Matala mat | Pondless |
| Elite WF Box 14” | 14” | 3,500 | 23”×24.75”×21.75” | Matala mats | Pond filter |
| Elite WF Box 22” | 22” | 6,000 | 31”×30.5”×23” | Matala mats | Pond filter |
The PB16ES is a shallow (5”H) pondless spillway with no filter media. The Elite Cascade Boxes and Waterfall Boxes are deeper biological filter units with Matala mats and landscape lids. All Blue Thumb Elite products carry a Lifetime Warranty and are Made in the USA.
Frequently Asked Questions
What is the maximum flow rate for the Blue Thumb Elite 16" Spillway?
The Blue Thumb PB16ES Elite 16” Spillway handles a maximum pump flow of 4,500 GPH. This provides ample capacity for most residential pondless waterfall installations using a single pump. For the most visually dramatic sheet effect across the full 16-inch lip, pump the spillway at a flow rate appropriate to your installation head height — consult the performance chart in the gallery for reference.
How does the internal baffle system improve waterfall aesthetics?
The PB16ES features internal baffles inside the spillway housing that diffuse high-velocity water entering through the 2-inch inlet, slowing it and redistributing it evenly across the full 16-inch spillway lip. Without baffles, the incoming flow creates a central turbulent surge with slower water at the edges, resulting in an uneven, broken waterfall. The baffles produce a calm, consistent water sheet that remains level across the full spillway width — the hallmark of a professional-looking waterfall installation.
What is the benefit of the PB16ES load-bearing design?
Blue Thumb’s Elite Spillway is constructed from durable reinforced polymer with structural ribbing that allows boulders, rocks, gravel, and soil to be placed directly on top of the unit. This means the spillway can be completely buried and concealed beneath heavy decorative stone — only the 16-inch spillway lip needs to be exposed. The unit will not warp, crack, or compress under typical landscape rock loads, and the 5-inch overall height makes it easy to position at grade level within your installation.
Can this spillway be used for a Pondless Waterfall system?
Yes — the PB16ES is specifically designed for pondless (disappearing) waterfall applications. Because it contains no biological filter media, it functions as a pure waterfall starting point: water arrives from below via the 2-inch inlet, distributes evenly through the internal baffles, and cascades over the 16-inch spillway lip into the rock stream channel below. The pump recirculates water from the buried basin reservoir back up to the spillway continuously. Blue Thumb’s Basin Matrix, Pump Canyon, and PVC flex hose are the recommended companion components for a complete Blue Thumb pondless installation.
What plumbing size is required for the Blue Thumb Elite 16"?
The Blue Thumb PB16ES has a 2-inch inlet. Blue Thumb recommends using Black PVC Flex Hose (their preferred return-line material) for the pump-to-spillway connection, as it is more flexible and easier to route through a rock stream than rigid PVC. Connect the pump discharge to 2-inch flex PVC and run it up the slope to the spillway inlet at the rear of the unit. For the fitting type at the spillway inlet, confirm with Blue Thumb or your product documentation — use the appropriate adapter for a leak-free connection.
Is maintenance required for the Elite Cascading Falls spillway?
The PB16ES contains no filter media and is virtually maintenance-free. Occasionally check that no large debris (leaves, twigs, or sediment) has accumulated inside the housing and obstructed the internal baffles. If your upstream installation includes a pump vault with a debris screen or intake filter, debris entry into the spillway will be minimal. The reinforced polymer construction will not rust, corrode, or require seasonal resealing.
