Blue Thumb PB16KIT Elite 16" Spillway Waterfall Kit – Pondless Backyard DIY Cascading Falls System
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Blue Thumb PB16KIT Elite 16" Spillway Cascading Falls Kit is a complete pondless waterfall system supporting a maximum stream of 6 feet long by 1–2 feet wide -- ideal for compact yards, patios, and retaining wall features. The kit ships complete with the 16" Elite Cascade Spillway Box (with internal baffle system for a smooth, glass-like water curtain), IllumiFlow 2,100 GPH Pump (#PB1694) with 24-month warranty, Elite Pump Canyon® vault, 1 Large Water Matrix basin box, 10’×15’ PondGard 45-mil EPDM liner, protective underliner, 2"×25’ Black Flex PVC pipe, and all installation hardware. Just add stone and water.

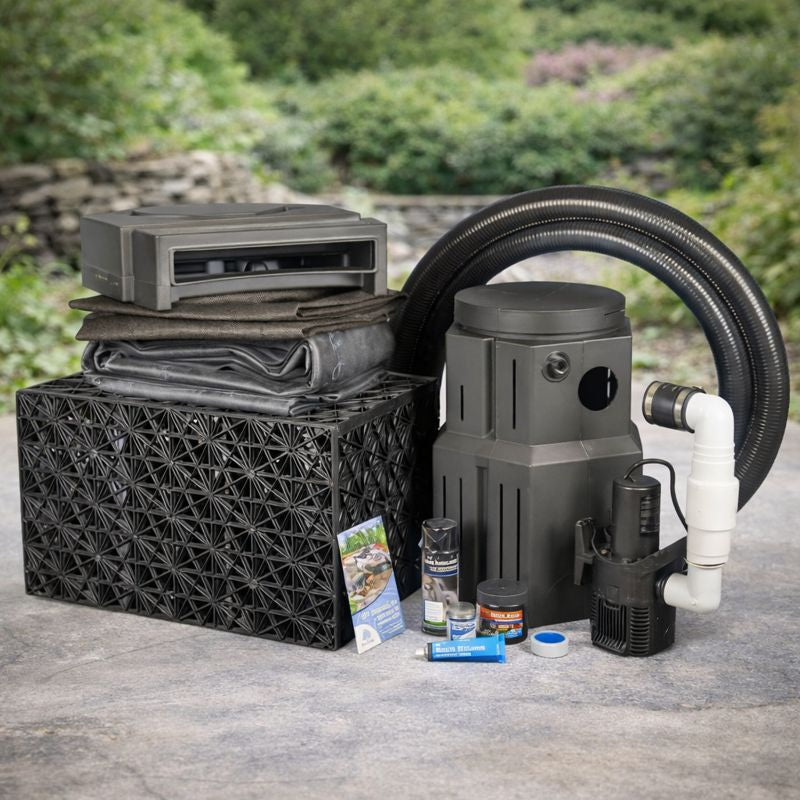

What's Included
Spillway & Vault
- 16" Elite Cascade Spillway Box -- internal baffle system for smooth, even water curtain; structural ribbing supports heavy rock stacking; compact and easy to conceal
- Elite Pump Canyon® (Small) -- protective vault for the pump; keeps pump submerged, protected, and accessible for maintenance
Pump & Plumbing
- IllumiFlow 2,100 GPH Pump (#PB1694) -- hybrid direct/magnetic drive; water-cooled; thermal overload protection; horizontal or vertical operation; 24-month warranty
- Pump Discharge Assembly with Check Valve -- prevents backflow when pump is off
- 2" × 25’ Black PVC Flex Pipe -- routes water from pump to spillway
Reservoir & Liner
- 1 Large Water Matrix box (Basin Matrix) -- modular underground reservoir module; placed on liner, filled with gravel; stores water invisibly below grade
- 10’ × 15’ PondGard Rubber Liner (Firestone, 45-mil EPDM) -- fish-friendly; UV and ozone resistant; flexible to −40°F; certified fish-safe
- Protective Underliner -- non-woven geotextile; installed beneath liner to protect from puncture
Installation Kit
- Installation Kit -- step-by-step color instructions, PVC glue, black foam sealant
- Muck Buster® tablets -- included water treatment for the basin
- Not included: decorative stone, gravel, and water (all site-supplied)
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / Model | PB16KIT | Blue Thumb Elite 16" Spillway Cascading Falls Kit |
| Max Stream Size | 6 feet long × 1–2 feet wide |
| Spillway Width | 16 inches (Elite Cascade Spillway Box with internal baffle) |
| Pump | IllumiFlow 2,100 GPH (#PB1694) | Hybrid direct/magnetic drive | 24-month warranty |
| Pump Technology | Water-cooled hybrid; thermal overload protection; 1"–1.5" fittings included |
| Flex PVC Pipe | 2" × 25’ Black PVC Flex Pipe |
| Liner | PondGard 45-mil EPDM | 10’ × 15’ | Firestone | Fish-safe | −40°F rated |
| Underliner | Protective non-woven geotextile underliner (included) |
| Reservoir System | 1 Large Water Matrix box + Elite Pump Canyon® (Small) -- in-ground liner-and-matrix reservoir; no AquaBox |
| System Type | Pondless (disappearing) waterfall -- water recirculates underground; no open pond |
| Installation Level | DIY-friendly or professional; just supply stone and water |
| Pump Warranty | 24 months (IllumiFlow #PB1694) |
How the Elite 16" Cascading Falls System Works
The PB16KIT creates a pondless (disappearing) waterfall: water flows over the 16" Elite Spillway and into an in-ground basin that is completely invisible below gravel and stone. Here's how the system works end-to-end:
- Excavation: Dig a basin sized to accommodate the Water Matrix box and Pump Canyon® vault. The basin footprint is lined with the included protective underliner, then the 10’×15’ PondGard rubber liner over the top.
- Reservoir: Place the Water Matrix box (Large) on the liner inside the excavated basin -- this modular box creates the underground water storage volume. The liner wraps around it. Fill the cavity with washed gravel to conceal the system.
- Pump vault: The IllumiFlow 2,100 GPH pump sits inside the Elite Pump Canyon® vault on top of the liner. The Pump Canyon protects the pump, keeps it submerged, and provides access for maintenance without disturbing stone or gravel.
- Plumbing: The pump discharge assembly (with check valve) connects to the 2"×25’ Black Flex PVC pipe, which runs up the slope to the Elite Spillway Box at the top of the waterfall.
- Spillway: Water enters the 16" Elite Spillway Box through the flex pipe and is distributed evenly by the internal baffle system, producing a smooth, consistent glass-like water curtain across the full 16" lip.
- Recirculation: Water falls from the spillway, flows down through the decorative streambed (your rocks and gravel), and re-enters the buried basin to repeat the cycle.
Elite Cascading Falls Kit Size Comparison
| Kit | Spillway | Max Stream | Pump | Liner | Flex Pipe |
|---|---|---|---|---|---|
| Mini 10" Kit | 10" | ~3’ | 1,495 GPH | 6’×10’ | 1"×7’ |
| Elite 14" Small (PB1229) | 14" | ~5’ | — | — | — |
| Elite 16" (PB16KIT, this) | 16" | 6’ × 1’–2’ | 2,100 GPH | 10’×15’ | 2"×25’ |
| Elite 22" Medium | 22" | ~15’ × 2’–4’ | Higher GPH | Larger | 2"×25’ |
| Elite 28" (PB28KIT) | 28" | ~15’ × 2’–4’ | Higher GPH | Larger | 2"×25’ |
| Elite 40" XL (PBE40CFK) | 40" | ~18’ × 2’–4’ | 7,800 GPH | 15’×35’ | 3"×25’ |
The PB16KIT is best for compact landscapes, corner features, patios, and situations where a 6-foot stream length fits the available grade change. For streams longer than 6 feet or falls taller than 2 feet, move up to the Elite 28" (PB28KIT) or Elite 40" (PBE40CFK) kit.
Frequently Asked Questions
What is included in the Blue Thumb PB16KIT Elite 16" Kit?
The PB16KIT is a complete pondless waterfall kit. Every component for installation is included -- just supply your decorative stone and water.
- 16" Elite Cascade Spillway Box (with proprietary internal baffle system for smooth water curtain)
- IllumiFlow 2,100 GPH Pump (#PB1694) -- 24-month warranty, hybrid direct/magnetic drive
- Pump Discharge Assembly with Check Valve
- Elite Pump Canyon® (Small) -- protective pump vault
- 1 Large Water Matrix box (underground reservoir module)
- 2" × 25’ Black PVC Flex Pipe
- 10’ × 15’ PondGard 45-mil EPDM Rubber Liner
- Protective Underliner
- Muck Buster® tablets
- Installation Kit: step-by-step color instructions, PVC glue, black foam sealant
Maximum system size supported: 6 feet long × 1–2 feet wide stream.
How does the internal baffle system create a better waterfall?
The Blue Thumb Elite Spillway features a proprietary internal baffle system that distributes water entering the box evenly across the full 16" width before it flows over the spillway lip. Incoming pump water enters the box with turbulence and varying pressure from the flex pipe connection. Without baffles, this uneven inlet flow produces a surging, uneven water curtain with higher flow in the center and thin edges.
The internal baffles slow and redistribute the incoming water, producing a consistent, even water depth across the entire 16" lip. The result is a smooth, glass-like water curtain with no surging, no gaps, and no uneven flow patterns -- the signature visual characteristic of the Blue Thumb Elite spillway series.
Can I place heavy landscape rocks directly on top of the spillway?
Yes. The Elite Cascade Spillway Box is engineered with structural ribbing and reinforced construction designed to support the weight of large decorative rocks and boulders stacked directly on top of the unit. This load-bearing capacity is what allows landscape contractors to fully conceal the spillway box within natural rockwork, so only the flowing water curtain is visible in the finished installation.
The same structural ribbing is built into the Elite Pump Canyon® vault, which supports the weight of gravel and stone placed above the pump area in the basin.
What is the benefit of a pondless (disappearing) waterfall?
In a pondless waterfall system, water flows over the falls and disappears into a gravel-covered in-ground basin, where it is recirculated by a submersible pump back to the top of the falls. There is no open water surface -- the "pond" is completely hidden below grade.
Key advantages over a traditional pond:
- Dramatically less maintenance: no open water to collect debris, no algae blooms to manage, no fish to care for
- Safer for children and pets: no standing open water; the basin is covered with stone
- Flexible placement: works on slopes, corners, and limited spaces where a full pond would not fit
- Lower evaporation: the stone-covered basin reduces evaporation significantly vs. an open pond surface
Maintenance for the PB16KIT is minimal: top up the basin as needed for evaporation, occasionally clear debris from the spillway lip to maintain an even water curtain, and remove the pump for winter storage in freezing climates.
Is the 45-mil EPDM liner durable for cold winter climates?
Yes. The included PondGard liner by Firestone is a 45-mil EPDM rubber liner that remains highly flexible at temperatures as low as −40°F, making it suitable for year-round installation in cold climates without cracking or stiffening. It is UV-resistant, ozone-resistant, and certified fish-safe.
Installed at 10’ × 15’, the liner is sized to line the basin excavation for the PB16KIT's Water Matrix and Pump Canyon configuration, with adequate overlap for the basin walls. When layered over the included protective underliner (non-woven geotextile), the system creates a puncture-resistant waterproof barrier rated for decades of service.
PondGard is the professional-grade liner preferred by landscape contractors for pondless and pond installations and is the same liner used across Blue Thumb's full Elite kit range.
What maintenance is required for the Blue Thumb Elite Kit?
The PB16KIT is designed for minimal maintenance:
- Water level: Top up the basin periodically as water evaporates. The IllumiFlow pump must remain submerged to operate correctly -- running dry will void the pump warranty.
- Spillway: Occasionally remove leaves or debris from the 16" spillway lip to maintain an even water curtain across the full width.
- Pump: Periodically check the pump's screened intake for debris. Access the pump through the Elite Pump Canyon® vault without disturbing the surrounding stone.
- Winter: In freezing climates, remove the IllumiFlow pump from the Pump Canyon and store it submerged in a frost-free location (e.g., a bucket of water in a garage) to prevent seal damage. The liner, matrix box, and Pump Canyon can remain in the ground year-round.
- Water treatment: Use the included Muck Buster® tablets to keep the basin free of organic buildup.
Blue Thumb PB16KIT -- 16" Elite spillway, IllumiFlow 2,100 GPH pump (24-mo warranty), Elite Pump Canyon®, 1 Large Water Matrix, 2"×25’ flex PVC, 10’×15’ PondGard 45-mil EPDM liner + underliner, Muck Buster. Max stream 6’ long × 1’–2’ wide. Just add stone and water.
Need help choosing between kit sizes or planning your waterfall height and stream length? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
