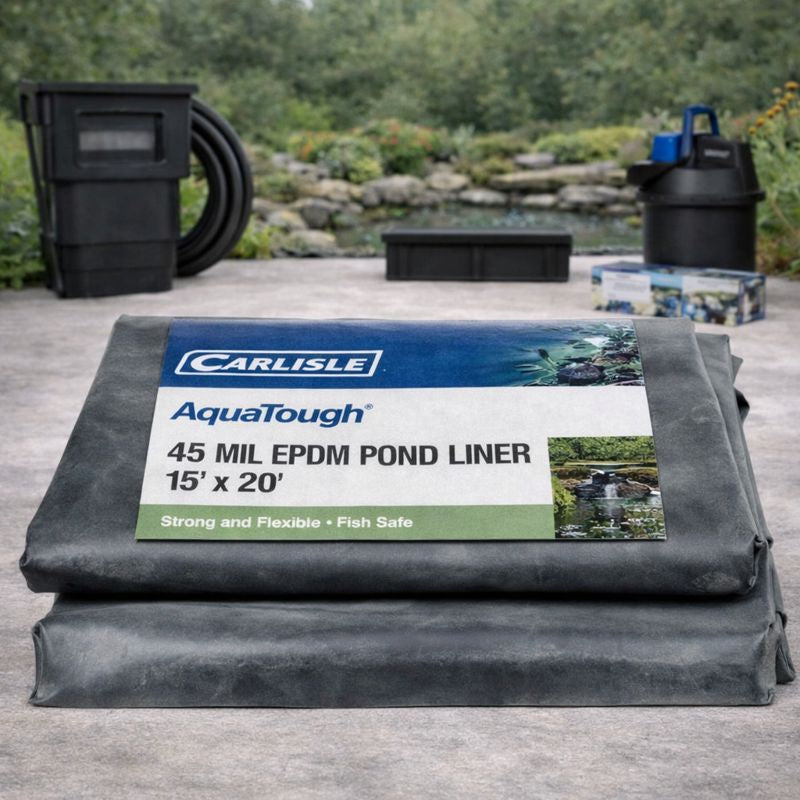

Carlisle AquaTough 45 Mil EPDM Pond Liner 15 ft x 20 ft – Fish Safe Heavy Duty Rubber Pond Liner
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Carlisle AquaTough 45 Mil EPDM Pond Liner (SKU 324211 — 15’ × 20’) is a professional-grade, non-reinforced EPDM rubber membrane manufactured in the USA by Carlisle SynTec Systems. At 300 square feet, it provides ample coverage for medium koi ponds, water gardens, streams, and pondless waterfall basins. The liner stays flexible and conformable at temperatures as low as −40°F, making it a year-round performer in all North American climates.
AquaTough features Carlisle’s exclusive J-Tear technology — a manufacturing process that causes any developing tear to redirect on itself rather than propagating in a straight line, dramatically minimizing damage during installation and when repositioning heavy boulders. Backed by a Limited Lifetime Warranty (registration required), it is the foundation-layer choice of professional pond builders across the country.
Key Features & Benefits
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 324211 |
| Size | 15 ft × 20 ft (300 sq ft) |
| Thickness | 45 mil (1.14 mm) |
| Material | Non-reinforced EPDM (Ethylene Propylene Diene Monomer) rubber |
| Approximate Weight | ~72 lbs |
| UV Resistance | Excellent — UV-stable, resists solar UV, ozone, oxidation |
| Temperature Range | −40°F to 180°F |
| Fish/Plant Safety | Compatible with aquatic life (test for specific species) |
| Chlorinated Water | NOT compatible — freshwater applications only |
| J-Tear Technology | Carlisle-exclusive — tears redirect on themselves, not in straight lines |
| Seaming | EPDM primer + Carlisle seam tape; seam strength exceeds liner strength |
| Country of Origin | Made in USA (Carlisle SynTec Systems) |
| Packaging | Bubble wrap protective roll packaging |
| Warranty | Limited Lifetime Warranty (registration required) |
Pond Size Guide — 15' × 20' Liner
Use this formula to determine the maximum pond size you can build with a 15' × 20' liner:
Pond Length = Liner Length − (2 × Depth) − 2' overlap
Pond Width = Liner Width − (2 × Depth) − 2' overlap
For a standard 2-foot deep pond with a 1-foot anchor margin on each side:
- Liner: 20' − (2 × 2 ft depth) − 2 ft overlap = 14 ft long
- Liner: 15' − (2 × 2 ft depth) − 2 ft overlap = 9 ft wide
- Maximum finished pond: approximately 9 ft wide × 14 ft long × 2 ft deep
For deeper ponds (3 ft), subtract an additional 2 ft per dimension. For shallower ponds (1 ft), you can build a proportionally larger surface area. Always add extra overhang for anchoring into the edge trench.
Installation Tips
- Install non-woven geotextile underlayment over all soil and gravel before placing the liner to protect against punctures from rocks and roots
- Allow the liner to warm and relax in sunlight for 20–30 minutes before shaping — warmer EPDM is more pliable and easier to fold into shelves
- Drape the liner loosely into the excavation from the center outward — do not stretch it tight before filling
- Fold material into pleats at corners rather than cutting — every cut reduces liner area
- As you fill with water, smooth liner into shelves and curves by hand to eliminate air pockets
- Trim excess only after the pond is fully filled and settled — leave at least 12–18 inches of overlap for anchoring
- Anchor the edge by burying in a trench or beneath coping stones
Frequently Asked Questions
What is Carlisle J-Tear technology and why does it matter?
J-Tear is Carlisle’s exclusive manufacturing process for AquaTough liners. If a tear develops — during installation, from a sharp rock, or when repositioning heavy boulders — the tear is engineered to redirect on itself and form a “J” shape rather than continuing in a straight line. This severely limits the damage area, preventing a small tear from becoming a catastrophic rip that compromises the entire liner.
No other EPDM pond liner brand offers this feature. It provides a meaningful safety margin during the installation process, when most liner damage occurs.
What size pond can I build with a 15' × 20' liner?
For a standard 2-foot deep pond with a 1-foot anchor margin on each side, a 15' × 20' liner creates a finished pond approximately 9 feet wide by 14 feet long. Use the formula:
- Length = Liner length − (2 × depth) − 2 ft = 20 − 4 − 2 = 14 ft
- Width = Liner width − (2 × depth) − 2 ft = 15 − 4 − 2 = 9 ft
Shallower ponds yield a larger surface area; deeper ponds reduce available length and width accordingly.
How does 45 Mil EPDM compare to PVC or HDPE liners?
Each material has different strengths:
- EPDM (this liner): Maximum flexibility, stays pliable at −40°F, drapes naturally into complex pond shapes and shelves, fish-friendly formulation, seams with tape and primer. Best for natural-looking ponds with organic curves.
- PVC: Lower cost, but becomes brittle in UV light over time and cracks in cold temperatures. Not recommended for ponds in climates with hard freezes.
- HDPE: Superior puncture resistance, UV-resistant when exposed, thermally weldable for large installations. Stiffer and harder to conform to curved shelves. Better for commercial or large-scale applications where seam integrity is critical.
For residential koi ponds and water gardens with curved shelves and planting zones, 45 mil EPDM is typically the preferred choice among professional pond builders.
Is this liner safe for koi and aquatic plants?
Yes. Carlisle AquaTough is specifically formulated to be compatible with aquatic life — no plasticizers or harmful leaching chemicals are present. It has been used in professional koi ponds and water gardens for decades. Carlisle recommends testing with specific rare or sensitive aquatic species before stocking a new installation, as individual species sensitivities can vary.
Important: This liner is not compatible with chlorinated water. Use only in fresh-water pond and water garden applications.
Do I need underlayment with Carlisle AquaTough?
Yes — always use a non-woven geotextile underlayment beneath your liner. Even with AquaTough’s 45 mil thickness and J-Tear protection, sharp rocks, roots, and glass fragments in the soil can puncture an unprotected liner during filling (when water pressure pushes the liner down against the soil). Underlayment also allows ground gases to escape without causing bubbling. We recommend a minimum 10-oz/sq yd non-woven underlayment for residential ponds.
Can I expand my pond by seaming this liner to another piece later?
Yes. EPDM is one of the most seam-friendly liner materials available. Using Carlisle’s AquaTough primer and seam tape (3” double-sided seam tape), two pieces of EPDM bond chemically to form a seam that is stronger than the liner material itself. This makes it straightforward to add a waterfall section, a second pond chamber, or a stream extension to an existing liner in the future. Seams should be made on clean, dry liner surface at temperatures above 40°F.
What warranty comes with the Carlisle AquaTough liner?
Carlisle AquaTough comes with a Limited Lifetime Warranty from Carlisle SynTec Systems, available upon purchase registration. Register your liner after purchase to activate warranty coverage. Contact us at support@pondprodirect.com or (765) 508-4352 for registration and warranty details.
Why Buy from Pond Pro Direct?
- Authentic Carlisle AquaTough — genuine product with Limited Lifetime Warranty
- Expert sizing support — call or text (765) 508-4352, Mon–Fri 9am–5pm EST
- Free shipping on all orders
- Price match guarantee on identical products
- 30-day return period on eligible items
