EasyPro Sentinel Deluxe PA66D Pond Aeration System – Complete Lake & Pond Aerator Kit w/ SC22 Cabinet
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The EasyPro PA66D Sentinel Deluxe Aeration System delivers complete, bottom-diffuser aeration for ponds up to 3 acres, driven by the SRC50SS Stratus™ ½ HP rocking piston compressor with EasyPro's Sound Shield™ technology — the quietest compressor of its class in the industry. The SC22 steel cabinet arrives fully pre-assembled: compressor installed, cooling fan running, electrical outlet wired, pressure gauge and pressure relief valve mounted. Set the cabinet at the pond's edge, drop three QS2 QuickSink diffusers to the bottom, connect 300 feet of QuickSink weighted tubing, and the system is running. No field assembly of the cabinet required.
The Sentinel Deluxe line was developed specifically for professional aeration installers and serious pond owners who need a complete, plug-and-play system without the noise or complexity of standard industrial compressors. Sound Shield™ acoustic foam pre-installed in the cabinet dampens mechanical noise to levels appropriate for residential neighborhoods, HOA ponds, and golf course settings.
Pond Coverage — Depth-Dependent Sizing
Aeration system coverage depends significantly on pond depth. Deeper ponds require more air volume to overcome back-pressure at the diffuser. The PA66D's ½ HP SRC50SS compressor handles ponds up to 50 feet deep:
| Pond Depth | Max Pond Coverage | Notes |
|---|---|---|
| 5' – 8' deep | ¾ acre | Shallow ponds; consider PA65D (2 diffusers) for smaller acreage |
| 8' – 12' deep | 1½ acres | Typical residential pond depth range |
| 12' – 16' deep | 3 acres (maximum rated coverage) | Optimum depth range for PA66D performance |
| Up to 50' deep | Varies by acreage | Maximum operating depth; larger ponds at 50' depth may need PA83D or PA86D |

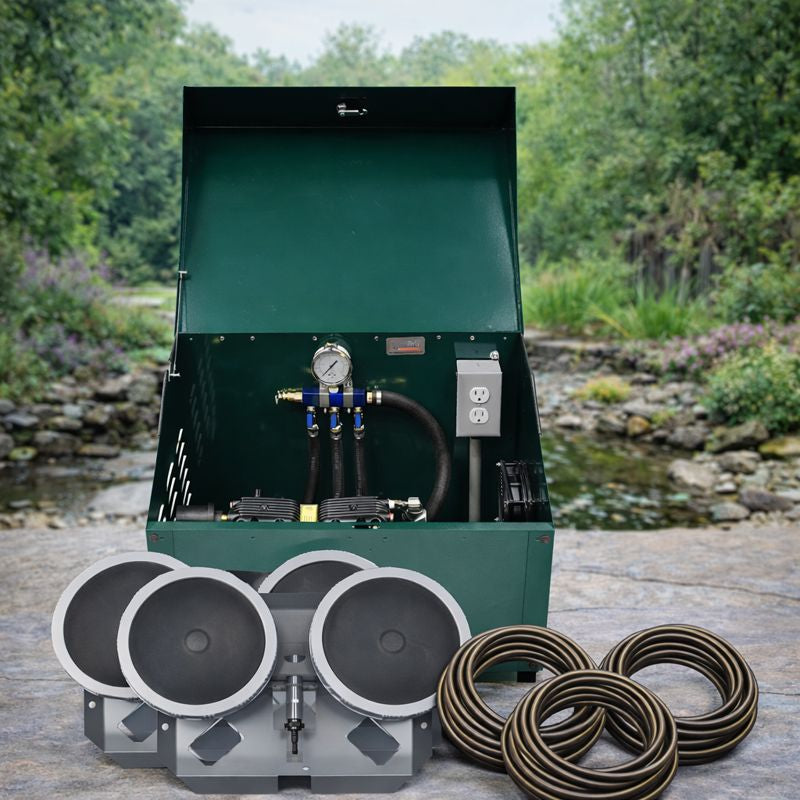

Complete Component List — EasyPro PA66D
SC22 Cabinet (Pre-Assembled — No Field Assembly Required)
- SC22 Deluxe 22" Ground Mount Locking Steel Cabinet
- SRC50SS Stratus™ ½ HP rocking piston compressor — installed
- Sound Shield™ acoustic foam — pre-installed (noise reduction)
- Cooling fan — pre-installed
- Electrical box/outlet — mounted and ready for incoming power
- Valved outlet assembly — pre-installed
- Pressure gauge — pre-installed
- Pressure relief valve — pre-installed
- Heat-reducing hose and 3/8" connections
- 6' pre-wired power cord (GFCI outlet required, not included)
- Cabinet hardware included
Diffusers & Tubing
- Three (3) QS2 QuickSink™ Weighted Diffusers (dual head) — approx. 2.2 CFM each; self-weighted, sink without additional ballast
- 300' of 3/8" QuickSink™ weighted tubing — stays on pond floor without anchoring
- All fittings, clamps, and connections for tubing-to-diffuser and tubing-to-cabinet
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | PA66D |
| Compressor | SRC50SS — Stratus™ SRC ½ HP rocking piston with Sound Shield™ |
| Total System CFM | 4.5 CFM (total; distributed across 3 diffusers at ~1.5 CFM each at operating pressure) |
| Voltage | 115V / 230V — ships 115V standard; specify 230V at order |
| Amps | 3.6A (115V) / 1.8A (230V) — measured at 10' operating depth |
| Max Pond Coverage | 3 acres (at 12-16' depth); depth-dependent — see coverage table above |
| Maximum Operating Depth | 50 feet |
| Cabinet | SC22 Deluxe 22" Ground Mount Locking Steel Cabinet |
| Diffusers | Three (3) QS2 QuickSink™ Weighted Diffusers (dual head, self-weighted, rubber membrane) |
| Tubing | 300' of 3/8" QuickSink™ weighted tubing with fittings |
| Power Cord | 6' pre-wired cord — requires GFCI-protected outlet (GFCI not included) |
| Operation | 24/7 continuous-duty; oil-less compressor design |
| Sound Shield™ | Acoustic foam pre-installed in cabinet — industry's quietest rocking piston system |
| Assembly | Cabinet pre-assembled at factory; SRC compressors assembled in USA |
| Compressor Warranty | 2 years |
| Cabinet, Diffusers & Tubing Warranty | 5 years |
EasyPro Sentinel Deluxe Aeration Series
Why the EasyPro PA66D Sentinel Deluxe?
- Sound Shield™ — the industry's quietest rocking piston compressor. Acoustic foam lining pre-installed in the SC22 cabinet absorbs compressor vibration and mechanical noise before it leaves the cabinet. This makes the PA66D appropriate for installations near homes, HOA common areas, golf course fairways, and recreational ponds where compressor noise would otherwise be intrusive. Standard industrial compressors without Sound Shield™ are significantly louder at comparable CFM output.
- SC22 cabinet arrives fully pre-assembled — no field setup. The compressor, cooling fan, electrical outlet, valved outlet assembly, pressure gauge, and pressure relief valve are all mounted, wired, and tested at EasyPro's factory before shipping. On-site installation is three steps: position the cabinet, connect the QuickSink tubing, drop the diffusers to the pond floor. The 6' power cord plugs directly into a standard GFCI-protected outdoor outlet.
- QS2 QuickSink diffusers require no anchoring weights. The QS2's self-weighted design sinks and stays on the pond floor under its own weight. Unlike standard rubber membrane diffusers that require separate concrete anchors or lead weights to stay submerged, QS2 diffusers drop to the bottom and stay there permanently. Their dual-head design distributes air evenly across a larger footprint for broader oxygen distribution per diffuser unit.
- QuickSink tubing eliminates pond surface clutter. The 300' of 3/8" QuickSink weighted tubing sinks and lies flat on the pond floor without additional ballast, unlike standard poly tubing that floats and requires separate weights. This creates a clean surface appearance and prevents interference with boat motors, fishing lines, and waterfowl.
- Oil-less compressor — no contamination risk. The SRC50SS rocking piston compressor operates without oil — the piston seals are self-lubricating. There is no risk of oil entering the air supply, reaching the pond, or contaminating the water. This matters for ponds stocked with fish, koi, or waterfowl.
- Split warranty reflects product confidence. 2-year warranty on the compressor (the highest-wear component) and 5-year warranty on the cabinet, diffusers, and QuickSink tubing — the longest warranty in the Sentinel Deluxe class.
Frequently Asked Questions
What is included in the EasyPro PA66D Sentinel Deluxe system?
The PA66D includes: SC22 Deluxe 22" Ground Mount Locking Steel Cabinet with SRC50SS ½ HP compressor with Sound Shield™ pre-installed, cooling fan installed, electrical box/outlet installed, valved outlet assembly installed, pressure gauge and pressure relief valve installed, heat-reducing hose and 3/8" connections, 6' pre-wired power cord. Plus: Three (3) QS2 QuickSink™ Weighted Diffusers (dual head), 300' of 3/8" QuickSink™ weighted tubing, and all fittings, clamps, and connection hardware.
What pond size and depth is the PA66D rated for?
The PA66D is rated for ponds up to 3 acres, with coverage depending on pond depth:
- ¾ acre at 5–8' deep
- 1½ acres at 8–12' deep
- 3 acres at 12–16' deep (maximum rated coverage)
- Maximum operating depth: 50 feet
If your pond is 3 acres at only 6' average depth, the PA66D may actually be oversized — a PA65D (2 diffusers) may suffice. If your pond is larger than 3 acres or deeper than 16' average, consider the PA83D (¾ HP) or PA86D (¾ HP, 4 diffusers). Call us to size your system: (765) 508-4352.
What does Sound Shield™ technology do, and why does it matter?
Sound Shield™ is EasyPro's proprietary acoustic foam lining pre-installed inside the SC22 steel cabinet. The foam absorbs and dampens the mechanical vibration and noise generated by the rocking piston compressor before it exits the cabinet — significantly reducing the operational sound level compared to standard cabinet aeration systems. EasyPro markets the Sentinel Deluxe as "THE INDUSTRY'S QUIETEST" rocking piston system in its class. This matters for:
- Residential ponds near homes, bedrooms, or outdoor living areas
- HOA ponds with neighbors within earshot
- Golf course ponds near greens, tees, or clubhouses
- Ponds in quiet park or nature preserve settings
If noise is not a concern (remote farm ponds, industrial retention basins), a standard non-Deluxe system may provide similar aeration at lower cost. If quiet operation is important, the Sound Shield™ Sentinel Deluxe is the appropriate choice.
How much airflow (CFM) does the PA66D deliver?
The SRC50SS compressor delivers 4.5 CFM of total system airflow. This is distributed across the three QS2 QuickSink diffusers — approximately 1.5 CFM per diffuser at typical operating pressure (or up to 2.2 CFM per diffuser at EasyPro's rated lab conditions). CFM output decreases as operating depth increases, because back-pressure at the diffuser rises with water depth. At 50' operating depth, actual CFM per diffuser will be lower than at 10'.
What voltage does the PA66D use, and what electrical connection is required?
The PA66D ships configured for 115V standard (specify 230V at time of order for the 230V version). Electrical specs:
- 115V: 3.6 amps (at 10' operating depth)
- 230V: 1.8 amps (at 10' operating depth)
The cabinet includes a 6' pre-wired power cord that plugs directly into a standard GFCI-protected outdoor outlet. A dedicated circuit is recommended. The GFCI outlet must be within 6' of where the cabinet is installed, or the cabinet can be positioned closer to an existing outlet. Never use a standard household extension cord to extend the power supply — amperage drop over long runs can damage the motor.
Does the PA66D include weighted airline, and how does QuickSink tubing work?
Yes — the PA66D includes 300 feet of 3/8" QuickSink™ weighted tubing with all fittings. QuickSink tubing has weight material integrated into the tubing wall, causing it to sink and remain on the pond floor without additional anchoring weights or ballast. Standard poly tubing floats on the surface and requires lead weights or other ballast to submerge it. QuickSink eliminates both the anchoring step and the surface hazard.
300 feet is sufficient for typical 3-acre pond installations where diffusers are placed at the deepest zones. For larger ponds or unusual diffuser placement requirements, additional QuickSink tubing can be purchased separately.
What maintenance does the PA66D compressor require?
The SRC50SS is an oil-less rocking piston compressor designed for 24/7 continuous duty. Recommended maintenance:
- Every 3–6 months: Clean or replace the air intake filter to maintain CFM output. A clogged filter reduces airflow and makes the compressor work harder.
- Every 2–3 years: Compressor rebuild kit (pistons and gaskets). Rebuild kits are available from EasyPro and restore the compressor to like-new performance. Rebuilding is significantly less expensive than full compressor replacement.
- Annual: Inspect diffusers; replace if output has decreased. QS2 diffuser membranes degrade over time — replacement membranes available separately.
The oil-less design means there is no oil to change or seals to monitor for oil contamination.
How does bottom diffuser aeration reduce algae and pond muck?
The PA66D's bottom-diffuser approach addresses the root cause of most pond quality problems — the anaerobic (oxygen-depleted) zone at the pond floor:
- Destratification: Bottom aeration breaks up thermal stratification, mixing the warm oxygen-depleted bottom water with the cooler oxygenated surface water, creating a uniform dissolved oxygen profile throughout the water column.
- Aerobic muck decomposition: Introducing oxygen at the pond floor stimulates aerobic bacteria that consume organic muck, decomposing it into harmless gases rather than accumulating as sludge.
- Phosphorus control: In anaerobic conditions, phosphorus releases from bottom sediment into the water column where it fuels algae blooms. Oxygenating the bottom binds phosphorus back into sediment, reducing the nutrient load available for algae.
- Fish safety: Prevents oxygen depletion fish kills (summer stratification) and winter kill (ice-covered ponds that block surface re-oxygenation).
Why Buy From Pond Pro Direct?
- Authorized EasyPro dealer — full 2-year compressor / 5-year cabinet and diffuser warranty applies.
- Full EasyPro Sentinel Deluxe lineup — PA65D (2 acres), PA66D (3 acres, this system), PA83D (¾ HP), PA86D (4 acres). Call to size: (765) 508-4352.
- Expert aeration sizing assistance — we can help you determine the right system based on your pond's acres, depth, and fish load.
- Price Match Guarantee — beat any lower authorized dealer price by $50 on orders over $2,000.
- 30-Day Return Period. Call or text (765) 508-4352, Mon–Fri 9 AM–5 PM EST.
EasyPro PA66D Sentinel Deluxe: SRC50SS ½ HP rocking piston compressor with Sound Shield™ (industry's quietest), SC22 steel cabinet fully pre-assembled, three QS2 QuickSink dual-head diffusers, 300' QuickSink weighted tubing, 4.5 CFM total output, 50' max depth, aerates up to 3 acres at 12-16' depth. 115V/230V. 2-year compressor / 5-year cabinet, diffusers, and tubing warranty. Assembled in USA.
Need help sizing the PA66D vs PA83D or PA86D for your pond? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
