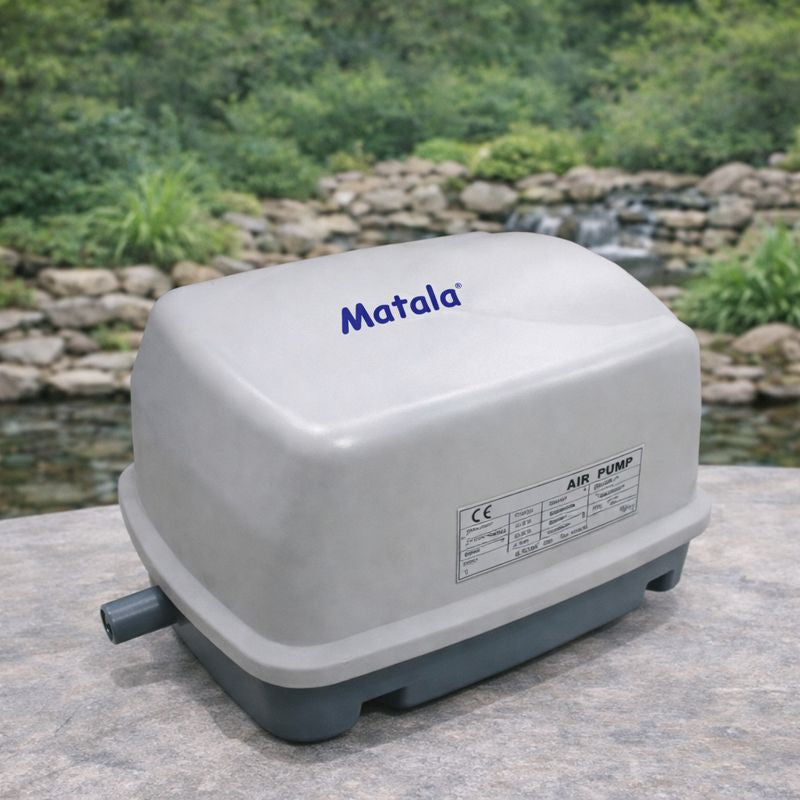

Matala Hakko HK40LP Linear Air Pump – High-Efficiency Pond Aeration
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Matala Hakko HK40LP Linear Air Pump delivers a maximum of 70 LPM (~2.47 CFM) of continuous airflow using just 40 watts of electricity — making it one of the most efficient large-output aeration pumps for koi ponds and water gardens up to 4,000 gallons. The linear diaphragm mechanism runs whisper-quiet at 32–38 dB at 1 meter, with no oil required and no vibration-intensive rotating parts.
Constructed from a durable composite resin housing rated for continuous outdoor use, the HK40LP features a side-mounted air filter for easy maintenance, industrial-grade internal components, and built-in thermal overload protection with auto restart. The LP (Low Pressure) designation means it is optimized for ponds at depths of 2–10 ft (shut-off at 14 ft). Includes a 6-foot power cord and 5/8” O.D. outlet fitting. Backed by a 3-year warranty and certified UL/CE for outdoor use.
Key Features & Benefits
Ideal Applications
- Koi ponds up to 4,000 gallons — year-round aeration and biological filtration support
- Water gardens requiring continuous dissolved oxygen levels
- Aquaculture & aquaponics — industrial-grade components for demanding production environments
- Winter aeration — maintains an open hole in pond ice to release toxic gases and prevent fish kill
- Biological filtration enhancement — increases dissolved oxygen for beneficial bacteria
- Septic tank aeration — rated for wastewater treatment applications
Technical Specifications
| Specification | Value |
|---|---|
| SKU | HK40LP |
| Max Airflow | 70 LPM (~2.47 CFM) |
| Wattage | 40W |
| Voltage | 110V standard (220V by special order) |
| Power Cord | 6 ft |
| Outlet Fitting | 5/8” O.D. |
| Noise Level | 32 dB (unloaded) / 38 dB (under load) at 1 meter |
| Recommended Pond Size | Up to 4,000 gallons (koi) |
| Ideal Depth Range | 2–10 ft |
| Shut-Off Depth | 14 ft (LP = Low Pressure) |
| Duty Rating | Continuous 24/7 |
| Housing Material | Composite resin (outdoor-rated) |
| Air Filter | Side-mounted; large; easy clean access |
| Thermal Protection | Auto off/on overload protection |
| Oil-Free | Yes — fish-safe |
| Dimensions | 204 × 174 × 215 mm |
| Weight | 11 lbs |
| Certifications | UL and CE listed (outdoor use) |
| Diaphragm Service Interval | 2–3 years under normal use |
| Warranty | 3 years (36 months) |
Hakko LP Pump Family
| Model | SKU | Max LPM | Watts | Best For |
|---|---|---|---|---|
| Hakko 25LP | HK25LP | ~25 LPM | ~20W | Smaller ponds / secondary diffuser zones |
| Hakko 40LP ← This | HK40LP | 70 LPM | 40W | Koi ponds up to 4,000 gal; 2-10 ft depth |
| Hakko 80LH | HK80LH | ~80+ LPM | ~60W | Larger ponds / deeper installations |
LP = Low Pressure (optimized for 2-10 ft depth, 14 ft shut-off). LH = Low-High pressure. For ponds deeper than 10 ft, select a high-pressure variant. ~ = approximate; verify other models before ordering.
Frequently Asked Questions
How much air does the Hakko HK40LP provide for pond aeration?
The Matala Hakko HK40LP delivers a maximum of 70 liters per minute (LPM), equivalent to approximately 2.47 CFM, using 40 watts of electricity. It is rated for ponds up to 4,000 gallons and is most effective at water depths between 2 and 10 feet. As a Low Pressure (LP) pump, it will automatically shut off when back-pressure exceeds 14 feet of water depth.
For a single-diffuser pond at moderate depth, 70 LPM provides vigorous aeration. For larger ponds or multi-zone installations, pair with a diffuser manifold and multiple air stones.
What is the benefit of a Linear Diaphragm air pump?
A linear diaphragm pump uses electromagnetic vibration to flex a diaphragm back and forth, pushing air without any rotating motor or oil lubrication. Key advantages over rotary compressors:
- Whisper-quiet — 32 dB (unloaded) to 38 dB (under load) at 1 meter; suitable for residential settings near living areas
- 100% oil-free — no contamination risk to pond water or fish
- Energy-efficient — 40 watts for 70 LPM output
- Low vibration — electromagnetic mechanism has no rotating imbalance
- Long diaphragm life — 2-3 years typical; replacement diaphragms available for in-field servicing
Does the Hakko HK40LP have internal safety features?
Yes. The HK40LP includes built-in thermal overload protection with an automatic off/on switch. If the pump overheats due to restricted airflow (clogged diffuser or air stone), elevated back-pressure, or high ambient temperatures, the pump automatically shuts down to protect the diaphragms and internal components. Once the temperature normalizes, it automatically restarts without manual intervention.
As a Low Pressure pump, it also has a built-in pressure limit — at 14 feet of back-pressure depth, the pump stops to prevent diaphragm damage. This provides inherent protection if diffusers are accidentally placed too deep.
How often should I replace the diaphragms?
Hakko replacement diaphragms typically last 2 to 3 years under continuous operation. To maximize diaphragm life:
- Clean the side-mounted air intake filter every 6 months to ensure unrestricted airflow and lower operating temperatures
- Ensure the air outlet line and diffuser are free of blockages (the leading cause of diaphragm stress)
- House the pump in a ventilated enclosure to reduce heat buildup
Replacement diaphragm kits are available for the HK40LP and can be replaced in the field without returning the pump for service, extending the useful life of the pump significantly beyond the 3-year warranty period.
Is the HK40LP weatherproof for outdoor installation?
The HK40LP features a composite resin housing rated for continuous outdoor use and is UL and CE certified for outdoor applications. The composite body resists corrosion in humid pond environments. However, like all linear air pumps, the HK40LP should be protected from direct water exposure:
- Install in a ventilated enclosure or aeration vault above water level
- Protect from direct driving rain, submersion, and flooding
- Allow adequate ventilation — the pump generates heat during operation
Always install above the water line and use a check valve on the airline to prevent backflow into the pump if power is interrupted.
