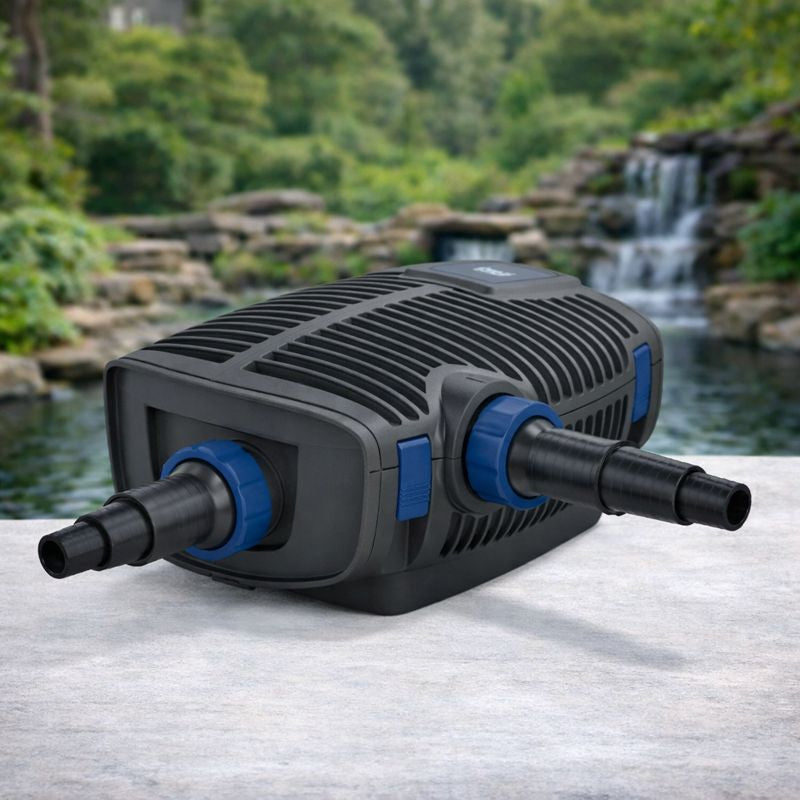

Oase AquaMax Eco Premium 5500 Pond Pump – Energy Efficient Submersible Waterfall & Filter Pump
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Oase AquaMax Eco Premium 5500 (SKU 87584) is a German-engineered synchronous electronic pond and filter pump delivering 5,500 GPH with exceptional energy efficiency for medium-to-large koi ponds, waterfalls, and filtration systems. Featuring Pulse 6 technology — a motor with additional magnets creating 35% greater efficiency than the previous generation — the AquaMax Eco Premium 5500 combines powerful flow with Oase’s patented Seasonal Flow Control (SFC), which automatically reduces flow and wattage by up to 50% as water temperatures drop to 40°F, and Environmental Function Control (EFC), which shuts the motor off if it runs dry or becomes clogged. An integrated grounding plate protects against stray electrical current in the pond. Frost-proof to -4°F for year-round installation. Includes multi-hose adapters (1”, 1.25”, 1.5”, and Sch40 1.5”–2”), dual-intake capability for a satellite filter or skimmer connection, and a 20-foot power cord. Backed by Oase’s 5-Year Limited Warranty (3 years + 2-year extension with free product registration). Made in Germany.
Why Choose the Oase AquaMax Eco Premium 5500?
- Synchronous electronic motor with Pulse 6 technology: Unlike asynchronous pumps that lose efficiency under load, Oase’s synchronous motor maintains efficiency across its operating range. The Pulse 6 motor uses additional magnets to reduce vibration and create 35% greater efficiency than the previous AquaMax generation — delivering more flow for less electricity.
- Seasonal Flow Control (SFC) — up to 50% wattage savings in winter: As pond water temperature drops to 40°F, the SFC function automatically reduces the pump’s flow rate and power consumption. Fish are less active in cold water and require less circulation — running the pump at full capacity all winter wastes energy. SFC can also be manually deactivated for full flow when needed. Can be controlled via the optional Oase Eco Control or Oase Control App (OC port included).
- Environmental Function Control (EFC) — automatic shutdown protection: If the pump runs dry (basin runs low) or becomes clogged, the EFC system detects the condition and shuts the motor off before overheating damage occurs. This prevents the pump burnout that ends many cheaper pump installations.
- Integrated grounding plate — unique pond safety: Stray electrical current in pond water can harm fish and pose risk to pond owners. The built-in grounding plate actively disperses stray current, a safety feature not found in competitive pump brands at this price point.
- Dual-intake with mechanical regulator: The second intake connects to an optional Oase Satellite Filter or AquaMax Satellite to draw water from a second area of the pond — eliminating stagnant zones. The mechanical regulator adjusts secondary intake from 0% to 100% in four stages, giving precise control over where suction comes from.
- Patented frost protection to -4°F: Remains installed year-round in climates with winter temperatures down to -4°F. No seasonal pump removal required. The pump’s frost protection is patented — not an afterthought but a designed feature.
- Submersible or inline installation: Remove the large-surface wrap-around pre-filter and use the included mounting bracket to install the pump inline in a vault or pipe run — without additional accessories.
- Oase Control App compatible (OC port): The built-in OC connection port enables flow rate and SFC adjustment via the Oase Control App or optional Oase Eco Control / Garden Cloud Controller.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | 87584 |
| Flow Rate | 5,500 GPH |
| Motor Type | Synchronous electronic (Pulse 6 technology) |
| Wattage | 160W (max); up to 50% reduction with SFC at 40°F |
| Amps | 2.4A |
| Voltage | 120V / 60Hz |
| Max Head Height | 17 ft (5.2 Meters) |
| Cord Length | 20 ft |
| Inlet / Outlet | 2” (both) |
| Included Fittings | 1”, 1.25”, 1.5”, Schedule 40 1.5”–2” adapters (no additional fittings required) |
| Solids Handling | Up to ⅜” (0.375”) |
| Dimensions | ~13.5” L × 11” W × 6.5” H (verify from Oase spec sheet) |
| Dual Intake | Yes — adjustable regulator (0–100% in 4 stages) |
| SFC | Seasonal Flow Control: reduces flow & wattage up to 50% at 40°F |
| EFC | Environmental Function Control: auto-shuts off if dry or clogged |
| Grounding Plate | Integrated — stray current protection |
| Frost Protection | Patented frost protection to -4°F |
| Smart Control | OC port for Oase Control App / Eco Control / Garden Cloud Controller |
| Installation | Submersible or inline (mounting bracket included) |
| Electrical | Requires GFCI-protected 120V outdoor outlet. Not approved for swimming pools or salt water. |
| Country of Manufacture | Germany |
| Warranty | 5-Year Limited (3 years + 2-year extension with free product registration at Oase) |
Flow Rate Performance
Performance data below from the Oase AquaMax Eco Premium 5500 specification chart. Verify values from the official Oase spec sheet before publishing. Values in FAQ Q1 (4,120 GPH at 5 ft; 2,615 GPH at 10 ft) should be confirmed against the official chart image (gallery image 10) before use.
| Head Height | Approximate Flow Rate | Notes |
|---|---|---|
| 0 ft (open flow) | 5,500 GPH | No vertical lift |
| 5 ft | 4,120 GPH | |
| 10 ft | 2,615 GPH | |
| 15 ft | 1,100 GPH |
AquaMax Eco Premium Family
All AquaMax Eco Premium models share: synchronous electronic motor, Pulse 6 technology, SFC, EFC, dual intake, grounding plate, frost-proof to -4°F, 20 ft cord, 2” inlet/outlet, inline capability, and 5-year warranty. Choose by pond volume and flow rate:
| Model | SKU | Flow Rate | Watts | Amps | Pond Size |
|---|---|---|---|---|---|
| AquaMax Eco Premium 3500 | 87582 | 3,500 GPH | 80W | 1.4A | Small-medium |
| AquaMax Eco Premium 4500 | 87583 | 4,500 GPH | 120W | 2.0A | Medium |
| AquaMax Eco Premium 5500 (this) | 87584 | 5,500 GPH | 160W | 2.4A | Medium-large |
Frequently Asked Questions
How much water does the AquaMax Eco Premium 5500 move at various head heights?
The AquaMax Eco Premium 5500 delivers 5,500 GPH at open flow (0 ft head). Performance at operating head heights is shown in the gallery flow chart image. For verified performance values at 5 ft and 10 ft head, refer to the official Oase specification sheet available at store.atlantic-oase.com.
For waterfall sizing, Oase recommends matching pump output at your waterfall’s head height (not open flow) to the waterfall width for desired visual effect. Call (765) 508-4352 for help sizing your waterfall configuration.
What is Pulse 6 Technology and how does it benefit my pond?
Pulse 6 Technology is Oase’s current-generation motor design for the AquaMax Eco Premium series. It features a motor with additional magnets compared to the previous generation, which:
- Creates 35% greater energy efficiency vs the previous AquaMax generation
- Reduces vibration — the additional magnets create smoother rotation, resulting in less noise and wear
- Enables precise Seasonal Flow Control — the synchronous motor can precisely vary its speed, something asynchronous motors cannot do as effectively
The Pulse 6 motor is a synchronous electronic motor, meaning the rotor speed is electronically controlled rather than determined purely by line frequency. This allows for efficient operation across the full speed range, not just at full power.
How does the secondary intake and suction regulator work?
The AquaMax Eco Premium 5500 features a dual-intake design with a second inlet that accepts an optional Oase Satellite Filter or AquaMax Satellite skimmer connection.
The mechanical flow regulator adjusts the secondary intake from 0% to 100% suction in four stages:
- At 0%: all suction from the primary in-pond intake
- At 50%: equal suction from both intake points
- At 100%: all suction drawn through the satellite filter connection
This configuration allows a single pump to service two areas of the pond — eliminating stagnant dead zones and delivering debris from multiple points to the same filtration system.
Can I leave the AquaMax 5500 in the pond during winter?
Yes. The AquaMax Eco Premium 5500 includes Oase’s patented frost protection that prevents freeze damage down to -4°F (-20°C). The pump can remain in the pond year-round in climates with winter temperatures above -4°F.
The Seasonal Flow Control (SFC) works in concert with frost protection — as water temperature drops to 40°F, the pump automatically reduces flow and wattage by up to 50%, matching reduced fish activity and metabolic needs while continuing to circulate the water and maintain gas exchange at the pond surface. SFC can be manually deactivated if full flow is desired regardless of temperature.
What does Environmental Function Control (EFC) do?
Environmental Function Control (EFC) is Oase’s automatic pump protection system. If the pump:
- Runs dry (basin water level drops below the pump) — EFC detects reduced water and shuts the motor down before overheating damage occurs
- Becomes clogged — EFC detects the increased motor load and shuts down before burnout
The motor automatically resets once the condition clears. This protection, combined with the synchronous electronic motor design, makes the AquaMax Eco Premium significantly more resistant to the burnout failures common in direct-drive and asynchronous pumps.
How do I get the 5-year warranty for this pump?
The AquaMax Eco Premium 5500 includes a standard 3-year limited warranty. To extend this to the full 5-year warranty (3+2), simply register your product at Oase North America’s website within 90 days of purchase. Registration is free and takes approximately 2 minutes.
The 5-year warranty is the industry’s strongest coverage for a pond pump at this price point. Contact Pond Pro Direct at (765) 508-4352 if you need warranty assistance or have questions about product registration.
Why Buy Oase Products from Pond Pro Direct?
- Authentic Oase products with full 5-year warranty coverage
- System design expertise — call Mon–Fri 9 AM–5 PM EST for filter pairing and Clear Water Guarantee system configurations
- Price Match on identical products from authorized Oase retailers
Oase AquaMax Eco Premium 5500 (87584) — 5,500 GPH | synchronous electronic | Pulse 6 | 160W | 2.4A | 120V | 20 ft cord | 2" inlet/outlet | adapters included | dual intake | SFC (50% savings in winter) | EFC | grounding plate | frost-proof -4°F | OC port | submersible or inline | not for pools/salt water | GFCI required | 5-year warranty (3+2 registration) | Made in Germany.
Questions about filter pairing, system sizing, or Oase product compatibility? Call or text (765) 508-4352 — Monday through Friday, 9 AM to 5 PM EST.
