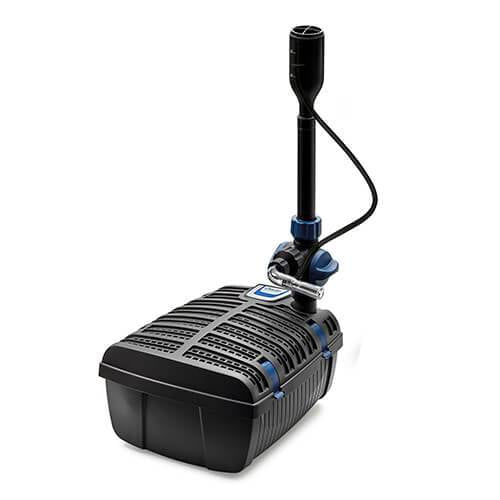

OASE Filtral UVC 800 Pond Filter with Pump
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The OASE Filtral UVC 800 (SKU 76005) is a compact, all-in-one submersible pond filter that integrates a 235 GPH pump, 9W EPA-registered UV clarifier, and four-type filter media system into a single unit measuring just 10.5” × 9.5” × 5.5”. It sits discreetly on the pond floor, connects to a 15-foot power cord, and handles decorative ponds up to 800 gallons (or up to 400 gallons with a normal goldfish/fish load).
Three interchangeable fountain nozzles (Lava, Vulkan, Magma) create display water effects, while the included diverter valve routes flow to an optional secondary waterfall or stream feature. An aeration nozzle (available on 800 and 1600 models only) injects oxygen to support beneficial bacteria. OASE’s integrated grounding plate provides continuous electrical safety protection, and the UVC viewing window lets you confirm UV lamp operation at a glance. Backed by a 2-year warranty.
Pond Capacity Ratings
| Application | Maximum Pond Volume | Notes |
|---|---|---|
| Decorative / No Fish | 800 gallons | Plants, statues, ornamental features |
| Goldfish / Light Fish Load | 400 gallons | Normal goldfish stocking levels |
| Heavy Fish / Koi | Not recommended | Step up to Filtral 1600 or larger external filter |
Key Features & Benefits
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 76005 |
| Pond Capacity (decorative) | Up to 800 gallons |
| Pond Capacity (fish stock) | Up to 400 gallons |
| Pump Flow Rate | 235 GPH |
| Maximum Head Height | 4 ft |
| UVC Wattage | 9W (EPA-registered) |
| Total System Wattage | 22W |
| Voltage | 110–120V / 60Hz |
| Power Cord | 15 ft |
| Dimensions (L × W × H) | 10.5” × 9.5” × 5.5” |
| Filter Media (4 types) | 2 filter foams + bio-media elements + filter pebbles |
| Included Nozzles | Lava + Vulkan + Magma (3 fountain types) |
| Telescoping Nozzle Tube | Pivoting, extends 5” |
| Aeration Nozzle | Included (800 & 1600 only) |
| Diverter Valve | Yes — flow control + secondary water feature port |
| Grounding Plate | Yes — integrated electrical safety |
| UVC Viewing Window | Yes — visual UV lamp status confirmation |
| Not Approved For | Swimming pools or saltwater |
| Electrical Safety | GFCI-protected 120V outlet required |
| Warranty | 2 years |
OASE Filtral UVC Family
| Model | SKU | Pond (Decorative) | Pump GPH | UV Watts | Total Watts | Max Head |
|---|---|---|---|---|---|---|
| Filtral UVC 400 | 76004 | 400 gal | 195 GPH | 5W | 20W | 4 ft |
| Filtral UVC 800 ← This | 76005 | 800 gal | 235 GPH | 9W | 22W | 4 ft |
| Filtral UVC 1600 | 76006 | 1,600 gal | 410 GPH | 13W | 50W | 6 ft |
Aeration nozzle included on 800 and 1600 only. All models include grounding plate, UVC viewing window, easy-open clips, diverter valve, and 3 fountain nozzles. All carry a 2-year warranty. 15 ft power cord across all three models. For ponds over 800 gallons or with heavier koi loads, step up to the Filtral UVC 1600 (SKU 76006).
Frequently Asked Questions
What is the maximum pond capacity for the OASE Filtral UVC 800?
The OASE Filtral UVC 800 (SKU 76005) is rated for:
- Decorative ponds (no or minimal fish): up to 800 gallons
- Goldfish ponds / light fish load: up to 400 gallons
- Koi ponds or heavy fish loads: not recommended — consider the Filtral UVC 1600 or an external pressurized filter
The 9W UV clarifier is sized appropriately for the 800-gallon decorative rating. Ponds with fish produce significantly more biological waste, which both increases UV demand and reduces effective filtration capacity.
Is the pump and UVC clarifier included in this kit?

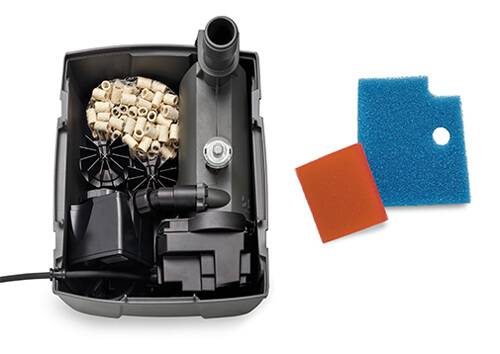

Yes. The OASE Filtral UVC 800 is a complete 4-in-1 system including:
- 235 GPH integrated pump
- 9W EPA-registered UV clarifier for green water control
- Mechanical filtration: two filter foams that capture debris
- Biological filtration: bio-media elements and filter pebbles providing surface area for nitrifying bacteria
- Three fountain nozzles (Lava, Vulkan, Magma) plus the aeration nozzle for oxygen injection
Total system draw: 22 watts. Requires a GFCI-protected 120V outlet. 15 ft power cord included.
How does the integrated aeration nozzle benefit my pond?
The Filtral 800 includes a Venturi aeration nozzle that draws ambient air into the pump discharge stream, creating fine oxygen bubbles. This is available on the 800 and 1600 models only — not the 400. Benefits include:
- Improved nitrification: nitrifying bacteria require dissolved oxygen; increased aeration directly improves the biological filter’s ammonia and nitrite conversion efficiency
- Fish health: dissolved oxygen supports fish respiration, especially critical during hot summer weather when oxygen levels drop naturally
- Circulation: the rising bubble column creates gentle surface agitation that helps prevent stratification and stagnation
Can I run a fountain and waterfall simultaneously?
Yes. The integrated diverter valve (T-piece) splits pump output between the fountain nozzle assembly and a secondary outlet port. Both outlets have independent flow control to adjust the balance between the two displays. The secondary outlet is compatible with the included stepped hose adapter for common tubing sizes.
Important: the Filtral 800 has a 4-foot maximum head height. This limits the secondary waterfall outlet to very low-rise cascades (spitters, short wall drops, rock cascades) rather than elevated waterfall installations. For waterfall heads above 4 ft, an external pump is required.
How easy is it to maintain the Filtral 800?
The Filtral 800 is designed for easy access maintenance:
- Easy-open clips release the filter housing without tools, without removing the nozzle assembly
- Rinse filter foams in a bucket of pond water (not chlorinated tap water) to remove accumulated debris
- Check bio-media — the ceramic and bio-media elements rarely need replacement but should be inspected seasonally
- UVC viewing window — check the indicator at the top of the unit to confirm the UV lamp is active without any disassembly
UV lamp lifespan is typically one season (approximately 3,000–4,000 hours). Replace the UV bulb at the start of each season for reliable green-water control throughout summer.
