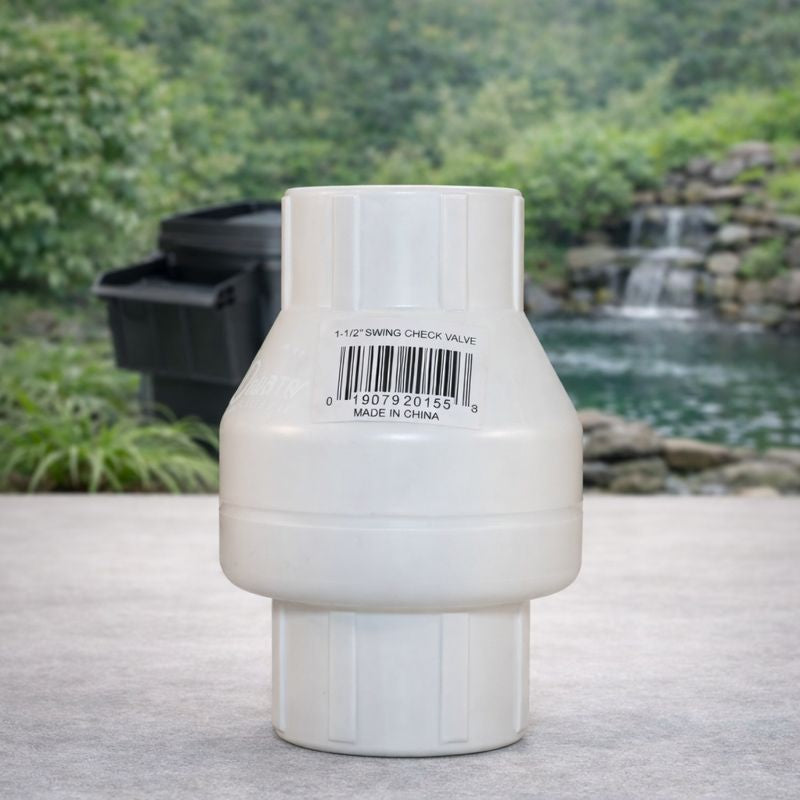

Valterra Swing Check Valve – 1.5" Slip x Slip | Pond & Water Feature Backflow Prevention
✓ 30-Day Return Period
✓ Price Match - We will Beat Lower Prices!
✓ Secure Encrypted Checkout
✓ Questions? - Call (765) 508-4352
Description
The Valterra 1.5" Swing Check Valve – Slip×Slip (SKU 70385, MPN 200-C15) is a clear Schedule 40 PVC swing/spring combination check valve for pond pump discharge lines, waterfall plumbing, pressurized filter lines, and backflow prevention in 1-1/2" plumbing systems. The 1/2 lb return spring enables installation in horizontal or vertical (upward flow) orientations. Rated to 150 PSI maximum working pressure. EPDM-sealed for outdoor chemical and UV resistance.
The transparent PVC body is a practical advantage — visually confirm the disc is fully open during pump operation and fully seated when the pump shuts off, without removing the valve. Solvent-weld slip connections provide a permanent bond to Schedule 40 or 80 PVC pipe.
Key Features & Benefits
Technical Specifications
| Specification | Value |
|---|---|
| SKU (PPD) | 70385 |
| Valterra MPN | 200-C15 |
| Connection Type | 1-1/2” Slip × Slip (solvent-weld) |
| Body Material | Clear Schedule 40 PVC |
| Valve Type | Swing/Spring Combination Check Valve |
| Seal Material | EPDM (ethylene propylene diene monomer) |
| Spring Tension | 1/2 lb |
| Max Working Pressure | 150 PSI at 73°F |
| Compatible Pipe | 1-1/2” Schedule 40 or Schedule 80 PVC |
| Installation Positions | Horizontal • Vertical (upward flow only) |
| Vertical Downward Flow | NOT suitable — disc will remain open |
Installation Orientation Guide
| Orientation | Flow Direction | Suitability | Notes |
|---|---|---|---|
| Horizontal | Either (follow arrow) | ✅ Preferred | Most common pond installation. Spring ensures reliable closure. Orient hinge pin at top (12 o'clock). |
| Vertical | Upward only ↑ | ✅ Suitable | Flow pushes disc open; gravity + spring close on shutdown. Follow flow arrow. |
| Vertical | Downward ↓ | ❌ Not suitable | Gravity holds disc permanently open. No backflow prevention. Will not function as intended. |
Valterra Swing/Spring Check Valve Family
| Size | MPN | SKU (PPD) | Connection |
|---|---|---|---|
| 1-1/2” ← This | 200-C15 | 70385 | Slip × Slip |
| 2” | 200-C20 | 70387 | Slip × Slip |
Frequently Asked Questions
Why is a swing check valve necessary for pond pumps?
A check valve on the pump discharge prevents three specific failure modes:
- Reverse flow damage: When the pump stops, the water column in the discharge line reverses direction. Without a check valve, this reverse flow spins the pump impeller backward, potentially loosening it or damaging the shaft seal.
- Siphoning: In systems where the discharge line runs above the water level (most waterfall returns), the line siphons continuously when the pump is off, draining the waterfall reservoir and sometimes the pond itself. The check valve stops siphoning immediately on pump shutdown.
- Water hammer: The abrupt reversal of a water column creates a pressure surge. The check valve's spring-assisted rapid closure stops the reverse column before it builds pressure, protecting fittings and equipment.
Can the Valterra 1.5" Check Valve be installed vertically?
Yes — but only with upward flow. The 200-C15's swing/spring design enables multi-position installation:
- ✅ Vertical with upward flow: Water flowing upward pushes the disc open; when flow stops, gravity and the 1/2 lb spring pull the disc back to its seat. Follow the flow arrow on the valve body — it must point upward.
- ❌ Vertical with downward flow — NOT suitable: Gravity holds the disc permanently open, defeating all backflow prevention. Never install with the flow arrow pointing downward in a vertical run.
- ✅ Horizontal: The most common and preferred pond pump installation. Hinge pin at the 12 o'clock position for optimal disc swing.
Does this check valve significantly reduce water flow (GPH)?
The Valterra 200-C15 is designed for low flow restriction. The swing disc opens fully with forward flow, presenting minimal obstruction to the 1.5" bore. The 1/2 lb spring tension is light enough to open with typical pond pump discharge pressure — the "cracking pressure" (minimum pressure required to open the disc) is very low, ensuring the pump maintains near-full GPH through the valve. In practical pond plumbing, the head loss across this valve is negligible compared to the head loss from friction in the discharge line itself.
Is the Valterra valve compatible with Schedule 40 PVC?
Yes — the 1.5" slip sockets accept standard Schedule 40 or Schedule 80 PVC pipe (both use the same outer diameter). Installation requires PVC primer and medium-body PVC cement:
- Cut pipe square and deburr the end
- Dry-fit the valve to confirm orientation and flow direction (arrow pointing downstream)
- Apply PVC primer to pipe end and valve socket; allow to tack (approximately 15 seconds)
- Apply PVC cement to pipe end and socket; push pipe fully into socket with a 1/4 turn
- Hold firmly for 30 seconds; do not pressurize for at least 30 minutes
How do I maintain or clean the internal flapper?
The clear PVC body is your primary maintenance tool — inspect the disc visually through the transparent body without any disassembly:
- During pump operation: disc should be fully open and stable (not fluttering)
- On pump shutdown: disc should snap fully closed within a second or two
- Disc stuck open: likely debris (algae, sediment) on the seat. Consider installing a pump pre-filter to prevent organic material from entering the discharge line
- Disc chattering: flow velocity may be insufficient; the pump may be undersized for the 1.5" bore or operating at low head
For long-term outdoor installations, ensure the valve is not in direct UV sunlight if possible (install inside a pump vault or shaded area) to maximize EPDM seal life.
