Measurement Guide · Updated 2026
The liner formula is simple: liner length = pond length + (2 × maximum depth) + 2 feet of overlap, and the same for width. An 11′×16′ pond dug 2 feet deep needs a 17′×22′ liner by the math — round up to the next standard sheet, 20′×25′. For gallons: length × width × average depth × 7.48, then multiply by 0.8 for irregular natural shapes. One honest wrinkle no liner seller explains: kit liners run smaller than the formula says — a typical 11′×16′ kit ships a 15′×20′ liner — because kits assume tiered shelf profiles that consume less liner than a uniform-depth box. If you're digging full-depth walls, or building for koi at 3 feet, size by the formula and buy the bigger liner, whatever the kit box claims.
Quick Answer

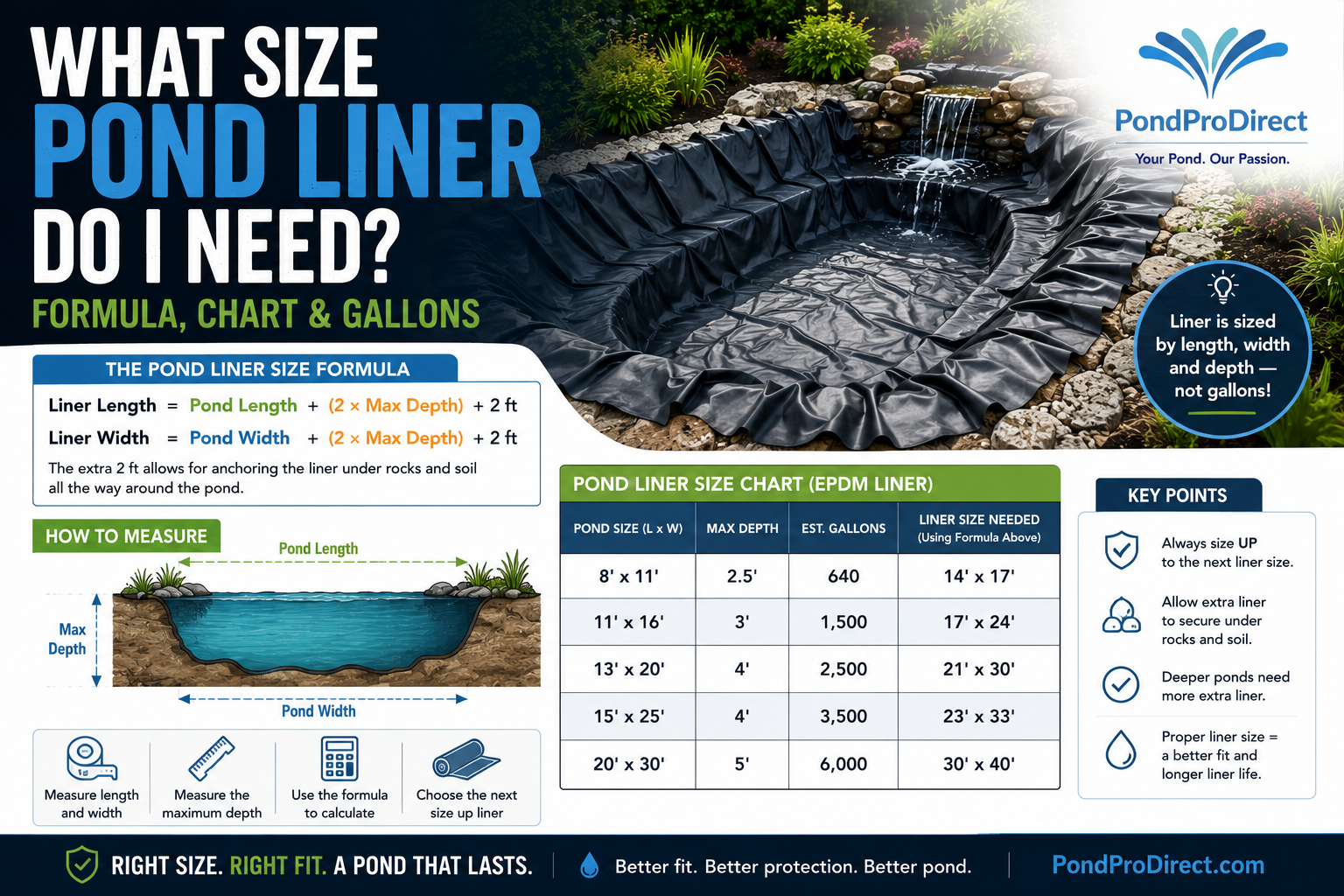

Liner length = pond length + (2 × max depth) + 2 ft · Liner width = pond width + (2 × max depth) + 2 ft
The depth counts twice because the liner travels down one wall and up the other; the 2 feet gives a 1-foot anchoring overlap on each side — never skip it, because the perimeter overlap is what your edge rock pins down. Example: 11′×16′ pond, 2 ft deep → (11+4+2) × (16+4+2) = 17′ × 22′ → buy a 20′×25′ sheet.
EPDM sheets come in 5-foot increments, so you'll almost always round up — and up is correct. Trimmed excess costs a few dollars; a liner one foot short is a full replacement, because EPDM cannot be reliably stretched or invisibly extended — field seams are possible but are the most common DIY leak point, so a single oversized sheet beats a seamed pair every time. One measuring trap: measure depth to the top of the edge rock, not the water line you're imagining — the liner has to climb behind the rock border.
Formula-sized liners for uniform-depth digs, the kit liner typically shipped for the same footprint, and realistic shelved-profile volumes. The two liner columns differ on purpose — that's the section below.
| Pond footprint | Formula liner (2 ft uniform depth) | Standard sheet to buy | Typical kit liner | Realistic gallons (shelved) |
|---|---|---|---|---|
| 6′×6′ | 12′×12′ | 10′×15′ or 15′×15′ | 10′×10′ class | ~400 |
| 8′×11′ | 14′×17′ | 15′×20′ | 12′×15′ class | ~1,000–1,300 |
| 11′×11′ (18″ deep) | 16′×16′ | 15′×15′ fits at this depth | 15′×15′ (e.g., Atlantic PK191515) | ~1,400 |
| 11′×16′ | 17′×22′ | 20′×25′ | 15′×20′ (shelved, ~18–24″ profile) | ~1,800–2,200 |
| 12′×12′ | 18′×18′ | 20′×20′ (e.g., EasyPro BPL2020) | — | 2,100–2,500 (per liner spec) |
| 16′×21′ | 22′×27′ | 25′×30′ | 20′×25′ class | ~3,800 |
Realistic gallons assume tiered shelves and the stated footprint; your dig will vary. The 12′×12′ row's volume comes straight from our BPL2020 liner listing — every liner we sell states its buildable pond size the same way.
Run the formula on an 11′×16′ pond at 2 feet and you get 17′×22′. Open an 11′×16′ kit and you'll find a 15′×20′ liner. Liner manufacturers have publicly criticized this gap, and the criticism deserves a straight answer rather than silence: both numbers are right — for different ponds.
The formula assumes a uniform-depth box: straight walls, full depth wall to wall. Ecosystem kits assume a tiered shelf profile — a plant shelf at 8–12 inches around much of the perimeter, stepping to the full depth only in the center. Shelved walls consume dramatically less liner than vertical ones, which is how a 15′×20′ sheet honestly builds an 11′×16′ shelved pond with an 18–24 inch center depth and proper edge overlap.
Where the criticism lands is when the kit's assumption isn't your plan: if you want uniform 2-foot-plus depth, minimal shelving, or a koi profile at 3 feet, the kit's liner is genuinely too small for your dig. In that case size by the formula, buy the larger sheet separately, and treat the kit as equipment — we sell every standard EPDM size precisely because kit liners fit kit-profile ponds, not every pond. We'd rather sell you one correct liner than field the "my liner is a foot short" call, which is unfixable by anything except a second liner.
Rectangle: length × width × average depth × 7.48
Round: 3.14 × radius² × average depth × 7.48
Natural/irregular: compute as a rectangle, then × 0.8
The mistake in nearly every wrong pond-volume number is using maximum depth instead of average depth. A shelved ecosystem pond's average depth runs roughly 60–75% of its deepest point, so an "11×16, two feet deep" pond holds ~1,800–2,200 gallons, not the 2,600 the max-depth math produces. This matters more than pride: your gallon figure drives every treatment dose, the pump's turnover target, and your safe fish load — and overstating volume by 30% means overdosing everything you ever pour in by 30%, which for some treatments is the difference between working and harming fish.
The exact method beats every formula: read your water meter immediately before and after the first fill (pause other household water use). That number is your pond's true volume — write it inside the skimmer lid with a paint pen, because you'll need it for every spring dose for the next twenty years.
Skip the arithmetic entirely.
Enter your dimensions in our free calculator and get liner size, gallons, and a matched kit recommendation in 60 seconds.
Calculate My Pond →1. It's sized to the formula's raw output instead of the next sheet up. A 17′×22′ requirement means a 20′×25′ purchase. Buying "close" is buying twice.
2. It's two smaller sheets you plan to seam. Field seams are the most common DIY leak point, and they fail under two tons of rock where repair means partial rebuild. One oversized sheet, always, until your pond exceeds the largest standard size.
3. It's thinner than 45-mil EPDM and going under rock. PVC and thin-mil liners belong in preformed and small decorative features, not under boulders. The liner is the one component you cannot access after the build — buy it once, correctly.
4. It's the kit liner, but your plan is koi depth or vertical walls. Per the section above: the kit liner fits the kit's shelf profile. A different dig needs the formula's answer, not the box's.
How do I measure for a pond liner?
Take the pond's maximum length, maximum width, and maximum depth in feet, then add twice the depth plus 2 feet to both the length and the width. The depth counts twice because the liner travels down one side and up the other; the extra 2 feet gives a 1-foot anchoring overlap on each edge.
How many gallons is my pond?
Length × width × average depth × 7.48 for rectangles; 3.14 × radius² × depth × 7.48 for round ponds; multiply irregular shapes by 0.8. Use average depth, not maximum — a shelved pond averages roughly 60–75% of its deepest point. For an exact figure, read your water meter before and after the first fill.
Can I stretch or join pond liner if it's too small?
EPDM doesn't stretch meaningfully, and while field seaming is possible with primer and seam tape, seams are the most common DIY leak point and sit unrepairable under your rock. A liner that comes up short is, in practice, a replacement — which is why the rule is always round up to the next standard sheet.
Why is the liner in my pond kit smaller than the formula says I need?
Kit liners assume a tiered shelf profile — plant shelves around the perimeter stepping to full depth only in the center — which consumes far less liner than uniform-depth walls. The kit liner honestly builds the kit's shelved pond; if your plan is uniform depth or a 3-foot koi profile, size by the formula and buy the larger sheet separately.
Does liner size include the stream and waterfall?
No — the pond liner covers the pond only. Streams and waterfall courses use separate stream liner, sized to the course's length and width plus a foot of rise on each bank, and they overlap into the pond liner shingle-style, upper over lower, so water always crosses seams downhill.
Every Standard EPDM Size, Fish-Safe, 45-Mil
Each listing states the pond size it honestly builds and the gallons it holds — the same convention as this guide.
Shop Pond Liners & Underlayment →Odd shape, split levels, or a long stream? Send us a sketch with dimensions and we'll size the liner for you in 24 hours, free — or call (765) 508-4352.
